BF2.3 DH SCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) ENGINE COVER Parts Diagram

Outboard Engine, Made in China

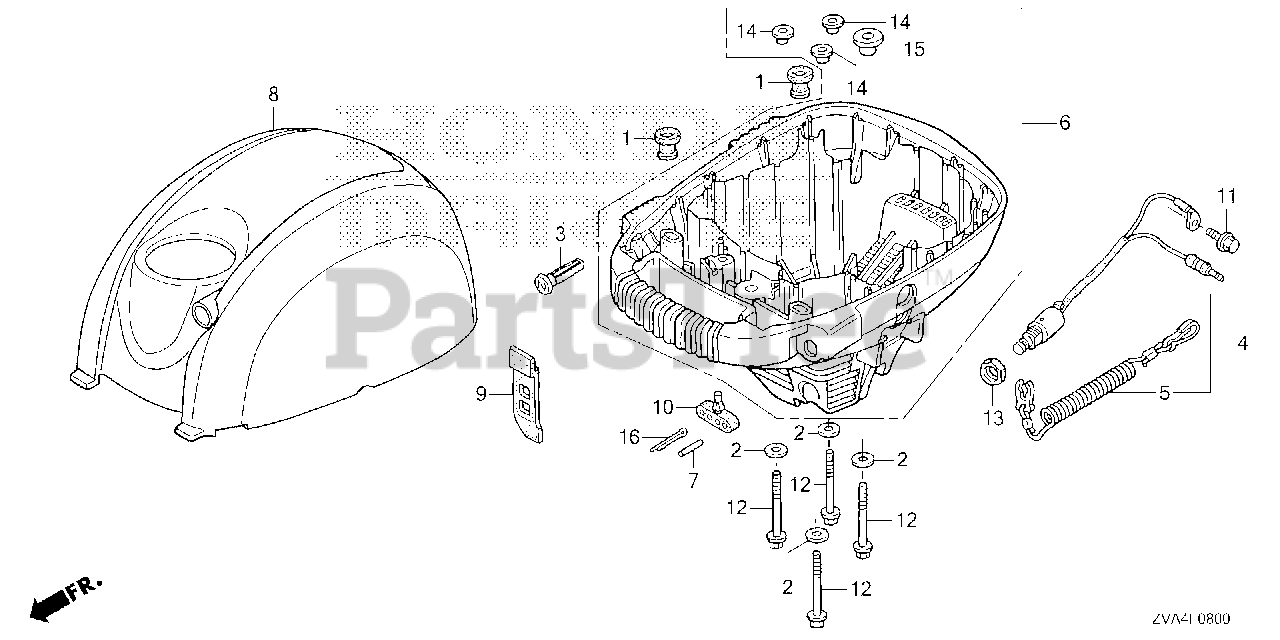

ENGINE COVER Parts Diagram

  • Title

1

Honda 17514-ZVA-000

RUBBER, TANK MOUNTING (C)

$2.99

$

Usually ships in 3-6 days

0

2

Honda 17936-ZVA-000

WASHER, PLAIN (6MM)

$1.99

$

Usually ships in 3-6 days

0

3

Honda 17951-ZVA-000

KNOB, CHOKE

$9.49

$

Usually ships in 3-6 days

0

4

Honda 35180-ZW6-023

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

$84.99

$

Usually ships in 3-6 days

0

5

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 40100-ZVA-000

SEE PART DETAILS - PRI; CASE, ENGINE (LOWER)

$86.99

$

Usually ships in 3-6 days

0

7

Honda 58131-ZV0-000

PIN, SHEAR

$4.99

$

In Stock, only 2 left!

0

8

Honda 63100-ZVA-010ZA

COVER, ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC)

$167.99

$

Usually ships in 3-6 days

0

9

Honda 63103-ZVA-000

SEE PART DETAILS - PRI; BELT, ENGINE COVER
(Superseded to 63103-ZVA-010)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 88111-ZVA-000

HOLDER, PARTS

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90019-ZW4-000

BOLT, FLANGE (5X10) (CT200)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90103-ZVA-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X60)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90303-ZVA-000

NUT, HEX. (16MM)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91551-ZVA-000

COLLAR (6X4)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 91552-ZVA-000

COLLAR, ENGINE CASE (LOWER)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 94201-30402

SEE PART DETAILS - PRI; PIN, SPLIT (3.0)

$2.99

$

Usually ships in 3-6 days

0
