BF2.3 DH LCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) GEAR CASE@PROPELLER Parts Diagram

Outboard Engine, Made in China

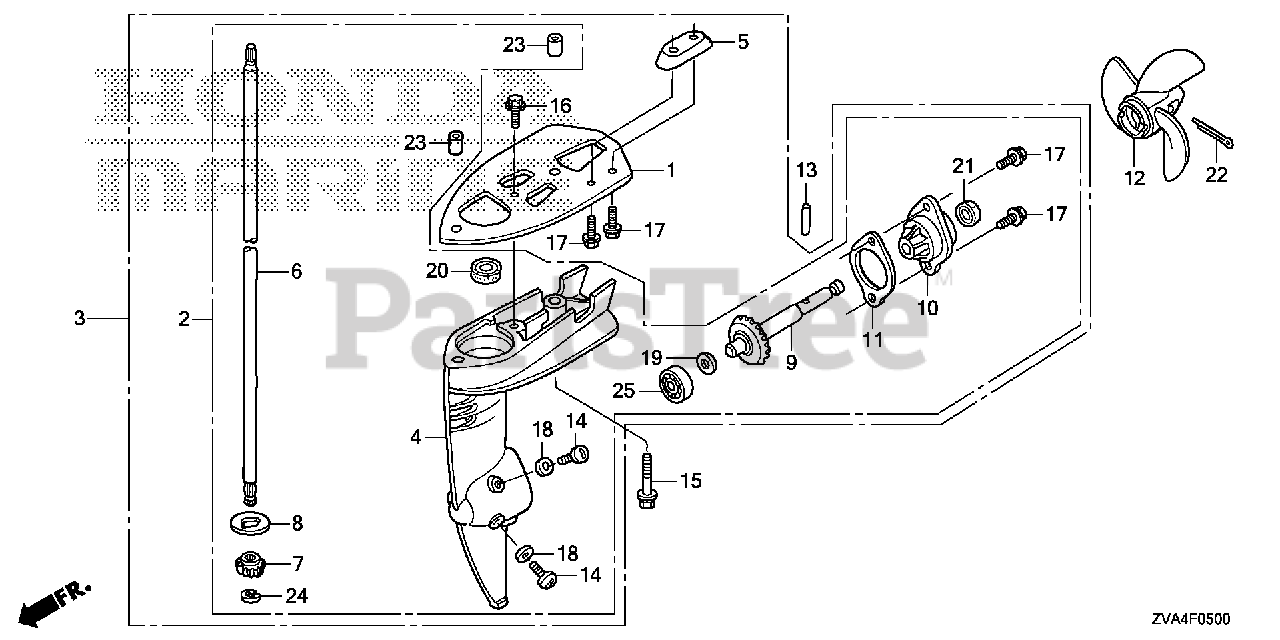

GEAR CASE@PROPELLER Parts Diagram

  • Title

1

Honda 40205-ZVA-000ZA

PLATE, CAVITATION *NH246* (LOOSY GRAY)

$75.99

$

Usually ships in 3-6 days

0

3

Honda 41005-ZVA-610ZA

CASE ASSY., GEAR *NH246* (L) (LOOSY GRAY)

$583.99

$

Usually ships in 3-6 days

0

4

Honda 41100-ZVA-000ZA

CASE, GEAR *NH246* (LOOSY GRAY)

$293.99

$

Usually ships in 3-6 days

0

5

Honda 41106-ZVA-000

METAL, ANODE

$22.99

$

Usually ships in 3-6 days

0

5

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$22.99

$

Usually ships in 3-6 days

0

6

Honda 41112-ZW6-C10

SEE PART DETAILS - PRI; SHAFT, VERTICAL (L)

$155.99

$

Usually ships in 3-6 days

0

7

Honda 41131-ZVA-000

GEAR, PINION

$46.99

$

Usually ships in 3-6 days

0

8

Honda 41135-ZVA-000

WASHER, PINION THRUST

$10.99

$

Usually ships in 3-6 days

0

9

Honda 41160-ZVA-000

SHAFT, PROPELLER

$143.99

$

Usually ships in 3-6 days

0

10

Honda 41200-ZW6-C10ZA

SEE PART DETAILS - PRI; HOLDER ASSY., PROPELLER SHAFT *NH246* (LOOSY GRAY)

$70.99

$

Usually ships in 3-6 days

0

11

Honda 41281-ZVA-000

SEE PART DETAILS - PRI; GASKET, PROPELLER SHAFT HOLDER

$2.99

$

Usually ships in 3-6 days

0

12

Honda 58130-ZV0-841ZB

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE *NH283* (STIN GRAY)

$63.99

$

Usually ships in 3-6 days

0

13

Honda 58131-ZV0-000

PIN, SHEAR

$4.99

$

In Stock, only 2 left!

0

14

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$5.99

$

In Stock, only 2 left!

0

15

Honda 90109-ZVA-000

BOLT-WASHER (6X35)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90112-ZVA-000

BOLT, FLANGE (6X12)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90113-ZVA-000

BOLT, FLANGE (6X16)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90507-ZVA-000

WASHER, NYLON (8MM)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90531-ZVA-000

WASHER, GEAR

$8.49

$

Usually ships in 3-6 days

0

20

Honda 91251-ZV0-003

SEAL, WATER (22X21X8)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 91253-ZV0-003

SEAL, WATER (11X21X8)

$9.49

$

Usually ships in 3-6 days

0

22

Honda 94201-30402

SEE PART DETAILS - PRI; PIN, SPLIT (3.0)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

24

Honda 94540-06018

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 96100-60000-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6000)

$11.99

$

Usually ships in 3-6 days

0
