BF2.3 DH LCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in China

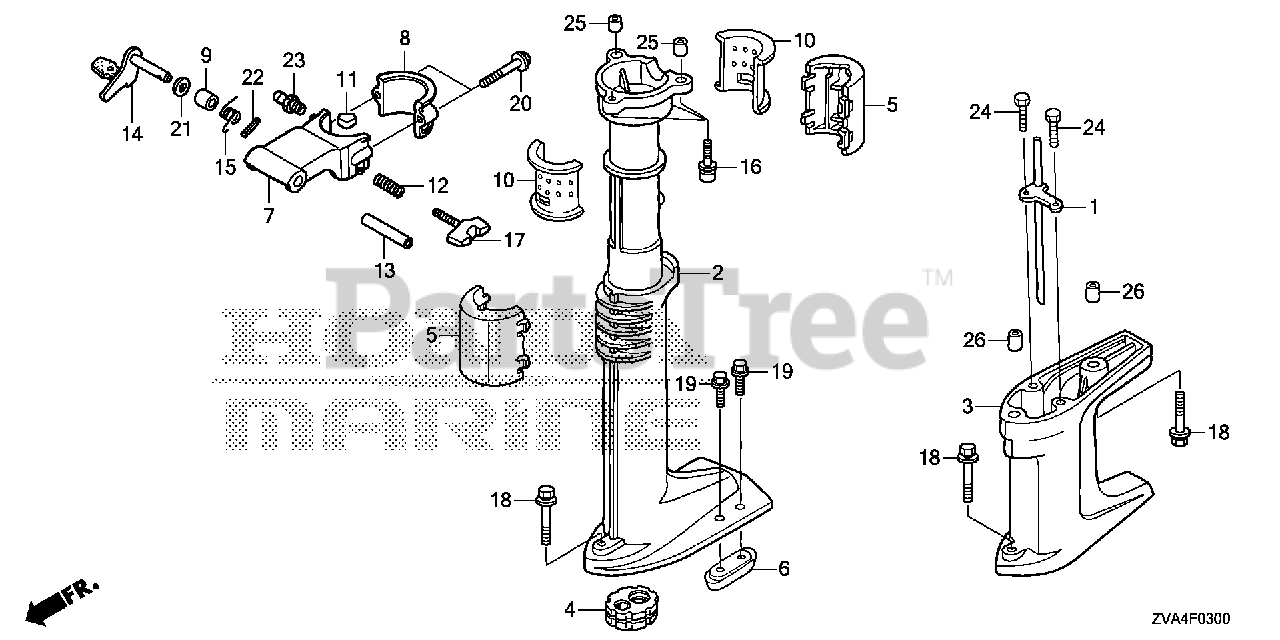

EXTENSION CASE Parts Diagram

  • Title

1

Honda 19250-ZVA-610

TUBE, WATER

$25.99

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW6-C00ZA

CASE, EXTENSION *NH246* (LOOSY GRAY)

$381.99

$

Usually ships in 3-6 days

0

3

Honda 40202-ZW6-C00ZA

SEE PART DETAILS - PRI; SEPARATOR, EXTENSION *NH246* (LOOSY GRAY)

$267.99

$

Usually ships in 3-6 days

0

4

Honda 40210-ZVA-610

BUSH, VERTICAL SHAFT (L)

$38.99

$

Usually ships in 3-6 days

0

5

Honda 40218-ZVA-000

PROTECTOR, EXTENSION

$9.99

$

Usually ships in 3-6 days

0

7

Honda 50201-ZW6-C00ZA

CASE, SWIVEL *NH246* (LOOSY GRAY)

$75.99

$

Usually ships in 3-6 days

0

8

Honda 50203-ZVA-000ZA

CAP, SWIVEL CASE *NH246* (LOOSY GRAY)

$59.99

$

Usually ships in 3-6 days

0

9

Honda 50204-ZVA-000

COLLAR, SWIVEL CASE

$4.49

$

Usually ships in 3-6 days

0

10

Honda 50211-ZVA-000

LINER, SWIVEL CASE

$7.49

$

Usually ships in 3-6 days

0

11

Honda 50212-ZVA-000

SEE PART DETAILS - PRI; BLOCK, FRICTION

$5.99

$

Usually ships in 3-6 days

0

12

Honda 50233-ZVA-000

SPRING, FRICTION ADJUSTING

$3.49

$

Usually ships in 3-6 days

0

13

Honda 50337-ZVA-000

COLLAR, DISTANCE

$11.99

$

Usually ships in 3-6 days

0

14

Honda 50511-ZVA-000

ARM, TILT LOCK

$16.99

$

Usually ships in 3-6 days

0

15

Honda 50516-ZVA-000

SEE PART DETAILS - PRI; SPRING, TILT LOCK

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90104-ZVA-000

SEE PART DETAILS - PRI; BOLT-WASHER, SOCKET (6X30)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90106-ZVA-000

BOLT, SWIVEL CASE

$10.99

$

Usually ships in 3-6 days

0

18

Honda 90109-ZVA-000

BOLT-WASHER (6X35)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90114-ZVA-000

BOLT, FLANGE (8X35)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90518-ZVA-000

WASHER, PLAIN (8MM)

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90752-ZVA-000

PIN, SPRING (2.5X20)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

24

Honda 92101-05016-4J

SEE PART DETAILS - PRI; BOLT, HEX. (5X16)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0
