BF2.3 DH LCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) CLUTCH Parts Diagram

Outboard Engine, Made in China

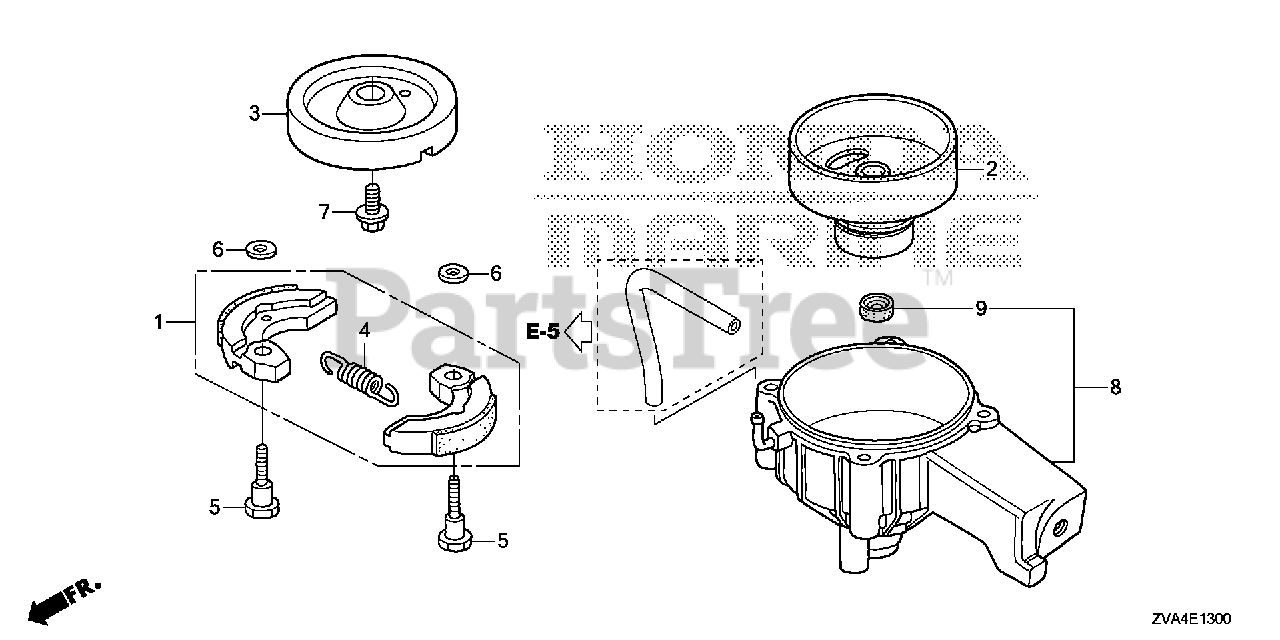

CLUTCH Parts Diagram

  • Title

1

Honda 22000-ZVA-003

CLUTCH ASSY.

Note: Use from Engine SN 1021189.

$38.99

$

Usually ships in 3-6 days

0

1

Honda 22000-ZW6-701

CLUTCH ASSY.
(Superseded to 22000-ZVA-003)

Note: Use up to Engine SN 1021188.

$38.99

$

Usually ships in 3-6 days

0

2

Honda 22100-ZVA-000

CLUTCH OUTER ASSY.

$100.99

$

Usually ships in 3-6 days

0

2

Honda 22100-ZW6-704

CLUTCH OUTER ASSY.
(Superseded to 22100-ZVA-000)

Note: Use up to Engine SN 1019953.

$100.99

$

Usually ships in 3-6 days

0

3

Honda 22214-ZVA-000

STAY, CLUTCH

$51.99

$

Usually ships in 3-6 days

0

3

Honda 22214-ZW6-703

STAY, CLUTCH
(Superseded to 22214-ZVA-000)

Note: Use up to Engine SN 1021179.

$51.99

$

Usually ships in 3-6 days

0

4

Honda 22252-ZVA-003

SPRING, CLUTCH SHOE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 22252-ZW6-701

SPRING, CLUTCH SHOE
(Superseded to 22252-ZVA-003)

Note: Use up to Engine SN 1021188.

$10.99

$

Usually ships in 3-6 days

0

5

Honda 22253-ZVA-000

BOLT, CLUTCH (8MM)

Note: Use from Engine SN 1023756.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 22253-ZW6-700

BOLT, CLUTCH (8MM)
(Superseded to 22253-ZVA-000)

Note: Use up to Engine SN 1023755.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 22254-ZVA-000

WASHER, PLAIN (8MM)

Note: Use from Engine SN 1020721.

$2.49

$

Usually ships in 3-6 days

0

6

Honda 22254-ZW6-700

WASHER, PLAIN (8MM)
(Superseded to 22254-ZVA-000)

Note: Use up to Engine SN 1020720.

$2.49

$

Usually ships in 3-6 days

0

7

Honda 22255-ZVA-000

BOLT, CLUTCH STAY (8MM)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 22260-ZVA-000

SEE PART DETAILS - PRI; HOUSING ASSY., CLUTCH

$90.99

$

Usually ships in 3-6 days

0

9

Honda 91251-ZW6-013

SEE PART DETAILS - PRI; SEAL, WATER (11X21X8)

$11.99

$

In Stock, only 1 left!

0
