BF175 AK1 XCA (BAKJ) - Honda Marine Engine, Made in Japan (SN: BAKJ-1300001 - BAKJ-9999999) WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

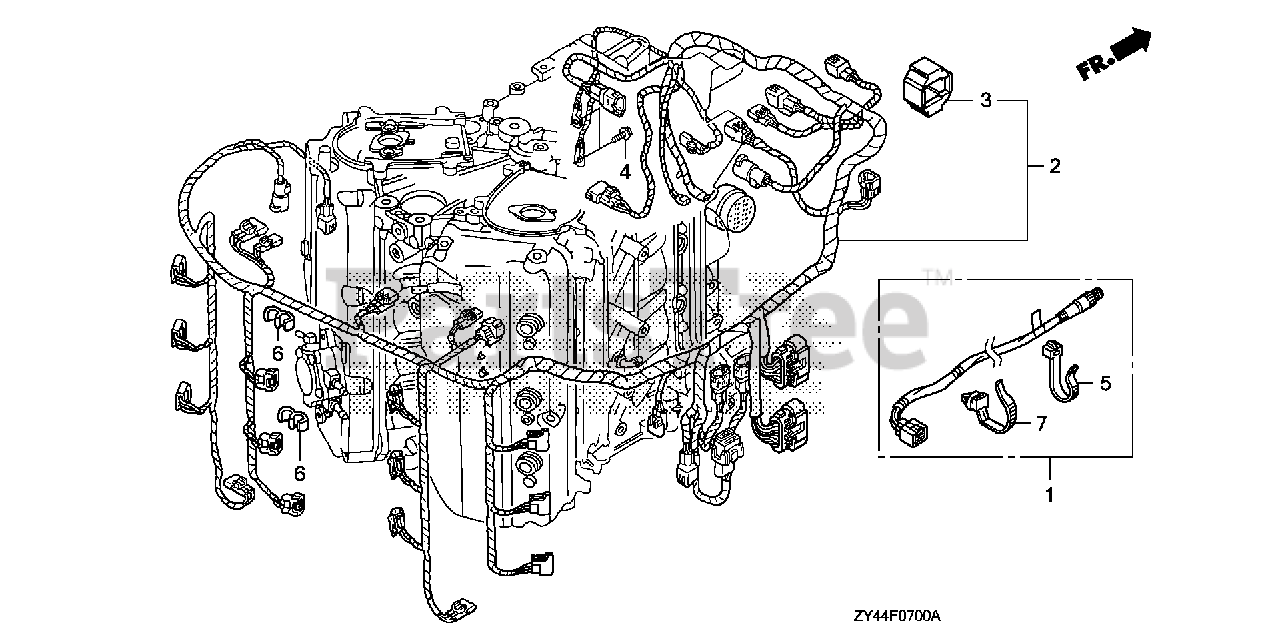

WIRE HARNESS Parts Diagram

  • Title

1

Honda 06328-ZZ3-763

SEE PART DETAILS - PRI; KIT, CABLE (6FT) (NMEA)
(Superseded to 06328-ZZ3-764)

Note: (Optional).

$362.99

$

Usually ships in 3-6 days

0

2

Honda 32100-ZY2-C00

WIRE HARNESS ASSY., MAIN
(Superseded to 32100-ZY2-C01)

$1101.99

$

Usually ships in 3-6 days

0

3

Honda 32127-ZZ3-000

SUSPENSION, CONNECTOR

$5.49

$

Usually ships in 3-6 days

0

4

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

5

Honda 90650-ZY1-003

TIE, CABLE

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90654-ZY3-003

CLIP A, HARNESS

$2.99

$

Usually ships in 3-6 days

0

7

Honda 91540-STK-003

CLIP, HARNESS BAND (155.3MM) (BLACK)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0
