BF175 AK1 LA (BAJJ) - Honda Marine Engine, Made in Japan (SN: BAJJ-1300001 - BAJJ-9999999) MOUNT CASE BOLT Parts Diagram

Marine Engine, Made in Japan

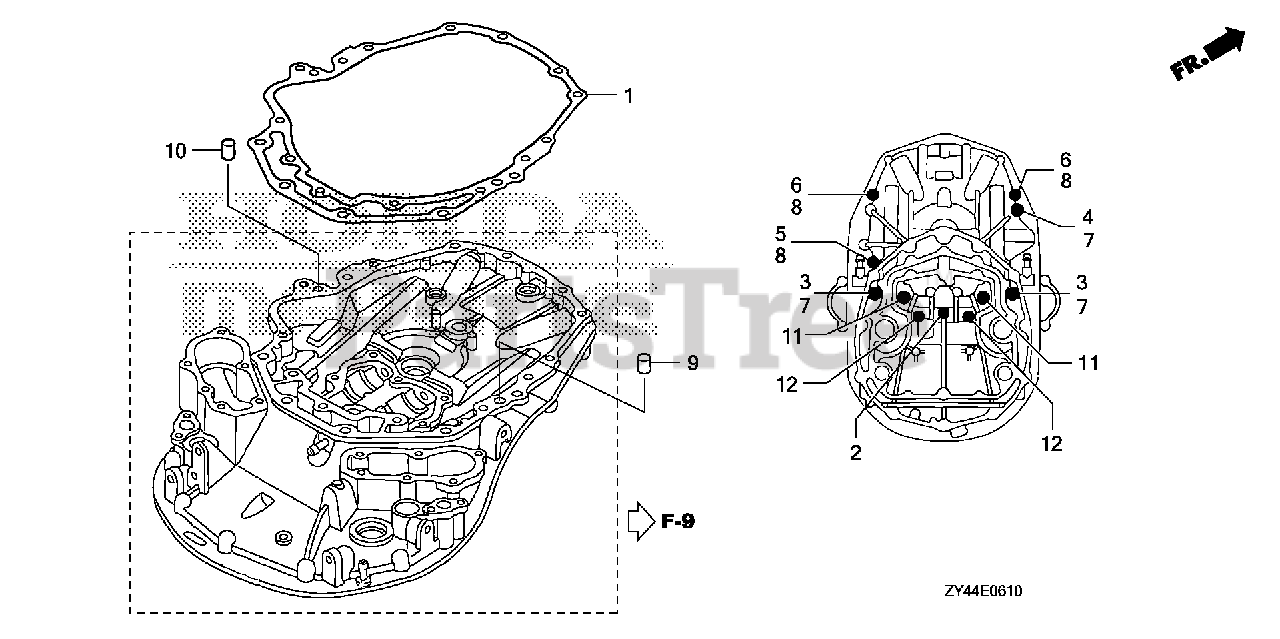

MOUNT CASE BOLT Parts Diagram

  • Title
1

Honda 23172-ZY3-003

GASKET, MOUNT CASE

$144.99

$

Usually ships in 3-6 days

0

2

Honda 90009-371-015

BOLT, FLANGE (10X120) (SATO)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 90010-ZY3-000

BOLT, HEX. (12X120)

$16.99

$

Usually ships in 3-6 days

0

4

Honda 90011-ZY3-000

BOLT, HEX. (12X65)

$17.99

$

Usually ships in 3-6 days

0

5

Honda 90013-ZY3-000

BOLT, HEX. (10X85)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 90015-ZY3-000

BOLT, HEX. (10X60)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90701-PW5-000

PIN, DOWEL (14X15)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 94302-10160

PIN B, DOWEL (10X16)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 95701-10070-09

BOLT, FLANGE (10X70)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 95701-12120-09

BOLT, FLANGE (12X120)

$3.99

$

Usually ships in 3-6 days

0
