BF150 AK2 XCS (BAPJ) - Honda Marine Engine, Made in Japan (SN: BAPJ-1400001 - BAPJ-9999999) OIL PUMP@FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

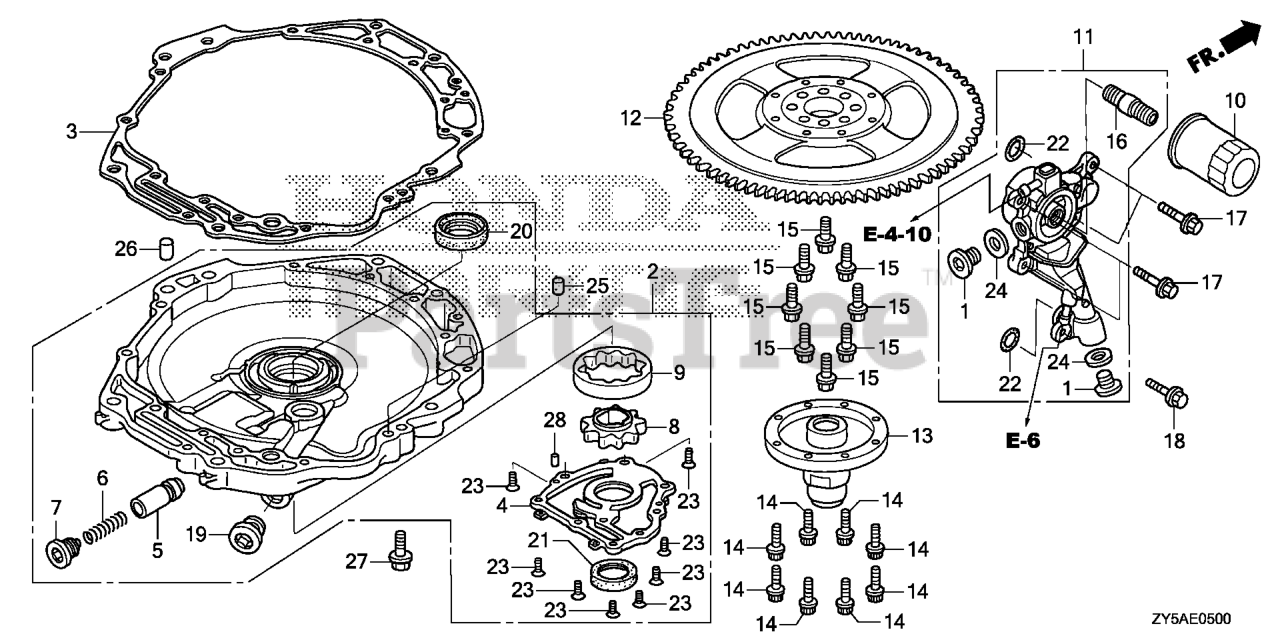

OIL PUMP@FLYWHEEL Parts Diagram

  • Title

1

Honda 12217-ZW1-010

SEE PART DETAILS - PRI; BOLT, SEALING (20MM)

Note: Use up to Engine SN 1049619.

$4.49

$

Usually ships in 3-6 days

0

1

Honda 12217-ZY9-M01

BOLT, SEALING (20MM)

Note: Use from Engine SN 1049620.

$3.99

$

Usually ships in 3-6 days

0

2

Honda 15100-ZY6-020ZA

PUMP ASSY., OIL *NH8* (DARK GRAY)
(Superseded to 15100-ZY6-030ZA)

$705.99

$

Usually ships in 3-6 days

0

2

Honda 15100-ZY6-030ZA

PUMP, OIL *NH8*

$705.99

$

Usually ships in 3-6 days

0

3

Honda 15112-ZY6-000

GASKET, OIL PUMP BODY

$106.99

$

Usually ships in 3-6 days

0

4

Honda 15121-ZY6-000

COVER, OIL PUMP

$81.99

$

Usually ships in 3-6 days

0

5

Honda 15231-PE0-000

VALVE, RELIEF (Honda Code 1599497).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 15232-PG6-000

SPRING, RELIEF VALVE

$8.49

$

Usually ships in 3-6 days

0

7

Honda 15233-PC6-000

BOLT, SEALING (18MM) (Honda Code 1460971).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 15331-ZW5-003

ROTOR, OIL PUMP (INNER)

$56.99

$

Usually ships in 3-6 days

0

9

Honda 15341-ZW5-003

ROTOR, OIL PUMP (OUTER)

$47.99

$

Usually ships in 3-6 days

0

10

Honda 15400-PLM-A01

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02)

Note: Use up to Engine SN 1040818.

$12.99

$

In Stock, Qty 15

0

10

Honda 15400-PLM-A02PE

FILTER, OIL

$13.99

$

In Stock, Qty 17

0

10

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

Note: Use from Engine SN 1040819.

$12.99

$

Usually ships in 3-6 days

0

11

Honda 15410-ZY6-040ZA

FLANGE COMP *NH8*

Note: Use from Engine SN 1049620.

$284.99

$

Usually ships in 3-6 days

0

12

Honda 31110-ZY6-000ZA

FLYWHEEL *TBLACK* (BLACK)

$600.99

$

Usually ships in 3-6 days

0

13

Honda 31116-ZY3-000

BOSS, FLYWHEEL

$148.99

$

Usually ships in 3-6 days

0

14

Honda 90002-ZW5-013

SEE PART DETAILS - PRI; BOLT, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90011-PH3-000

BOLT, FLANGE (12MM)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90015-PH1-013

HOLDER, OIL FILTER

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90014-ZZ5-M01

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90081-ZV5-010

SEE PART DETAILS - PRI; BOLT, SEALING (22MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90081-ZZ5-M01

BOLT, SEALING (22MM)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 91201-ZW5-003

OIL SEAL (46X60X9)

$16.99

$

Usually ships in 3-6 days

0

21

Honda 91212-P01-003

OIL SEAL (31X46X7) (NOK)

$15.99

$

Usually ships in 3-6 days

0

22

Honda 91360-VD6-003

O-RING (22.5X2.4)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 93600-06016-0A

SCREW, FLAT (6X16) (YAMADA)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 4 left!

0

25

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

26

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 95701-08032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2602241).

$2.99

$

Usually ships in 3-6 days

0

28

Honda 96220-50080

ROLLER (5X8)

$0.99

$

Usually ships in 3-6 days

0
