BF150 AK2 LA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1400001 - BANJ-9999999) WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

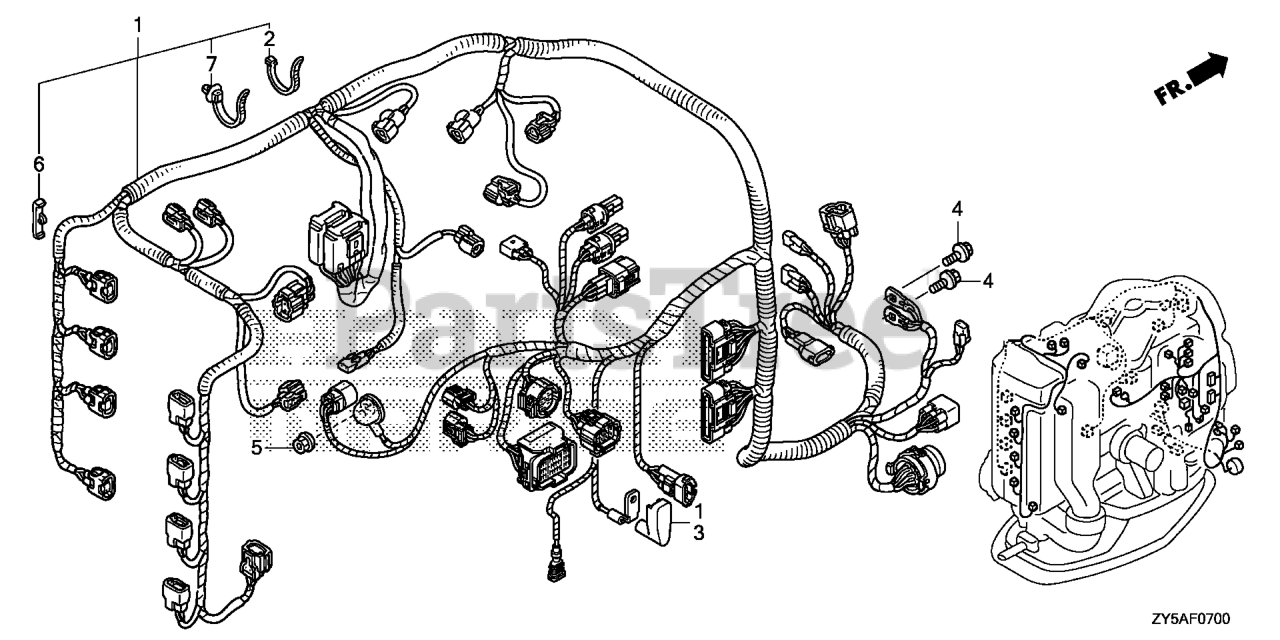

WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZY6-050

WIRE HARNESS ASSY., MAIN

Note: Use up to Frame SN 1402481.

$1023.99

$

Usually ships in 3-6 days

0

1

Honda 32100-ZY6-070

WIRE HARNESS ASSY., MAIN

Note: Use from Frame SN 1402482.

$1004.99

$

Usually ships in 3-6 days

0

2

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 32414-ZY6-300

COVER B, TERMINAL (L)

$5.99

$

Usually ships in 3-6 days

0

4

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

5

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

6

Honda 90653-ZY3-003

CLIP, WIRE HARNESS

$3.49

$

Usually ships in 3-6 days

0

7

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0
