BF150 AK2 LA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1400001 - BANJ-9999999) PROPELLER SHAFT@PROPELLER Parts Diagram

Marine Engine, Made in Japan

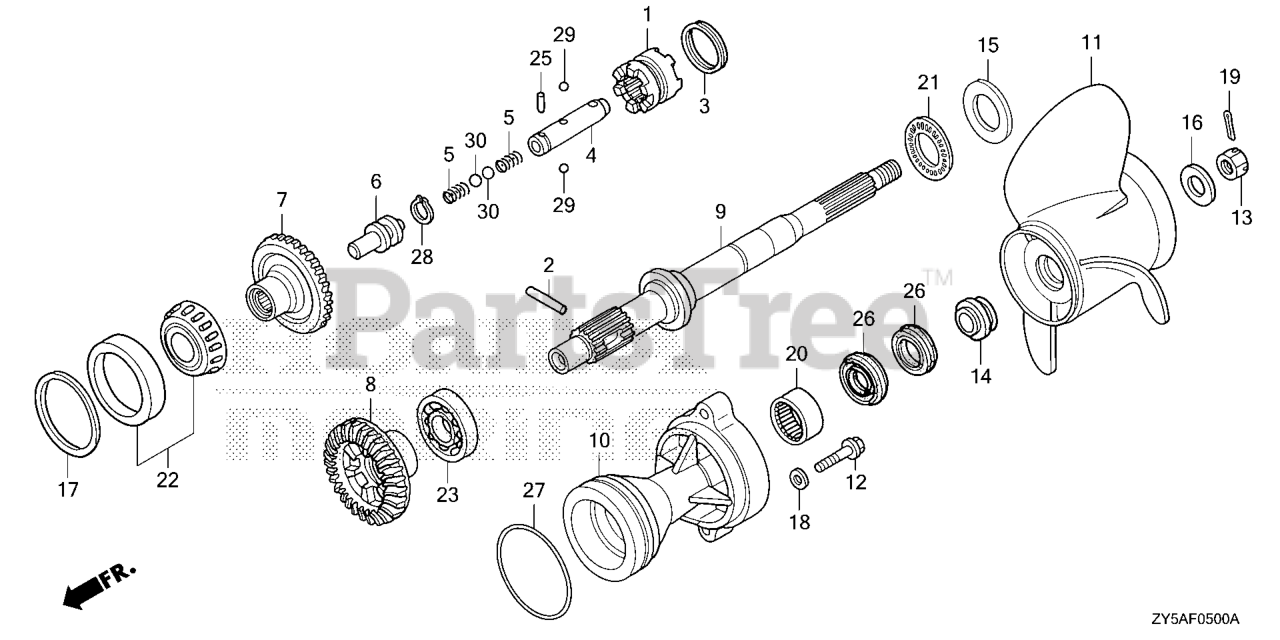

PROPELLER SHAFT@PROPELLER Parts Diagram

  • Title

1

Honda 24101-ZY6-000

SHIFTER, CLUTCH

$154.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24122-ZY6-000

SLIDER, SHIFT

$93.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZY6-000

SPRING, SHIFT

$2.99

$

Usually ships in 3-6 days

0

6

Honda 24124-ZY6-000

PLATE, SHIFT

$41.99

$

Usually ships in 3-6 days

0

7

Honda 41140-ZY6-000

GEAR, BEVEL (FORWARD 30T)

$498.99

$

Usually ships in 3-6 days

0

8

Honda 41151-ZY6-000

GEAR, BEVEL (RVS. 30T)

$448.99

$

Usually ships in 3-6 days

0

9

Honda 41161-ZY6-000

SHAFT, PROPELLER

$437.99

$

Usually ships in 3-6 days

0

10

Honda 41201-ZY6-000ZB

HOLDER, PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)

$256.99

$

Usually ships in 3-6 days

0

10

Honda 41201-ZY6-000ZD

HOLDER,PROP*NH565*

$249.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V01ZA

PROPELLER, THREE-BLADE (15-1/2X13) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$360.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V12ZA

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (15-1/4X15) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$342.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V22ZA

PROP (15X17) *NH283*

Note: (Optional)

$344.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V32ZA

PROPELLER, THREE-BLADE (14-3/4X19) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$353.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V42ZA

PROPELLER, THREE-BLADE (14-1/2X21) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$353.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V52ZA

PROPELLER, THREE-BLADE (14-1/4X23) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$353.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A15AH

PROPELLER, THREE-BLADE (14-1/2X15) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A17AH

PROPELLER, THREE-BLADE (14-1/4X17) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A19AH

PROPELLER, THREE-BLADE (14X19) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A21AH

PROPELLER, THREE-BLADE (14X21) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A23S

PROPELLER, THREE-BLADE (14-1/2X23) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58133-ZY3-A25AH

PROPELLER, THREE-BLADE (14X25) (SUS)

Note: (Optional)

$622.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V41ZA

PROPELLER, THREE-BLADE (14-1/2X21) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$371.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZY3-V51ZA

PROPELLER, THREE-BLADE (14-1/4X23) *NH283* (AL) (STIN GRAY)

Note: (Optional)

$353.99

$

Usually ships in 3-6 days

0

12

Honda 90104-ZY6-000

BOLT, FLANGE (10X40)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 90506-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$52.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90512-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER

$50.99

$

Usually ships in 3-6 days

0

16

Honda 90512-ZY3-000

SEE PART DETAILS - SUP; WASHER, PROPELLER
(Superseded to 90512-ZX2-C00)

Note: Use up to Frame SN 1404359.

$50.99

$

Usually ships in 3-6 days

0

17

Honda 90528-ZY3-000

SHIM A, BEVEL (0.10)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90529-ZY3-000

SHIM B, BEVEL (0.15)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90530-ZY3-000

SHIM C, BEVEL (0.30)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90531-ZY3-000

SHIM D, BEVEL (0.50)

$22.99

$

Usually ships in 3-6 days

0

18

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

Note: Use up to Frame SN 1426083.

$38.99

$

Usually ships in 3-6 days

0

20

Honda 91053-ZY6-003

BEARING (30X37X26)

$38.99

$

Usually ships in 3-6 days

0

21

Honda 91005-PT2-N01

BEARING, THRUST (F)

$21.99

$

Usually ships in 3-6 days

0

22

Honda 91051-ZY6-003

BEARING, TAPER (50X90X28)

$79.99

$

Usually ships in 3-6 days

0

23

Honda 91055-ZY6-004

BEARING, RADIAL BALL (50X90X20)

$79.99

$

Usually ships in 3-6 days

0

24

Honda 91056-ZW5-003

BEARING, NEEDLE (25X32X26)

$16.99

$

Usually ships in 3-6 days

0

25

Honda 91101-ZW1-003

SEE PART DETAILS - PRI; ROLLER (3X12.8)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$8.99

$

In Stock, only 1 left!

0

27

Honda 91351-ZY3-003

O-RING (105X3.1)

$9.99

$

Usually ships in 3-6 days

0

28

Honda 94510-14000

CIRCLIP (OUTER) (14MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 96211-09000

BALL, STEEL (#9) (9/32)

$1.49

$

Usually ships in 3-6 days

0
