BF150 AK0 XA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1300001 - BANJ-9999999) VAPOR SEPARATOR ASSY. Parts Diagram

Marine Engine, Made in Japan

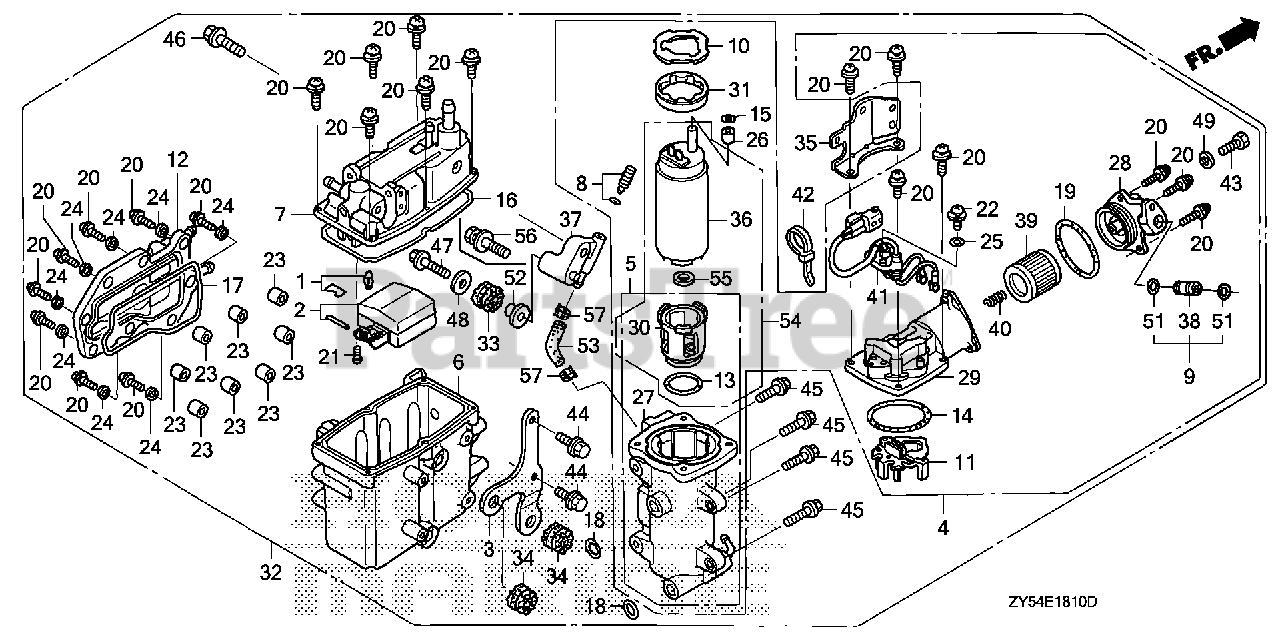

VAPOR SEPARATOR ASSY. Parts Diagram

  • Title

1

Honda 16011-ZY3-000

VALVE SET, FLOAT
(Superseded to 16011-ZY3-A01)

$63.99

$

Usually ships in 3-6 days

0

2

Honda 16013-ZY3-000

FLOAT SET

$126.99

$

Usually ships in 3-6 days

0

3

Honda 16014-ZY6-003

STAY A, PLATE

$43.99

$

Usually ships in 3-6 days

0

4

Honda 16017-ZY6-023

PUMP UNIT, FUEL (MSDS)

Note: Use from Engine SN 1013210 to 1014361.

$

$

Not available

4

Honda 16017-ZY6-013

PUMP UNIT, FUEL

Note: Use up to Engine SN 1013209.

$

$

Currently unavailable

4

Honda 16017-ZY6-043

PUMP UNIT, FUEL (MSDS)

Note: Use from Engine SN 1014362.

$1173.99

$

Usually ships in 3-6 days

0

6

Honda 16019-ZY6-003

BODY, CHAMBER
(Superseded to 16019-ZY6-013)

$280.99

$

Usually ships in 3-6 days

0

7

Honda 16020-ZY6-003

COVER

Note: Use up to Engine SN 1014361.

$

$

Not available

7

Honda 16020-ZY6-023

COVER

Note: Use from Engine SN 1014362.

$365.99

$

Usually ships in 3-6 days

0

8

Honda 16024-ZY3-000

SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.)

$17.99

$

Usually ships in 3-6 days

0

9

Honda 16026-ZY3-000

JOINT SET

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16041-ZY3-000

PLATE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 16042-ZY3-000

HOLDER

$15.99

$

Usually ships in 3-6 days

0

12

Honda 16061-ZY3-000

COVER, WATER JACKET
(Superseded to 16061-ZY3-010)

$43.99

$

Usually ships in 3-6 days

0

12

Honda 16061-ZY3-010

COVER, WATER JACKET

$43.99

$

Usually ships in 3-6 days

0

13

Honda 16072-ZY3-000

O-RING

$12.99

$

Usually ships in 3-6 days

0

14

Honda 16073-ZY3-000

O-RING

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16074-ZY3-000

SEE PART DETAILS - SUP; O-RING
(Superseded to 91301-P2F-A01)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 91301-P2F-A01

SEE PART DETAILS - PRI; O-RING (7.3X2.2) (NOK)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 16075-ZY3-000

O-RING

$23.99

$

Usually ships in 3-6 days

0

17

Honda 16076-ZY3-000

O-RING

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16077-ZY3-000

O-RING

$15.99

$

Usually ships in 3-6 days

0

19

Honda 16078-ZY3-000

O-RING

$16.99

$

In Stock, only 1 left!

0

20

Honda 16081-ZW5-010

SEE PART DETAILS - PRI; SCREW-WASHER

$6.49

$

Usually ships in 3-6 days

0

21

Honda 16082-ZY3-000

SCREW, PAN

$5.99

$

Usually ships in 3-6 days

0

22

Honda 16083-ZY3-000

SCREW, WASHER

$4.99

$

Usually ships in 3-6 days

0

23

Honda 16086-ZW5-000

COLLAR, SET

$4.99

$

Usually ships in 3-6 days

0

24

Honda 16087-ZW5-000

WASHER, PLAIN

$5.49

$

Usually ships in 3-6 days

0

25

Honda 16087-ZY3-000

WASHER, PLAIN

$8.49

$

Usually ships in 3-6 days

0

26

Honda 16088-ZY3-000

COLLAR

$6.49

$

Usually ships in 3-6 days

0

27

Honda 16701-ZY6-003

CASE, PUMP

$264.99

$

Usually ships in 3-6 days

0

28

Honda 16708-ZW5-003

COVER B, PUMP

$192.99

$

Usually ships in 3-6 days

0

29

Honda 16715-ZW5-003

COVER, PUMP (A) (NOT AVAILABLE)

Note: Use up to Engine SN 1014361.

$

$

Not available

29

Honda 16715-ZW5-023

COVER, PUMP (A)

Note: Use from Engine SN 1014362.

$196.99

$

Usually ships in 3-6 days

0

30

Honda 16718-ZY6-013

INSULATOR

Note: Use from Engine SN 1013210.

$34.99

$

Usually ships in 3-6 days

0

31

Honda 16721-ZY3-000

INSULATOR

$34.99

$

Usually ships in 3-6 days

0

32

Honda 16730-ZY6-023

SEPARATOR ASSY., VAPOR

Note: Use from Engine SN 1013210 to 1014361.

$

$

Not available

32

Honda 16730-ZY6-013

SEPARATOR ASSY., VAPOR

Note: Use up to Engine SN 1013209.

$

$

Currently unavailable

32

Honda 16730-ZY6-033

SEPARATOR ASSY., VAPOR

Note: Use from Engine SN 1014362 to 1014445.

$

$

Currently unavailable

32

Honda 16730-ZY6-043

SEPARATOR ASSY., VAPOR (NOT AVAILABLE)

Note: Use from Engine SN 1014446 to 1021096.

$

$

Currently unavailable

32

Honda 16730-ZY6-053

SEE PART DETAILS - SUP; SEPARATOR ASSY., VAPOR
(Superseded to 16730-ZY6-133)

Note: Use from Engine SN 1021097 to 1022379.

$1437.99

$

Usually ships in 3-6 days

0

32

Honda 16730-ZY6-073

SEPARATOR ASSY., VAPOR
(Superseded to 16730-ZY6-113)

Note: Use from Engine SN 1021097.

$

$

Not available

32

Honda 16730-ZY6-113

SEPARATOR ASSY., VAPOR
(Superseded to 16730-ZY6-133)

Note: Use from Engine SN 1021097.

$1437.99

$

Usually ships in 3-6 days

0

33

Honda 16733-ZW5-000

GROMMET, VAPOR SEPARATOR

$9.99

$

Usually ships in 3-6 days

0

34

Honda 16733-ZY3-000

GROMMET, VAPOR SEPARATOR

$8.99

$

Usually ships in 3-6 days

0

35

Honda 16734-ZY6-003

STAY, PLATE

$33.99

$

Usually ships in 3-6 days

0

36

Honda 16735-ZW5-003

PUMP UNIT, FUEL (MSDS)

$516.99

$

Usually ships in 3-6 days

0

37

Honda 16736-ZY6-003

STAY, VAPOR SEPARATOR

$57.99

$

Usually ships in 3-6 days

0

38

Honda 16752-ZY3-000

JOINT, FUEL PIPE

$10.99

$

Usually ships in 3-6 days

0

39

Honda 16911-ZY3-010

SEE PART DETAILS - PRI; SCREEN, FUEL STRAINER

$74.99

$

Usually ships in 3-6 days

0

40

Honda 16913-ZY3-000

SPRING, SET

$8.99

$

Usually ships in 3-6 days

0

41

Honda 32166-ZY6-003

HARNESS

$178.99

$

Usually ships in 3-6 days

0

42

Honda 32168-ZW5-003

BAND

$2.49

$

Usually ships in 3-6 days

0

43

Honda 90009-PP4-E01

BOLT, SEALING (6MM)

$10.99

$

Usually ships in 3-6 days

0

44

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

45

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

46

Honda 90049-ZY3-000

BOLT, FLANGE (8X30)
(Superseded to 90049-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 90054-ZY3-000

BOLT, FLANGE (8X35)
(Superseded to 90054-ZY9-M01)

Note: Use up to Engine SN 1018845.

$2.99

$

Usually ships in 3-6 days

0

48

Honda 90402-ZY3-000

WASHER, PLAIN (8MM)

$1.99

$

Usually ships in 3-6 days

0

48

Honda 90402-ZY3-000

WASHER, PLAIN (8MM)

Note: Use up to Engine SN 1018845.

$1.99

$

Usually ships in 3-6 days

0

49

Honda 90430-PD6-003

SEE PART DETAILS - PRI; WASHER, SEALING (6MM)

$6.99

$

Usually ships in 3-6 days

0

51

Honda 91301-MJ0-003

O-RING (7.8X1.9) (ARAI)

$3.49

$

Usually ships in 3-6 days

0

52

Honda 91554-ZW1-000

SEE PART DETAILS - PRI; COLLAR (8.5X14.5)
(Superseded to 91504-ZY9-M03)

$8.49

$

Usually ships in 3-6 days

0

53

Honda 16840-ZY6-A00

TUBE F, FUEL

$3.49

$

Usually ships in 3-6 days

0

54

Honda 16036-ZY6-003

PUMP UNIT, FUEL (B) (MSDS)

$521.99

$

Usually ships in 3-6 days

0

55

Honda 16723-ZY6-003

RING

$14.99

$

Usually ships in 3-6 days

0

56

Honda 90014-ZW1-000

BOLT-WASHER (8X35)
(Superseded to 90014-ZY9-M01)

Note: Use from Engine SN 1018846.

$4.49

$

Usually ships in 3-6 days

0

57

Honda 90607-ZY6-000

CLAMP, TUBE (8.0)

$3.99

$

Usually ships in 3-6 days

0
