BF150 AK0 XA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1300001 - BANJ-9999999) FUEL TUBE Parts Diagram

Marine Engine, Made in Japan

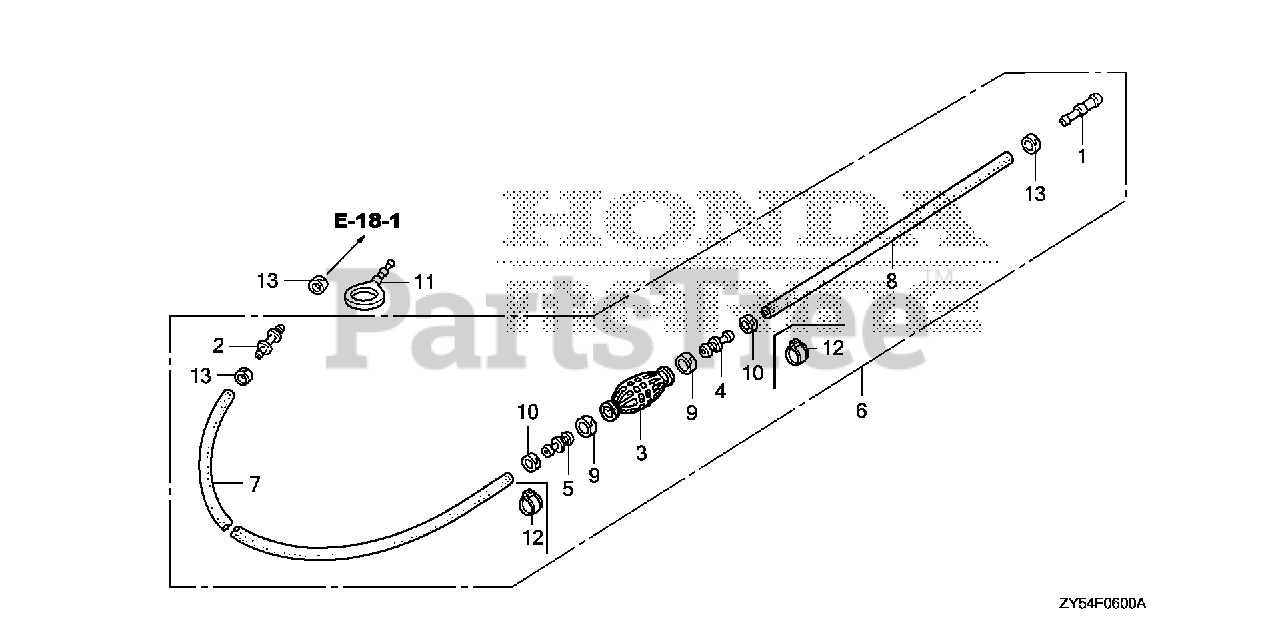

FUEL TUBE Parts Diagram

  • Title

1

Honda 16966-MR1-000

JOINT, FUEL TUBE (JOINT TYPE)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

Note: Use up to Frame SN 1305283.

$18.99

$

Usually ships in 3-6 days

0

3

Honda 17661-ZW9-900

BULB, PRIMER

Note: Use from Frame SN 1305284.

$65.99

$

Usually ships in 3-6 days

0

4

Honda 17665-ZV5-000

VALVE, IN.

$17.99

$

Usually ships in 3-6 days

0

5

Honda 17680-ZV4-000

VALVE, OUTLET

$17.99

$

Usually ships in 3-6 days

0

6

Honda 17700-ZY3-010

TUBE ASSY., FUEL (JOINT TYPE)

Note: Use up to Frame SN 1303587.

$115.99

$

Usually ships in 3-6 days

0

6

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

Note: Use from Frame SN 1303588.

$222.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

Note: Use up to Frame SN 1303587.

$64.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZY9-E02

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)
(Superseded to 17701-ZY9-E04)

Note: Use from Frame SN 1304001 to 1305283.

$132.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1303588 to 1304000.

$132.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1305284.

$132.99

$

Usually ships in 3-6 days

0

8

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

Note: Use up to Frame SN 1303587.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500) (CONNECTOR TYPE)

Note: Use up to Frame SN 1305283.

$32.99

$

Usually ships in 3-6 days

0

8

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500) (CONNECTOR TYPE)

Note: Use from Frame SN 1304001.

$32.99

$

Usually ships in 3-6 days

0

8

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: Use from Frame SN 1303588 to 1304000.

$33.99

$

Usually ships in 3-6 days

0

8

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: Use from Frame SN 1305284.

$33.99

$

Usually ships in 3-6 days

0

9

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use up to Frame SN 1303587.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 17738-ZY3-000

PLUG, FUEL TUBE

$13.99

$

Usually ships in 3-6 days

0

12

Honda 16895-ZW9-900

CLAMP, FUEL TUBE (CONNECTOR TYPE)

Note: Use from Frame SN 1303588 to 1305283.

$5.49

$

Usually ships in 3-6 days

0

12

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

Note: Use from Frame SN 1305284.

$7.49

$

Usually ships in 3-6 days

0

13

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0
