BF150 AK0 LA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1300001 - BANJ-9999999) CYLINDER HEAD COVER Parts Diagram

Marine Engine, Made in Japan

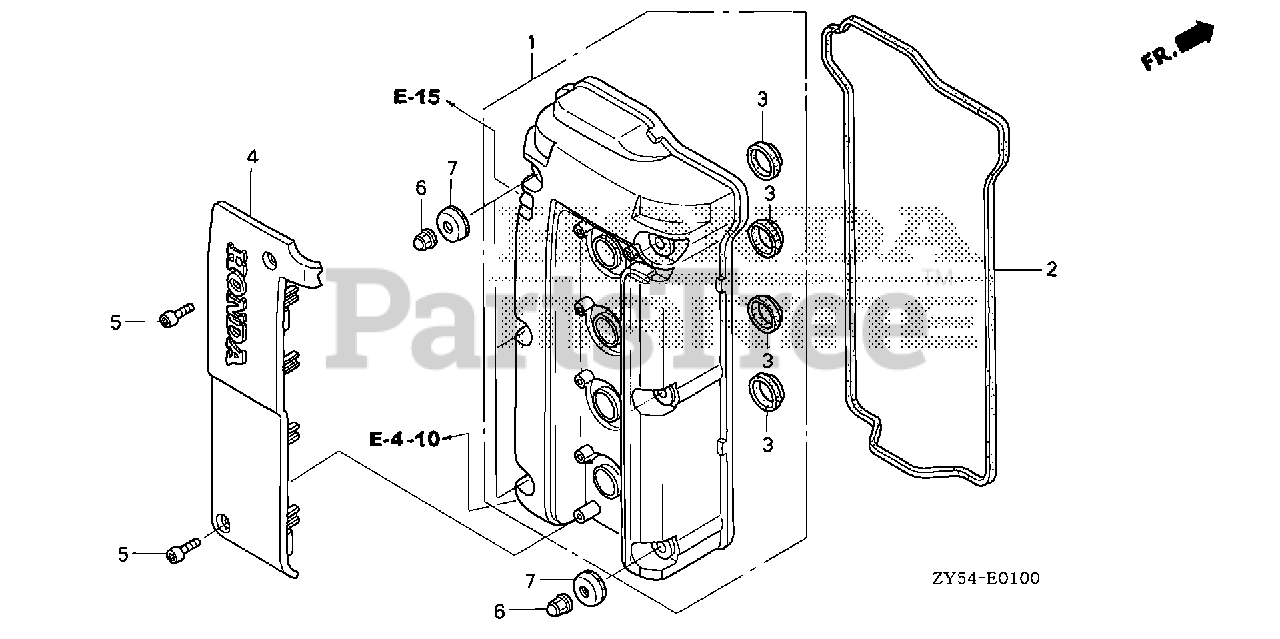

CYLINDER HEAD COVER Parts Diagram

  • Title
1

Honda 04102-ZY6-000ZA

COVER, CYLINDER HEAD *NH8* (DARK GRAY)

Note: Use up to Engine SN 1008107.

$349.99

$

Usually ships in 3-6 days

0

1

Honda 12310-ZY6-010ZA

COVER, CYLINDER HEAD *NH8* (DARK GRAY) (FOR 14540-RWC-A02)

Note: Use from Engine SN 1008108.

$377.99

$

Usually ships in 3-6 days

0

2

Honda 12341-RTA-000

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

$25.99

$

Usually ships in 3-6 days

0

3

Honda 12342-PCX-004

SEAL, SPARK PLUG TUBE (NOK)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 12500-ZY6-000

COVER, PLUG HOLE COIL

$51.99

$

Usually ships in 3-6 days

0

5

Honda 90084-ZY3-000

SEE PART DETAILS - PRI; BOLT, SOCKET (6X25)

$7.49

$

Usually ships in 3-6 days

0

6

Honda 90201-ZY6-000

NUT, FLANGE CAP (6MM)
(Superseded to 90201-ZY6-030)

$3.99

$

Usually ships in 3-6 days

0

6

$3.49

$

In Stock, only 2 left!

0

7

Honda 90401-ZY6-000

WASHER, HEAD COVER

$8.99

$

Usually ships in 3-6 days

0
