BF150 A4 XCA (BAPJ) - Honda Marine Engine, Made in Japan (SN: BAPJ-1000001 - BAPJ-1099999) ENGINE COVER ASSY. Parts Diagram

Marine Engine, Made in Japan

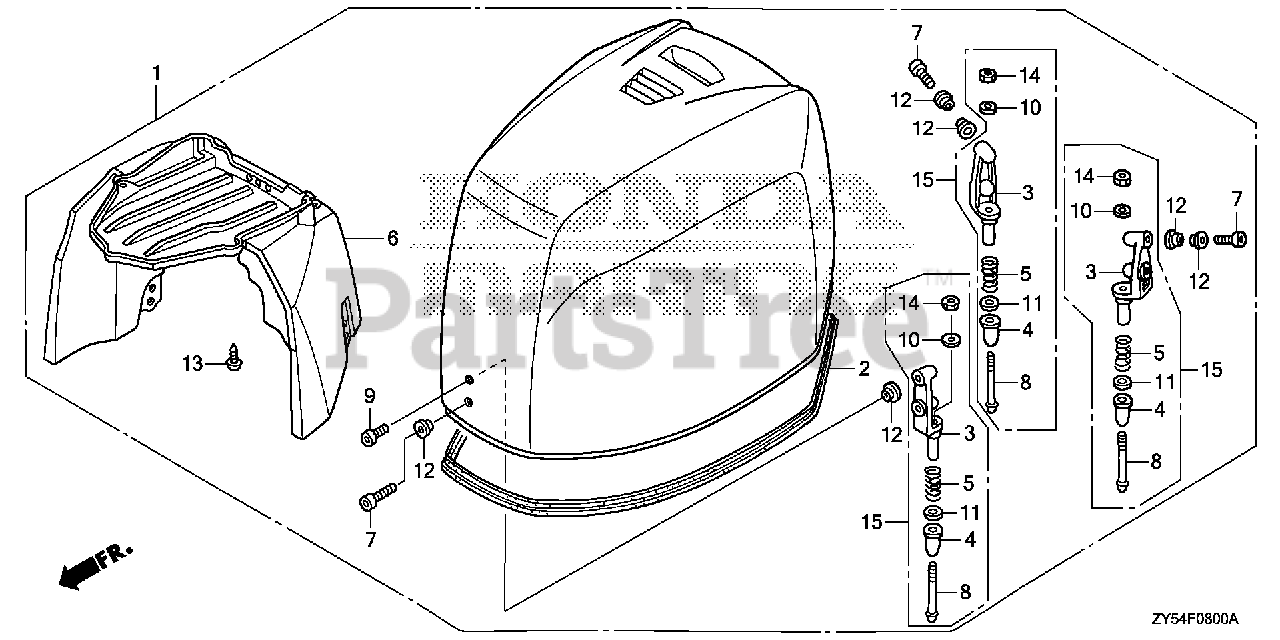

ENGINE COVER ASSY. Parts Diagram

  • Title

1

Honda 63100-ZY6-030ZA

SEE PART DETAILS - SUP; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63100-ZY6-050ZA)

$1491.99

$

Usually ships in 3-6 days

0

1

Honda 63100-ZY6-040ZA

SEE PART DETAILS - PRI; COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 63100-ZY6-050ZA)

$1491.99

$

Usually ships in 3-6 days

0

2

Honda 63102-ZY6-010

SEAL, ENGINE COVER

$75.99

$

Usually ships in 3-6 days

0

3

Honda 63107-ZY3-000

BRACKET, HOOK
(Superseded to 63107-ZY3-010)

$44.99

$

Usually ships in 3-6 days

0

4

Honda 63108-ZY3-000

DAMPER, HOOK

$7.49

$

Usually ships in 3-6 days

0

5

Honda 63119-ZY3-000

SPRING, LOCK ADJUSTER

$3.99

$

Usually ships in 3-6 days

0

6

Honda 63144-ZY6-000

GUIDE, ENGINE COVER AIR

$260.99

$

Usually ships in 3-6 days

0

7

Honda 90101-ZY6-000

BOLT, SOCKET (6X20)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90109-ZY3-010

BOLT, COVER LOCK

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90133-ZY3-000

BOLT, SOCKET (6X16)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

11

Honda 90507-ZY3-000

WASHER, PLAIN (12MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91556-ZY3-000

COLLAR, DISTANCE (6.5X9X3)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 93913-141J0

SCREW, TAPPING (4X10)

Note: Use up to Frame SN 1002203.

$3.49

$

Usually ships in 3-6 days

0

13

Honda 93913-142J0

SCREW, TAPPING (4X12)

Note: Use from Frame SN 1002204.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94002-06490-0S

NUT, HEX. (6MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 06631-ZY6-000

HOOK KIT, COVER
(Superseded to 06631-ZY6-010)

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0
