BF15 AW SA (BAAS) - Honda Outboard Engine, Made in Japan (SN: BAAS-1300001 - BAAS-9999999) HANDLEBAR (AM/AW) Parts Diagram

Outboard Engine, Made in Japan

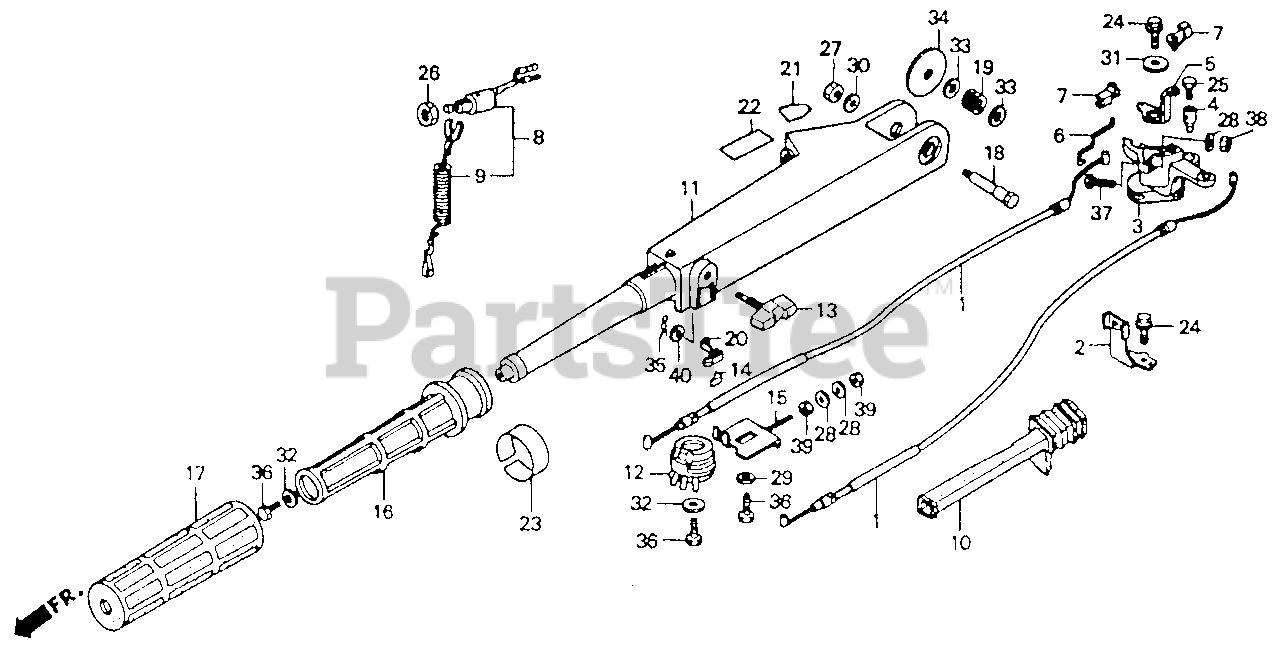

HANDLEBAR (AM/AW) Parts Diagram

  • Title
1

Honda 17910-ZV4-000

CABLE, THROTTLE

$14.99

$

Usually ships in 3-6 days

0

2

Honda 17922-ZV4-010

CLAMP, THROTTLE CABLE

$

$

Not available

3

Honda 17931-ZV4-010

ARM, THROTTLE

$

$

Not available

4

Honda 17933-ZV4-000

HOLDER, THROTTLE ROD

$12.99

$

Usually ships in 3-6 days

0

5

Honda 17952-ZV4-000

ARM, CHOKE

$9.49

$

Usually ships in 3-6 days

0

6

Honda 17955-ZV4-000

ROD, CHOKE KNOB

$

$

Not available

7

Honda 17957-ZV4-000

BUSH, LINKAGE

$2.49

$

In Stock, Qty 6

0

8

Honda 36180-ZV4-652

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP

$

$

Not available

9

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY
(Superseded to 36182-ZV4-651)

$24.99

$

Usually ships in 3-6 days

0

10

Honda 40105-ZV4-000

GROMMET, OIL CASE (A)

$21.99

$

Usually ships in 3-6 days

0

11

Honda 53101-ZV4-650ZB

HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

12

Honda 53102-ZV4-000

REEL, CABLE

$

$

Not available

13

Honda 53104-ZV4-010

BOLT, FRICTION

$

$

Not available

14

Honda 53106-ZV4-000

BLOCK, THROTTLE FRICTION

$

$

Not available

15

Honda 53130-ZV4-650

PLATE, ADJUSTING

$

$

Not available

16

Honda 53141-ZV4-000

PIPE, GRIP

$

$

Not available

17

Honda 53165-ZV4-000

RUBBER, GRIP

$16.99

$

Usually ships in 3-6 days

0

18

Honda 53171-921-000

SCREW, HANDLE PIVOT

$

$

Not available

19

Honda 53172-921-003

SPRING, HANDLE PIVOT

$

$

Not available

20

Honda 53173-ZV4-000

SPRING, THROTTLE FRICTION

$

$

Not available

24

Honda 90013-ZV0-000

BOLT, FLANGE (6X12)

$

$

Not available

25

Honda 90116-ZV1-000

BOLT, RECESSED (5X8)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

27

Honda 90306-ZV4-000

NUT, HEX. (8MM)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

30

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$2.99

$

In Stock, only 1 left!

0

32

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90514-ZV4-000

WASHER (10MM)

$2.49

$

In Stock, only 2 left!

0

34

Honda 90516-ZV4-000

WASHER, HANDLEBAR

$6.49

$

Usually ships in 3-6 days

0

35

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 94002-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94101-04200

WASHER, FLAT (4MM)

$0.99

$

Usually ships in 3-6 days

0
