BF15 AH SA (BAAS) - Honda Outboard Engine, Made in Japan (SN: BAAS-1000001 - BAAS-9999999) HANDLEBAR (AH/AK) Parts Diagram

Outboard Engine, Made in Japan

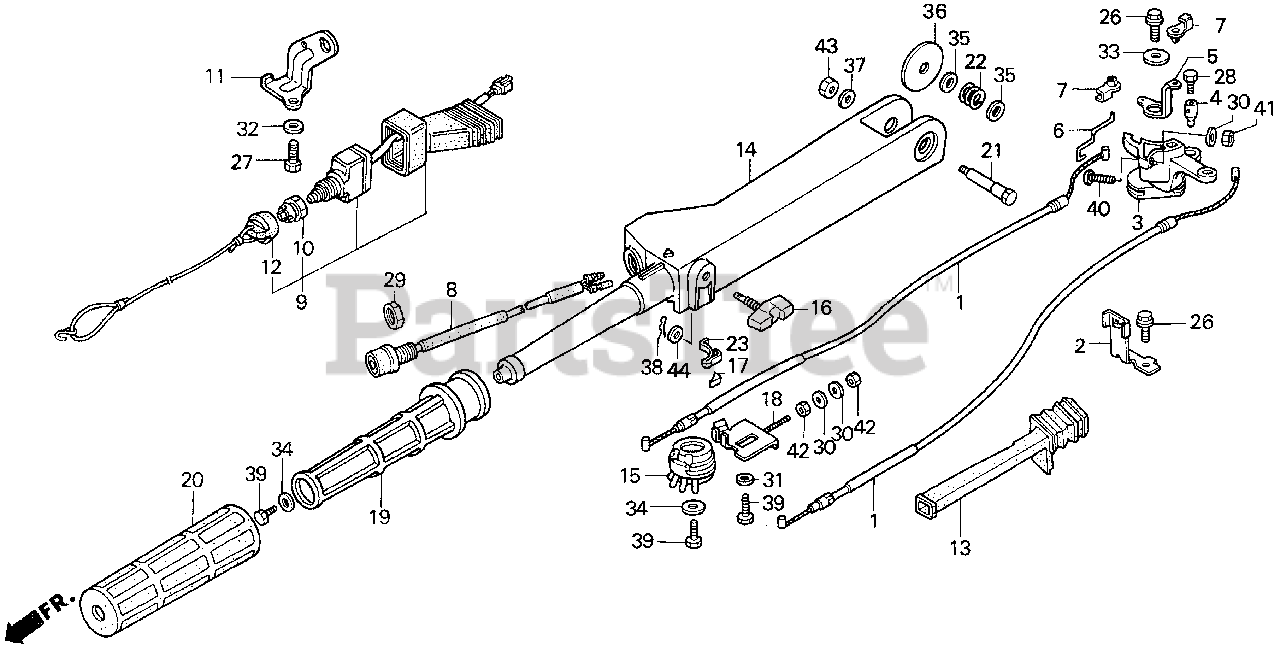

HANDLEBAR (AH/AK) Parts Diagram

  • Title

1

Honda 17910-ZV4-000

CABLE, THROTTLE

$16.99

$

Usually ships in 3-6 days

0

2

Honda 17922-ZV4-010

CLAMP, THROTTLE CABLE

$

$

Not available

3

Honda 17931-ZV4-010

ARM, THROTTLE

$

$

Not available

4

Honda 17933-ZV4-000

HOLDER, THROTTLE ROD

$13.99

$

Usually ships in 3-6 days

0

5

Honda 17952-ZV4-000

ARM, CHOKE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 17955-ZV4-000

ROD, CHOKE KNOB

$

$

Not available

7

Honda 17957-ZV4-000

BUSH, LINKAGE

$2.99

$

In Stock, Qty 6

0

8

Honda 36100-ZV4-013

SWITCH ASSY., STOP

$

$

Not available

9

Honda 36180-ZV4-003

SWITCH ASSY., EMERGENCY STOP

$

$

Not available

10

Honda 36181-ZV4-003

NUT, CAP

$12.99

$

Usually ships in 3-6 days

0

11

Honda 36182-ZV4-000

BRACKET, EMERGENCY STOP SWITCH

$

$

Currently unavailable

12

Honda 36183-ZV4-003

CAP

$59.99

$

Usually ships in 3-6 days

0

13

Honda 40105-ZV4-000

GROMMET, OIL CASE (A)

$23.99

$

Usually ships in 3-6 days

0

14

Honda 53101-ZV4-020ZA

HANDLEBAR *NH210MC* (AQUA SILVER METALLIC-C)

$

$

Currently unavailable

15

Honda 53102-ZV4-000

REEL, CABLE

$

$

Not available

16

Honda 53104-ZV4-010

BOLT, FRICTION

$

$

Not available

17

Honda 53106-ZV4-000

BLOCK, THROTTLE FRICTION

$

$

Not available

18

Honda 53130-ZV4-000

PLATE, ADJUSTING

$

$

Currently unavailable

19

Honda 53141-ZV4-000

PIPE, GRIP

$

$

Not available

20

Honda 53165-ZV4-000

RUBBER, GRIP

$17.99

$

Usually ships in 3-6 days

0

21

Honda 53171-921-000

SCREW, HANDLE PIVOT

$

$

Not available

22

Honda 53172-921-003

SPRING, HANDLE PIVOT

$

$

Not available

23

Honda 53173-ZV4-000

SPRING, THROTTLE FRICTION

$

$

Not available

26

Honda 90013-ZV0-000

BOLT, FLANGE (6X12)

$

$

Not available

27

Honda 90110-881-000

BOLT, HEX. (6X14)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90116-ZV1-000

BOLT, RECESSED (5X8)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

30

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

32

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

In Stock, only 1 left!

0

34

Honda 90512-921-010

WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 90514-ZV4-000

WASHER (10MM)

$2.49

$

In Stock, only 2 left!

0

36

Honda 90516-ZV4-000

WASHER, HANDLEBAR

$6.99

$

Usually ships in 3-6 days

0

37

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

Note: Use from Frame SN 1000595.

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90518-921-000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1000594.

$1.99

$

In Stock, Qty 10

0

38

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

Note: Use from Frame SN 1002584.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 90759-ZV4-000

PIN, LOCK (4MM)

Note: Use up to Frame SN 1002583.

$1.99

$

Usually ships in 3-6 days

0

39

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 94002-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 90306-ZV4-000

NUT, HEX. (8MM)

Note: Use from Frame SN 1000595.

$4.49

$

Usually ships in 3-6 days

0

43

Honda 94002-08490-0S

NUT, HEX. (8MM)

Note: Use up to Frame SN 1000594.

$2.49

$

Usually ships in 3-6 days

0

44

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

Note: Use up to Frame SN 1001017.

$1.99

$

Usually ships in 3-6 days

0

44

Honda 94101-04200

WASHER, FLAT (4MM)

Note: Use from Frame SN 1001018.

$0.99

$

Usually ships in 3-6 days

0
