BF15 AH SA (BAAS) - Honda Outboard Engine, Made in Japan (SN: BAAS-1000001 - BAAS-9999999) CRANKSHAFT Parts Diagram

Outboard Engine, Made in Japan

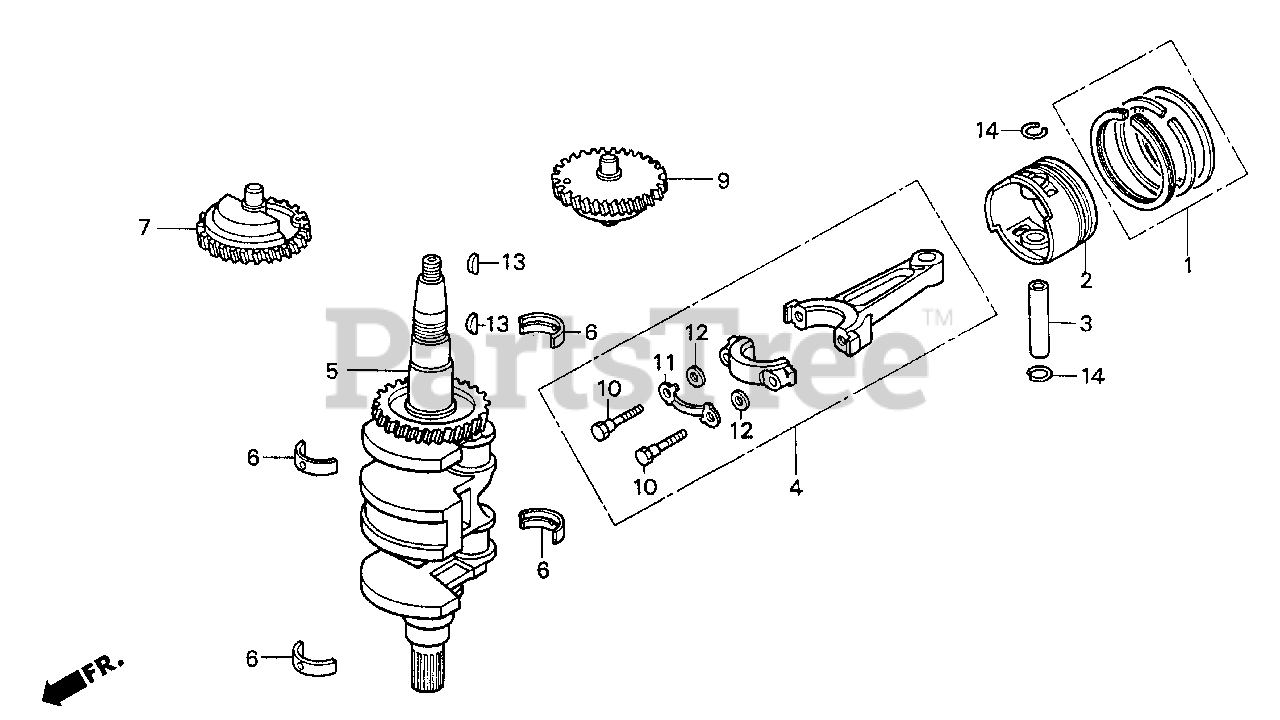

CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZV4-004

RING SET, PISTON

$37.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZV4-000

PISTON (NA USE ALT:04101-ZV4-000)

Note: Use up to Engine SN 1003155.

$

$

Currently unavailable

2

Honda 13101-ZV4-010

PISTON

Note: Use from Engine SN 1003156.

$

$

Not available

3

Honda 13111-ZV4-000

PIN, PISTON

Note: Use from Engine SN 1003156.

$

$

Not available

3

Honda 13111-881-000

PIN, PISTON

Note: Use up to Engine SN 1003155.

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZV4-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-ZV4-010)

Note: Use up to Engine SN 1003155.

$

$

Not available

4

Honda 13200-ZV4-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$

$

Not available

5

Honda 13310-ZV4-030

CRANKSHAFT

$

$

Currently unavailable

6

Honda 13321-ZA0-003

BEARING, CRANKSHAFT (1) (BLACK)

$16.99

$

In Stock, only 1 left!

0

6

Honda 13322-ZA0-003

BEARING, CRANKSHAFT (2) (BROWN)

$16.99

$

Usually ships in 3-6 days

0

6

Honda 13323-ZA0-003

BEARING, CRANKSHAFT (3) (GREEN)

$16.99

$

In Stock, only 2 left!

0

6

Honda 13324-ZA0-003

BEARING, CRANKSHAFT (4) (YELLOW)

$16.99

$

In Stock, Qty 6

0

6

Honda 13325-ZA0-003

BEARING, CRANKSHAFT (5) (RED)

$16.99

$

Usually ships in 3-6 days

0

7

Honda 13351-ZV4-000

WEIGHT A, BALANCER

$141.99

$

Usually ships in 3-6 days

0

9

Honda 13356-ZV4-000

WEIGHT B, BALANCER

$

$

Not available

10

Honda 90002-ZV4-000

BOLT, CONNECTING ROD

$

$

Not available

11

Honda 90452-ZV4-000

WASHER, TONGUED

$

$

Not available

12

Honda 90565-ZV4-000

WASHER, PLAIN (7MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90741-ZV4-000

KEY, SPECIAL (16X15)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94601-14000

CLIP, PISTON PIN (14MM)

$0.99

$

In Stock, only 2 left!

0
