BF15 A2 LA (BAAS) - Honda Outboard Engine, Made in Japan (SN: BAAS-1700001 - BAAS-1799999) TIMING BELT Parts Diagram

Outboard Engine, Made in Japan

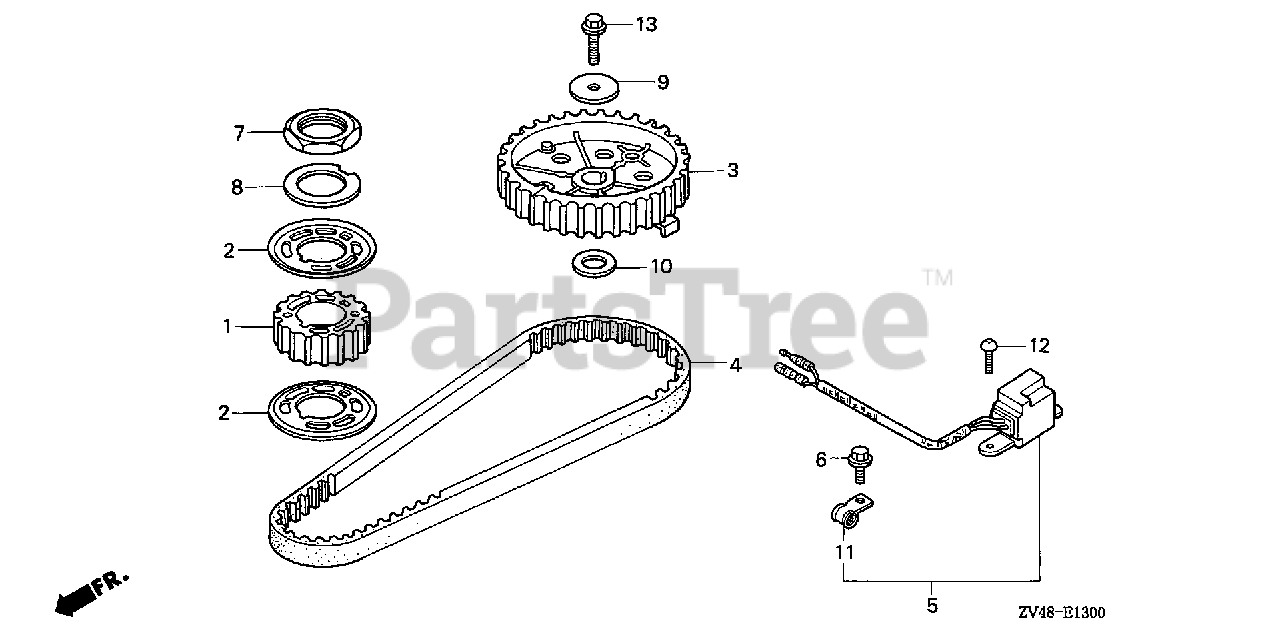

TIMING BELT Parts Diagram

  • Title

1

Honda 14315-ZV4-000

PULLEY, TIMING

$

$

Not available

2

Honda 14316-ZV4-000

FLANGE, TIMING PULLEY

$10.99

$

Usually ships in 3-6 days

0

3

Honda 14320-ZV4-000

PULLEY, CAMSHAFT

$

$

Not available

4

Honda 14400-ZV4-004

BELT, TIMING

$59.99

$

Usually ships in 3-6 days

0

5

Honda 30400-ZV4-003

COIL ASSY., PULSER

$

$

Not available

6

Honda 90013-ZV0-010

BOLT, FLANGE (6X12)

Note: Use up to Engine SN 1308859.

$2.49

$

In Stock, only 3 left!

0

6

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1308860.

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90202-ZV4-000

NUT, LOCK (27MM)

$14.99

$

Usually ships in 3-6 days

0

8

Honda 90451-ZV4-000

WASHER, LOCK (27MM)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90563-ZV4-000

WASHER, PLAIN (6MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90564-ZV4-000

WASHER, PLAIN (13MM)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90689-ZV4-003

CLIP, CORD

$

$

Not available

12

Honda 93500-05014-0B

SCREW, PAN (5X14)

Note: Use up to Engine SN 1308918.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 90182-ZW4-000

SCREW, PAN (5X14)

Note: Use from Engine SN 1308919.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06018-02

BOLT, FLANGE (6X18)

$2.99

$

Usually ships in 3-6 days

0
