BF135 AK2 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1400001 - BASJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

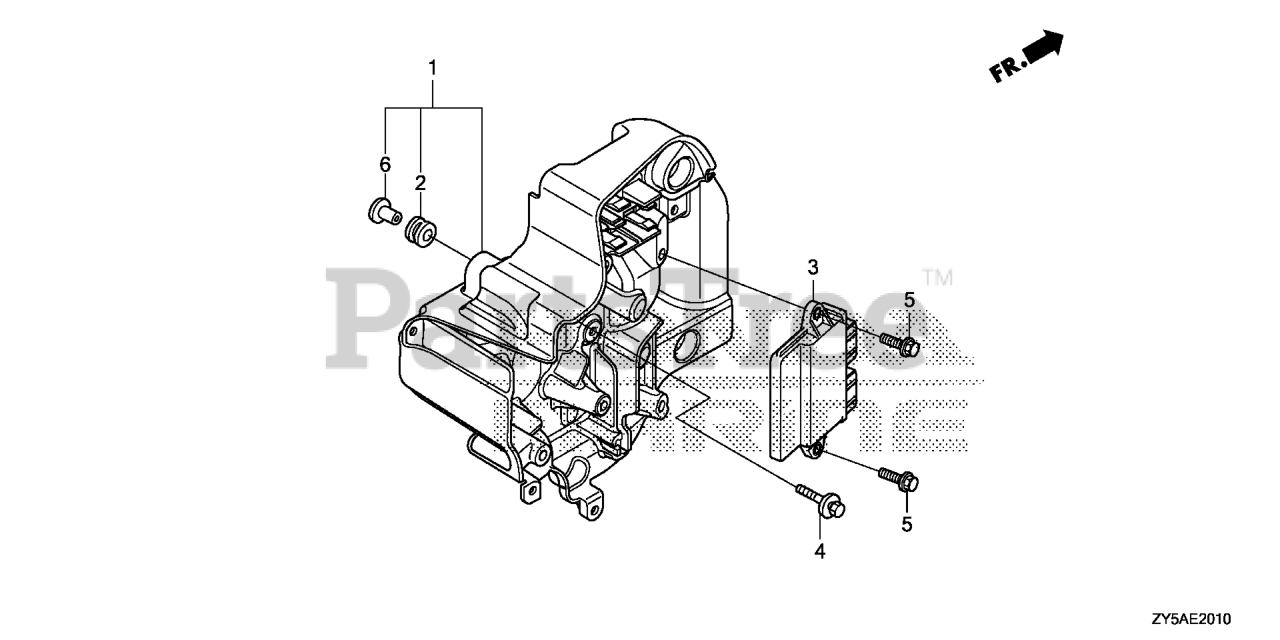

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title
1

Honda 30410-ZY6-030

CASE ASSY.

$159.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 34750-ZY5-063

CONTROL UNIT, ELECTRONIC

Note: Use up to Engine SN 1011419.

$1421.99

$

Usually ships in 3-6 days

0

4

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)

Note: Use up to Engine SN 1014205.

$3.49

$

Usually ships in 3-6 days

0

4

Honda 90003-ZZ5-M01

BOLT-WASHER (6X27)

Note: Use from Engine SN 1014206.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 91503-ZY9-M01

COLR, CDI UNIT CASE
(Superseded to 91551-ZVL-010)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0
