BF135 AK0 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1300001 - BASJ-9999999) TROLLING CONTROL SWITCH Parts Diagram

Marine Engine, Made in Japan

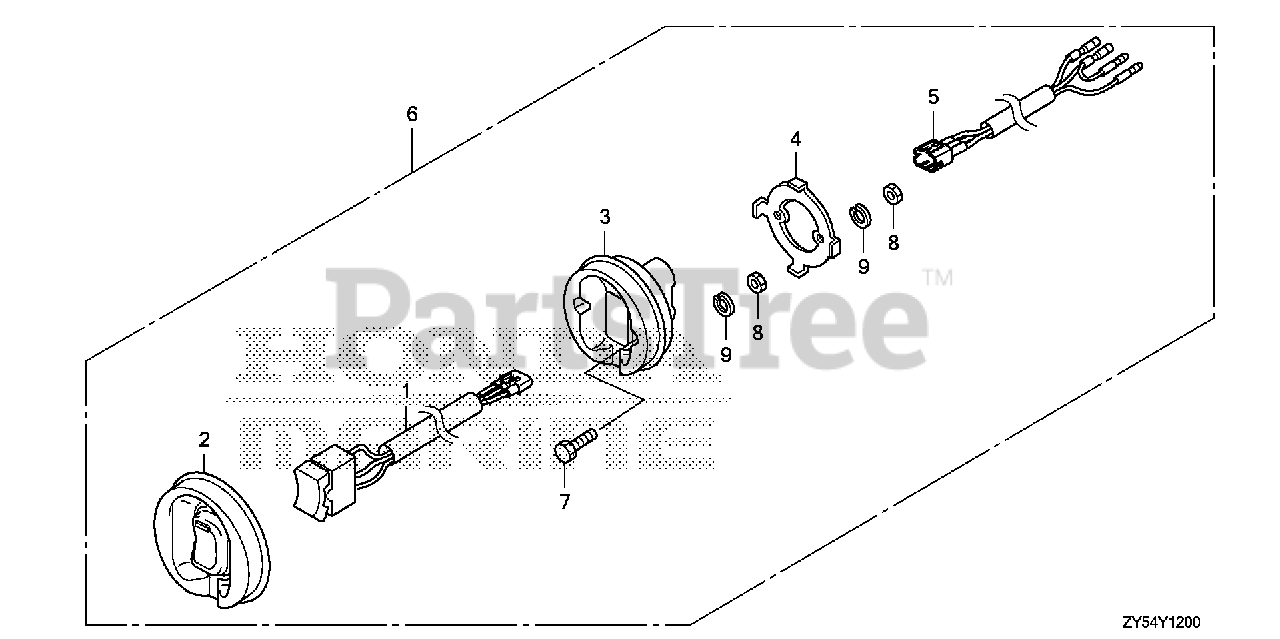

TROLLING CONTROL SWITCH Parts Diagram

  • Title

1

Honda 35340-ZZ3-741

SWITCH ASSY., TROLLING CONTROL

Note: (Optional). Use from Frame SN 1300175.

$69.99

$

Usually ships in 3-6 days

0

2

Honda 35341-ZZ3-740

RUBBER, TROLLING CONTROL SWITCH PANEL

Note: (Optional). Use from Frame SN 1300175.

$12.99

$

Usually ships in 3-6 days

0

3

Honda 35342-ZZ3-740

BODY, TROLLING CONTROL SWITCH PANEL

Note: (Optional). Use from Frame SN 1300175.

$8.99

$

Usually ships in 3-6 days

0

4

Honda 35343-ZZ3-740

BRACKET, TROLLING CONTROL SWITCH PANEL

Note: (Optional). Use from Frame SN 1300175.

$7.99

$

Usually ships in 3-6 days

0

5

Honda 35344-ZZ3-740

HARNESS, TROLLING CONTROL SWITCH PANEL

Note: (Optional). Use from Frame SN 1300175.

$33.99

$

Usually ships in 3-6 days

0

6

Honda 35345-ZZ3-741

PANEL ASSY., TROLLING CONTROL

Note: (Optional). Use from Frame SN 1300175.

$111.99

$

Usually ships in 3-6 days

0

7

Honda 92101-04020-4J

BOLT, HEX. (4X20)

Note: (Optional). Use from Frame SN 1300175.

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94001-04490-0S

NUT, HEX. (4MM) (NOT AVAILABLE)

Note: (Optional). Use from Frame SN 1300175.

$

$

Currently unavailable

9

Honda 94111-04500

WASHER, SPRING (4MM)

Note: (Optional). Use from Frame SN 1300175.

$0.99

$

Usually ships in 3-6 days

0
