BF135 AK0 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1300001 - BASJ-9999999) FUSE BOX + RELAY (1) Parts Diagram

Marine Engine, Made in Japan

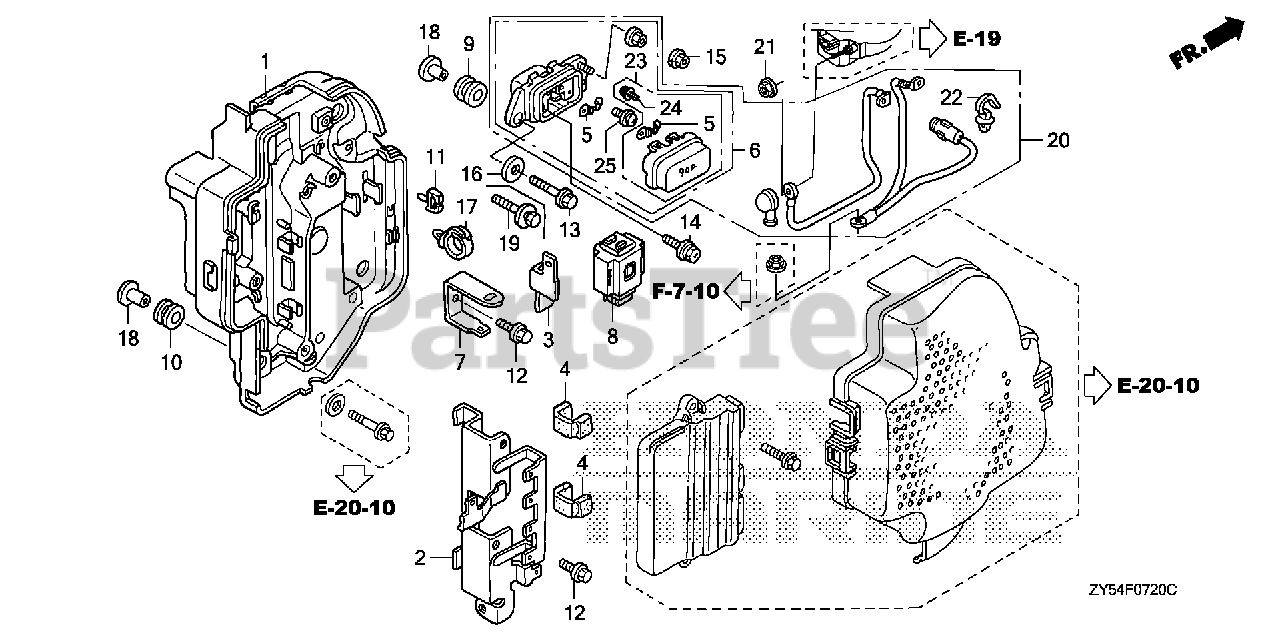

FUSE BOX + RELAY (1) Parts Diagram

  • Title
1

Honda 30416-ZY6-010

SEE PART DETAILS - PRI; CASE, ELECTRONIC PARTS

$

$

Not available

2

Honda 32102-ZY6-000

BRACKET B, CONNECTOR

$91.99

$

Usually ships in 3-6 days

0

3

Honda 32103-ZY6-000

BRACKET C, CONNECTOR

$11.99

$

Usually ships in 3-6 days

0

4

Honda 34751-ZY6-000

SUSPENSION, ECU UNIT

$6.49

$

Usually ships in 3-6 days

0

5

Honda 38201-ZW5-003

FUSE (90A)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 38210-ZY6-003

BOX ASSY., FUSE (90A)

$

$

Not available

7

Honda 38217-ZY6-000

BRACKET, FUSE BOX

$12.99

$

Usually ships in 3-6 days

0

8

Honda 38543-ZY6-003

RELAY ASSY., AIR FUEL SENSOR

$94.99

$

Usually ships in 3-6 days

0

9

Honda 38551-ZW1-000

GROMMET, RELAY

$9.49

$

Usually ships in 3-6 days

0

10

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

11

Honda 80111-KE5-000

E-CLIP, WIRE HARNESS

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

Note: Use up to Frame SN 1200697.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90108-ZY3-000

BOLT-WASHER (6X16)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

Note: Use up to Frame SN 1200697.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90681-763-A01

CLIP, WIRE HARNESS

$11.99

$

In Stock, only 1 left!

0

18

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

Note: Use from Frame SN 1200698.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 32435-ZY6-000

CABLE ASSY., ALTERNATOR FUSE

$235.99

$

Usually ships in 3-6 days

0

21

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

23

Honda 38216-ZY6-003

COVER ASSY., FUSE (90A)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 90105-ZW5-003

SCREW-WASHER (3X7)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90135-ZY3-003

SCREW-WASHER (5X12)

$2.99

$

Usually ships in 3-6 days

0
