BF135 A4 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1000001 - BASJ-1099999) REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) Parts Diagram

Marine Engine, Made in Japan

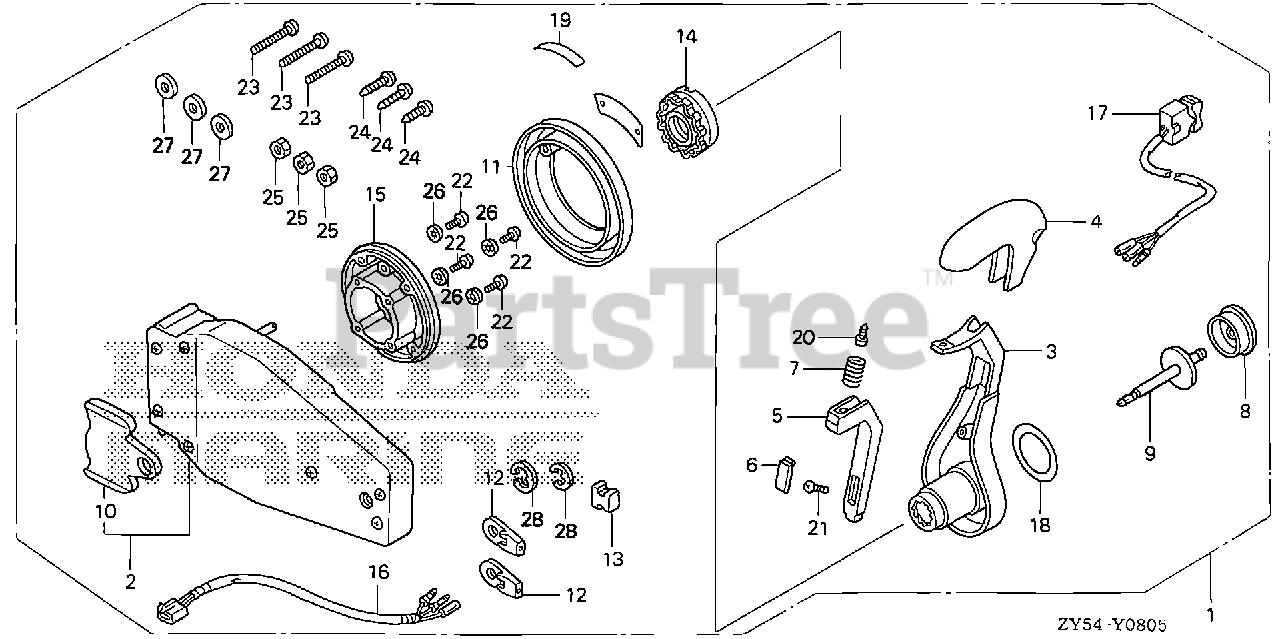

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) Parts Diagram

  • Title

1

Honda 06240-ZW7-U10

BOX KIT, REMOTE CONTROL (FLUSH MOUNT)(L)

Note: (Optional).

$362.99

$

Usually ships in 3-6 days

0

2

Honda 24810-ZW7-U11

HOUSING ASSY., L. (INNER) (FLUSH MOUNT)

Note: (Optional).

$648.99

$

Usually ships in 3-6 days

0

3

Honda 24811-ZW7-U01

HANDLE, REMOTE CONTROL

Note: (Optional).

$160.99

$

Usually ships in 3-6 days

0

4

Honda 24812-ZW7-U01

COVER, GRIP

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

5

Honda 24813-ZW7-U01

ARM, NEUTRAL LOCK

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

6

Honda 24814-ZW7-U01

COVER, LOCK ARM

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 24815-ZW7-U01

SPRING, NEUTRAL LOCK ARM

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 24816-ZW5-U01

BUTTON, THROTTLE

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

9

Honda 24817-ZW7-U01

SHAFT, THROTTLE BUTTON

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

10

Honda 24826-ZW5-U01

PLATE, DWELL

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

11

Honda 24830-ZW7-U01

COVER ASSY.

Note: (Optional).

$36.99

$

Usually ships in 3-6 days

0

12

Honda 24831-ZW5-U01

TERMINAL, CABLE

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

13

Honda 24832-ZW5-U01

SPACER, CABLE CLAMP

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 24832-ZW7-U01

HOLDER, NEUTRAL LOCK

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

15

Honda 24833-ZW7-U01

BASE

Note: (Optional).

$45.99

$

Usually ships in 3-6 days

0

16

Honda 32530-ZW7-U20

SUB-HARNESS ASSY., POWER TRIM-TILT (C)

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

17

Honda 35370-ZW7-U02

SWITCH ASSY., POWER TRIM-TILT (C)

Note: (Optional).

$74.99

$

Usually ships in 3-6 days

0

18

Honda 87701-ZW7-U01

MARK, HANDLE FLUSH MOUNT

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

19

Honda 87703-ZW7-U00

MARK, FLUSH MOUNT

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

20

Honda 90101-ZW5-U00

SCREW, PAN (5X16)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90101-ZW7-U01

SCREW, TRUSS (4X12)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90102-ZW7-U01

SCREW, PAN (5X30)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90103-ZW7-U01

SCREW, PAN (6X35)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90104-ZW7-U01

SCREW, TAPPING (6X30)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

25

Honda 90301-ZW7-U01

NUT, HEX. (6MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90501-ZW5-U00

WASHER, LOCK (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90502-ZW7-U00

WASHER, PLAIN (6MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94540-06029

E-RING (6MM)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
