BF135 A4 LA (BARJ) - Honda Marine Engine, Made in Japan (SN: BARJ-1000001 - BARJ-1099999) THROTTLE BODY Parts Diagram

Marine Engine, Made in Japan

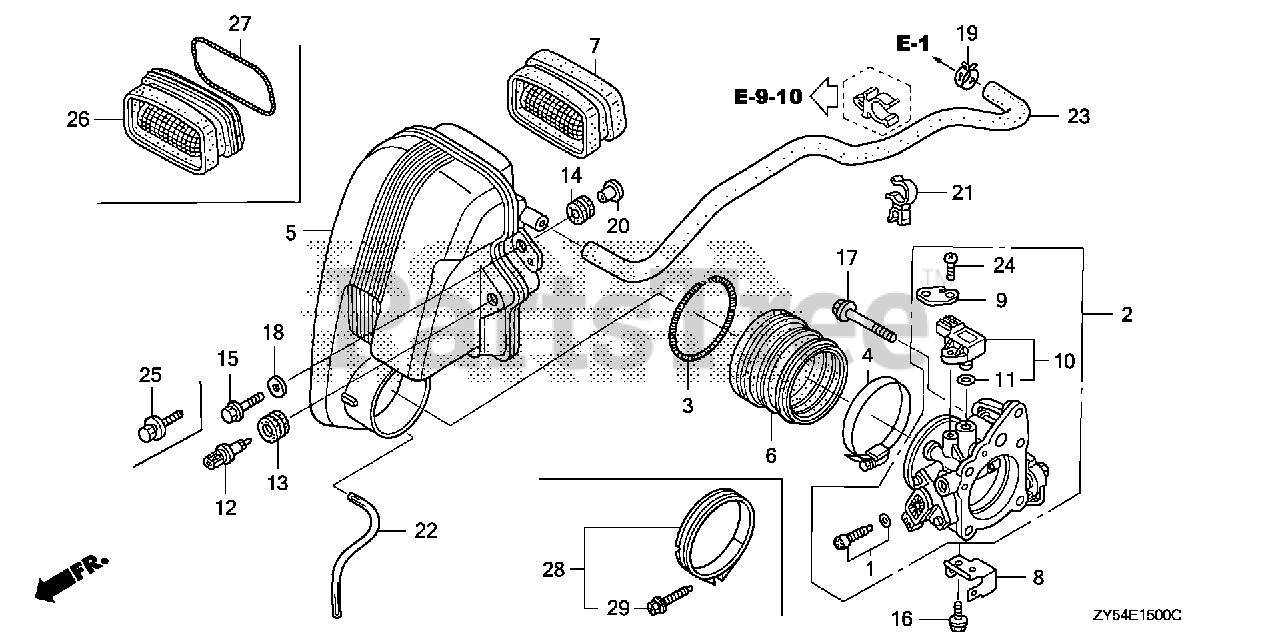

THROTTLE BODY Parts Diagram

  • Title

1

Honda 16016-ZY6-003

SCREW SET

$8.99

$

Usually ships in 3-6 days

0

2

Honda 16400-ZY6-003

BODY ASSY., THROTTLE

$1069.99

$

Usually ships in 3-6 days

0

3

Honda 17249-PY3-000

SPRING, AIR FLOW TUBE

$12.99

$

Usually ships in 3-6 days

0

4

Honda 17315-ZY9-000

BAND, AIR FLOW
(Superseded to 17315-ZY9-M01)

$16.99

$

Usually ships in 3-6 days

0

5

Honda 17371-ZY6-020

CASE, MUFFLER

Note: Use from Engine SN 1001886.

$252.99

$

Usually ships in 3-6 days

0

5

Honda 17371-ZY6-020

CASE, MUFFLER

Note: Use up to Engine SN 1002844.

$252.99

$

Usually ships in 3-6 days

0

5

Honda 17371-ZY6-020

CASE, MUFFLER

Note: Use from Engine SN 1002845.

$252.99

$

Usually ships in 3-6 days

0

6

Honda 17374-ZY6-000

GROMMET, MUFFLER

$34.99

$

Usually ships in 3-6 days

0

7

Honda 17397-ZY6-013

GROMMET, MUFFLER DUCT

$99.99

$

Usually ships in 3-6 days

0

7

Honda 17397-ZY6-013

GROMMET, MUFFLER DUCT

Note: Use up to Engine SN 1002844.

$99.99

$

Usually ships in 3-6 days

0

8

Honda 32115-ZY6-000

BRACKET E, HARNESS CLIP

$11.99

$

Usually ships in 3-6 days

0

9

Honda 32128-ZY3-000

BRACKET, SENSOR WIRE

$4.99

$

Usually ships in 3-6 days

0

10

Honda 37830-PGK-A01

SENSOR ASSY., MAP

$155.99

$

Usually ships in 3-6 days

0

11

Honda 37835-PGK-A01

O-RING

$12.99

$

Usually ships in 3-6 days

0

12

Honda 37880-PLC-004

SENSOR ASSY., AIR TEMPERATURE (MATSUSHITA DENSHI)

$86.99

$

Usually ships in 3-6 days

0

13

Honda 37881-P2A-000

GROMMET, TA SENSOR

$6.99

$

Usually ships in 3-6 days

0

14

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90016-ZW9-000

BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

Note: Use up to Engine SN 1002491.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90127-ZV1-010

BOLT, FLANGE (8X60)
(Superseded to 90027-ZY9-M01)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

Note: Use up to Engine SN 1002491.

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90601-ZV3-030

SEE PART DETAILS - PRI; CLAMP, TUBE (D17)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 91595-SF1-003

CLAMP, FUEL HOSE

$3.49

$

Usually ships in 3-6 days

0

22

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X160)

$36.99

$

Usually ships in 3-6 days

0

23

Honda 95005-12001-20M

BULK HOSE, VACUUM (12X1000) (12X740)

$50.99

$

Usually ships in 3-6 days

0

24

Honda 90006-ZY6-000

SCREW, PAN (5X18)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

Note: Use from Engine SN 1002492.

$3.99

$

Usually ships in 3-6 days

0

26

Honda 17397-ZY6-013

GROMMET, MUFFLER DUCT

Note: Use from Engine SN 1002845.

$99.99

$

Usually ships in 3-6 days

0

27

Honda 17398-ZY6-000

SPRING, MUFFLER DUCT GROMMET

Note: Use from Engine SN 1002845.

$7.49

$

Usually ships in 3-6 days

0
