BF130 AY LCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1100001 - BZBH-1199999) REMOTE CONTROL (SIDE MOUNT) Parts Diagram

Marine Engine, Made in Japan

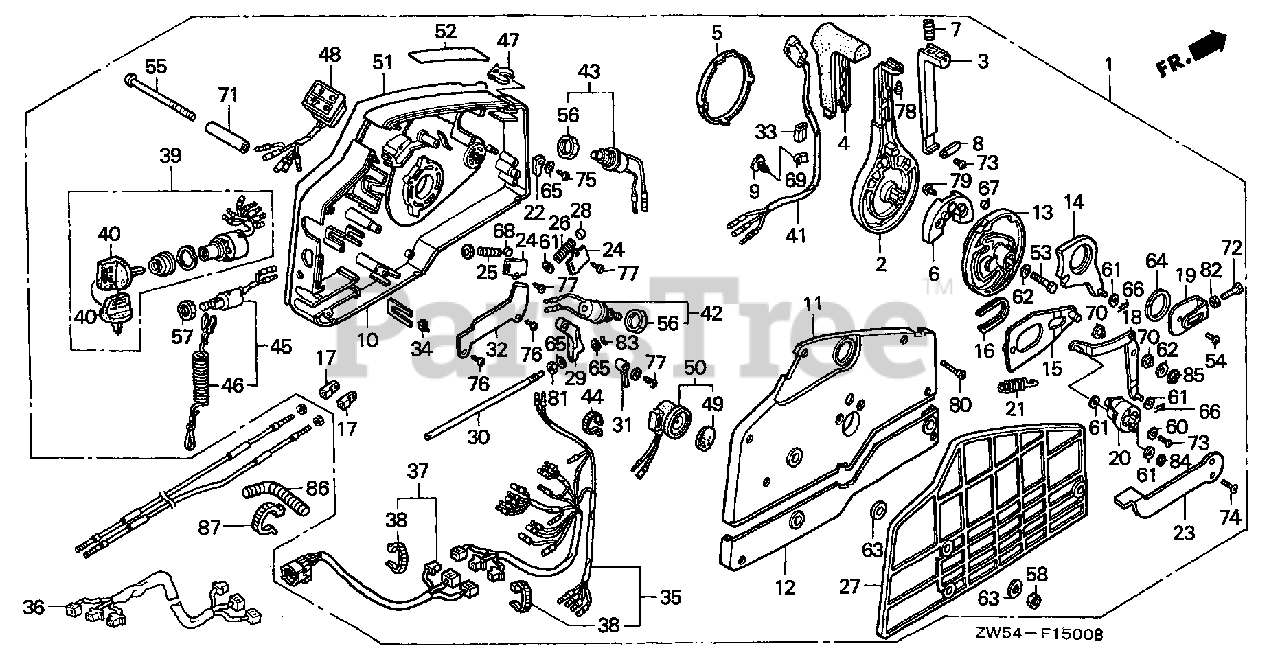

REMOTE CONTROL (SIDE MOUNT) Parts Diagram

  • Title

1

Honda 24800-ZW4-H12

SEE PART DETAILS - SUP; BOX ASSY., REMOTE CONTROL

$

$

Currently unavailable

1

Honda 24800-ZW4-H14

SEE PART DETAILS - PRI; BOX ASSY., REMOTE CONTROL
(Superseded to 24800-ZW2-A02)

$487.99

$

Usually ships in 3-6 days

0

1

Honda 24800-ZW5-620

SEE PART DETAILS - SUP; BOX ASSY., REMOTE CONTROL
(Superseded to 24800-ZW5-621)

$487.99

$

Usually ships in 3-6 days

0

1

Honda 24800-ZW5-621

SEE PART DETAILS - SUP; BOX ASSY., REMOTE CONTROL
(Superseded to 24800-ZW4-H15)

$487.99

$

Usually ships in 3-6 days

0

2

Honda 24811-ZV5-000

SEE PART DETAILS - SUP; HANDLE, REMOTE CONTROL
(Superseded to 24811-ZV5-010)

$151.99

$

Usually ships in 3-6 days

0

2

Honda 24811-ZV5-010

SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL

$151.99

$

Usually ships in 3-6 days

0

3

Honda 24812-ZV5-000

LEVER, HANDLE LOCK

$

$

Not available

4

Honda 24813-ZV5-000

GRIP, REMOTE CONTROL HANDLE

$52.99

$

Usually ships in 3-6 days

0

5

Honda 24814-ZV5-010

SEE PART DETAILS - PRI; CAP, HANDLE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 24815-ZV5-000

SEE PART DETAILS - SUP; BLOCK, NEUTRAL LOCK
(Superseded to 24815-ZV5-010)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 24815-ZV5-010

SEE PART DETAILS - PRI; BLOCK, NEUTRAL LOCK

$10.99

$

Usually ships in 3-6 days

0

7

Honda 24816-ZV5-000

SPRING, REMOTE CONTROL HANDLE

$5.49

$

Usually ships in 3-6 days

0

8

Honda 24817-ZV5-000

PLATE, LEVER SETTING

$5.49

$

Usually ships in 3-6 days

0

9

Honda 24818-ZV5-003

CLAMP, HARNESS

$1.99

$

Usually ships in 3-6 days

0

10

Honda 24820-ZV5-010

SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX

$134.99

$

Usually ships in 3-6 days

0

11

Honda 24830-ZV5-010

HOUSING, REMOTE CONTROL BOX

$74.99

$

Usually ships in 3-6 days

0

12

Honda 24836-ZV5-000

HOUSING, REMOTE CONTROL BOX

$44.99

$

Usually ships in 3-6 days

0

13

Honda 24841-ZV5-000

WHEEL, CONTROL

$76.99

$

Usually ships in 3-6 days

0

14

Honda 24845-ZV5-000

ARM, SHIFT LINK

$51.99

$

Usually ships in 3-6 days

0

15

Honda 24850-ZV5-000

PLATE, SLIDING

$64.99

$

Usually ships in 3-6 days

0

16

Honda 24854-ZV5-000

COLLAR, SLIDING PLATE

$10.99

$

Usually ships in 3-6 days

0

17

Honda 24855-ZV5-000

PIVOT, SHIFT

$10.99

$

Usually ships in 3-6 days

0

18

Honda 24860-ZV5-000

ARM, LINK JOINT

$51.99

$

Usually ships in 3-6 days

0

19

Honda 24865-ZV5-000

BRACKET, LINK JOINT

$23.99

$

Usually ships in 3-6 days

0

20

Honda 24875-ZV5-000

WHEEL, ACCELERATOR

$29.99

$

Usually ships in 3-6 days

0

21

Honda 24876-ZV5-000

SPRING, ACCELERATOR WHEEL

$5.49

$

Usually ships in 3-6 days

0

22

Honda 24877-ZV5-000

CAM, STARTER SWITCH

$6.49

$

Usually ships in 3-6 days

0

23

Honda 24878-ZV5-000

LEVER, IDLE

$68.99

$

Usually ships in 3-6 days

0

24

Honda 24881-ZV5-000

PLATE, SPRING SETTING

$5.49

$

Usually ships in 3-6 days

0

25

Honda 24883-ZV5-000

SPRING, SHIFT CLICK

$5.49

$

Usually ships in 3-6 days

0

26

Honda 24884-ZV5-000

SPRING, CHOKE RETURN

$5.49

$

Usually ships in 3-6 days

0

27

Honda 24885-ZV5-000

SPACER, REMOTE CONTROL BOX

$88.99

$

Usually ships in 3-6 days

0

28

Honda 24887-ZV5-000

SPACER, CLICK SPRING

$6.49

$

Usually ships in 3-6 days

0

29

Honda 24891-ZV5-000

BLOCK, THROTTLE FRICTION

$10.99

$

Usually ships in 3-6 days

0

30

Honda 24892-ZV5-000

BOLT, FRICTION

$20.99

$

Usually ships in 3-6 days

0

31

Honda 24894-ZV5-000

SPACER, NEUTRAL SWITCH

$7.99

$

Usually ships in 3-6 days

0

32

Honda 24895-ZV5-000

CLAMP, POWER TILT CORD

$8.99

$

Usually ships in 3-6 days

0

33

Honda 24897-ZV5-000

PIPE, HARNESS GUIDE

$6.99

$

Usually ships in 3-6 days

0

34

Honda 24898-ZV5-000

SPACER, CABLE CLAMP

$6.49

$

Usually ships in 3-6 days

0

35

Honda 32530-ZW1-010

CABLE ASSY., REMOTE CONTROL

$

$

Not available

36

Honda 32570-ZW1-901

CABLE ASSY., REMOTE CONTROL

$

$

Not available

37

Honda 32580-ZW1-V01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

$

$

Not available

38

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

$176.99

$

Usually ships in 3-6 days

0

40

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH

$10.99

$

Usually ships in 3-6 days

0

41

Honda 35370-ZV5-821

SEE PART DETAILS - SUP; SWITCH ASSY., POWER TRIM-TILT

$

$

Currently unavailable

41

Honda 35370-ZV5-822

SEE PART DETAILS - SUP; SWITCH ASSY., POWER TRIM-TILT

$

$

Not available

41

Honda 35370-ZV5-823

SEE PART DETAILS - PRI; SWITCH ASSY., POWER TRIM-TILT

$83.99

$

Usually ships in 3-6 days

0

42

Honda 35495-ZV5-821

SWITCH ASSY., THROTTLE

$70.99

$

Usually ships in 3-6 days

0

43

Honda 35630-ZV5-003

SWITCH ASSY., SOLENOID

$

$

Not available

44

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.49

$

Usually ships in 3-6 days

0

45

Honda 36180-ZV5-013

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$76.99

$

Usually ships in 3-6 days

0

45

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$76.99

$

Usually ships in 3-6 days

0

46

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

$24.99

$

Usually ships in 3-6 days

0

47

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

$5.99

$

Usually ships in 3-6 days

0

47

Honda 36187-ZV4-652

SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK

$5.99

$

Usually ships in 3-6 days

0

48

Honda 37210-ZV5-013

SEE PART DETAILS - PRI; LAMP ASSY., INDICATION (2-LED)

$169.99

$

Usually ships in 3-6 days

0

49

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

$6.99

$

Usually ships in 3-6 days

0

50

Honda 38410-ZV5-003

BUZZER, WARNING

$76.99

$

Usually ships in 3-6 days

0

51

Honda 87701-ZV5-000

SEE PART DETAILS - SUP; PLATE, REMOTE CONTROL

$

$

Currently unavailable

51

Honda 87701-ZV5-010

SEE PART DETAILS - PRI; PLATE, REMOTE CONTROL

$76.99

$

Usually ships in 3-6 days

0

52

Honda 87702-ZW5-620

MARK, FAST IDLE

$11.99

$

Usually ships in 3-6 days

0

53

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.49

$

Usually ships in 3-6 days

0

54

Honda 90105-MM4-000

SCREW, PAN (6X10)

$2.99

$

Usually ships in 3-6 days

0

55

Honda 90125-ZV5-000

SCREW (6X95)

$9.49

$

Usually ships in 3-6 days

0

56

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

57

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

58

Honda 90304-ZV4-000

NUT, HEX. (6MM)

$2.99

$

Usually ships in 3-6 days

0

60

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

$3.99

$

In Stock, only 2 left!

0

61

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

62

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

63

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

64

Honda 90557-ZV5-000

WASHER (28MM)

$4.49

$

Usually ships in 3-6 days

0

65

Honda 90561-ZV5-000

WASHER, PLAIN (4MM)

$2.49

$

Usually ships in 3-6 days

0

66

Honda 90751-ZV5-000

PIN, LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

67

Honda 90772-ZV5-000

PIN (6X6)

$5.49

$

Usually ships in 3-6 days

0

68

Honda 91151-ZV5-000

ROLLER, CLICK

$4.99

$

Usually ships in 3-6 days

0

69

Honda 91475-SB6-000

CLIP, WIRE HARNESS (6.3MM)

$10.99

$

Usually ships in 3-6 days

0

70

Honda 91567-ZV5-000

COLLAR, LINK JOINT

$3.99

$

Usually ships in 3-6 days

0

71

Honda 91570-ZV5-000

COLLAR, DISTANCE (6X10X43.5)

$10.99

$

Usually ships in 3-6 days

0

72

Honda 92101-05016-4J

BOLT, HEX. (5X16)

$1.99

$

Usually ships in 3-6 days

0

73

Honda 93500-05010-4J

SCREW, PAN (5X10)

$1.99

$

Usually ships in 3-6 days

0

74

Honda 93700-05012-4J

SCREW, OVAL (5X12)

$2.49

$

Usually ships in 3-6 days

0

75

Honda 93901-242J0

SCREW, TAPPING (4X10)

$1.99

$

Usually ships in 3-6 days

0

76

Honda 93901-250J0

SCREW, TAPPING (5X8)

$2.49

$

Usually ships in 3-6 days

0

77

Honda 93901-251J0

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

78

Honda 93901-252J0

SCREW, TAPPING (5X12)

$2.49

$

Usually ships in 3-6 days

0

79

Honda 93903-262J0

SCREW, TAPPING (6X16)

$3.49

$

Usually ships in 3-6 days

0

80

Honda 93905-255J0

SCREW, TAPPING (5X25)

$3.49

$

Usually ships in 3-6 days

0

81

Honda 94001-06490

SEE PART DETAILS - SUP; NUT, HEX. (6MM)

$

$

Currently unavailable

81

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

82

Honda 94002-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

83

Honda 94540-03029

E-RING (3MM)

$1.99

$

Usually ships in 3-6 days

0

84

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 3 left!

0

85

Honda 94540-07029

E-RING (7MM)

$4.99

$

Usually ships in 3-6 days

0

86

Honda 17736-ZW1-000

TUBE, CORRUGATE (28MM)

$5.49

$

Usually ships in 3-6 days

0

87

Honda 91058-MG9-681

BAND, SELF-LOCK

$2.99

$

Usually ships in 3-6 days

0
