BF130 AX LCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1000001 - BZBH-1099999) THROTTLE BODY Parts Diagram

Marine Engine, Made in Japan

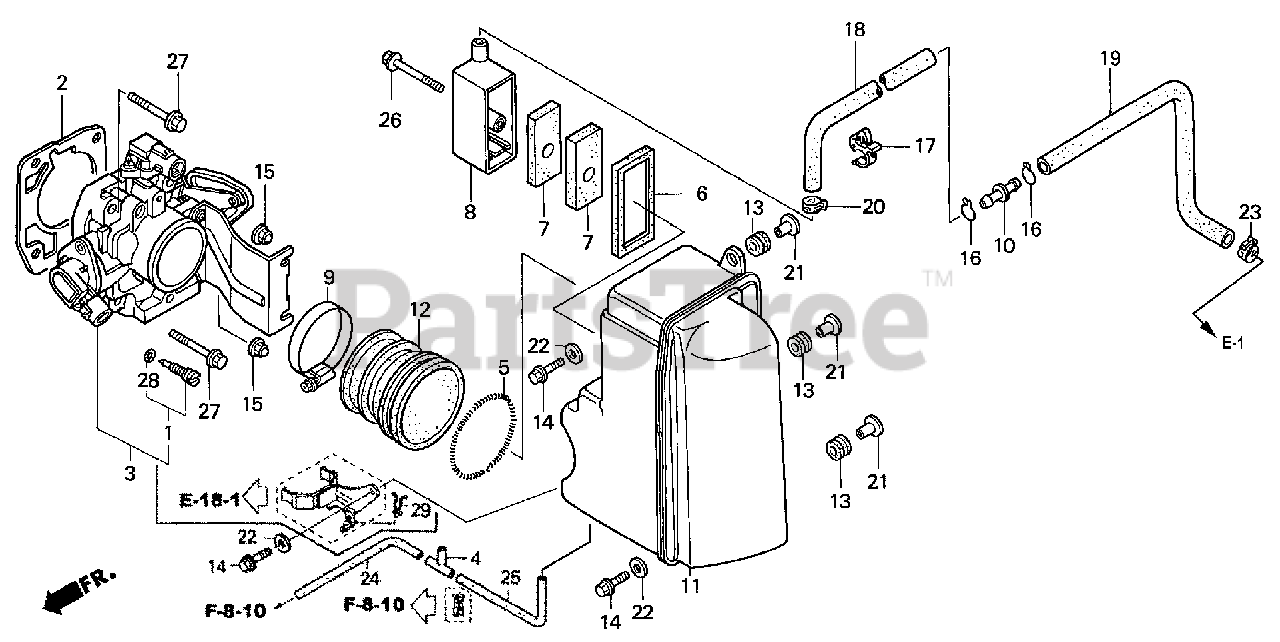

THROTTLE BODY Parts Diagram

  • Title

1

Honda 16016-PM6-005

SCREW SET

$30.99

$

Usually ships in 3-6 days

0

2

Honda 16176-P0A-004

GASKET, THROTTLE BODY (NIPPON LEAKLESS)

$12.99

$

Usually ships in 3-6 days

0

3

Honda 16400-ZW5-013

BODY ASSY., THROTTLE

$552.99

$

Usually ships in 3-6 days

0

4

Honda 17201-MG9-000

JOINT A, VACUUM TUBE

$20.99

$

Usually ships in 3-6 days

0

5

Honda 17249-PS4-000

SPRING, AIR FLOW TUBE

$12.99

$

Usually ships in 3-6 days

0

6

Honda 17272-PM3-000

GASKET, BREATHER

$7.99

$

Usually ships in 3-6 days

0

7

Honda 17274-PM3-000

ELEMENT, BREATHER

$6.49

$

Usually ships in 3-6 days

0

8

Honda 17275-ZW5-000

SEE PART DETAILS - PRI; COVER, BREATHER ELEMENT

$30.99

$

Usually ships in 3-6 days

0

9

Honda 17316-ZW5-003

CLAMP, AIR FLOW (70)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 17359-419-670

JOINT, BREATHER TUBE

$2.99

$

Usually ships in 3-6 days

0

11

Honda 17371-ZW5-000

CASE, MUFFLER

$264.99

$

Usually ships in 3-6 days

0

12

Honda 17374-ZW5-000

GROMMET, MUFFLER

$33.99

$

Usually ships in 3-6 days

0

13

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90121-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25)
(Superseded to 90121-ZV0-010)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90121-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90208-438-000

NUT, CAP (8MM)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90605-ZV4-000

CLIP, TUBE (B12.5)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90679-679-004

CLIP, CABLE

$12.99

$

Usually ships in 3-6 days

0

18

Honda 91402-ZW5-000

TUBE A, BREATHER

$11.99

$

Usually ships in 3-6 days

0

19

Honda 91403-ZW5-000

TUBE B, BREATHER

$24.99

$

Usually ships in 3-6 days

0

20

Honda 90604-ZW5-030

SEE PART DETAILS - PRI; CLAMP, TUBE (D15)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 94103-06200

WASHER, PLAIN (6MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90603-ZW5-010

SEE PART DETAILS - SUP; CLAMP, TUBE (D13)

$

$

Not available

24

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X150)

$28.99

$

In Stock, only 1 left!

0

25

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X190)

$28.99

$

In Stock, only 1 left!

0

26

Honda 95701-06050-02

BOLT, FLANGE (6X50)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 95701-08040-02

BOLT, FLANGE (8X40)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 16075-P07-000

O-RING (9.8X1.9)

$6.49

$

Usually ships in 3-6 days

0
