BF130 A4 LCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1500001 - BZBH-1599999) INTAKE MANIFOLD Parts Diagram

Marine Engine, Made in Japan

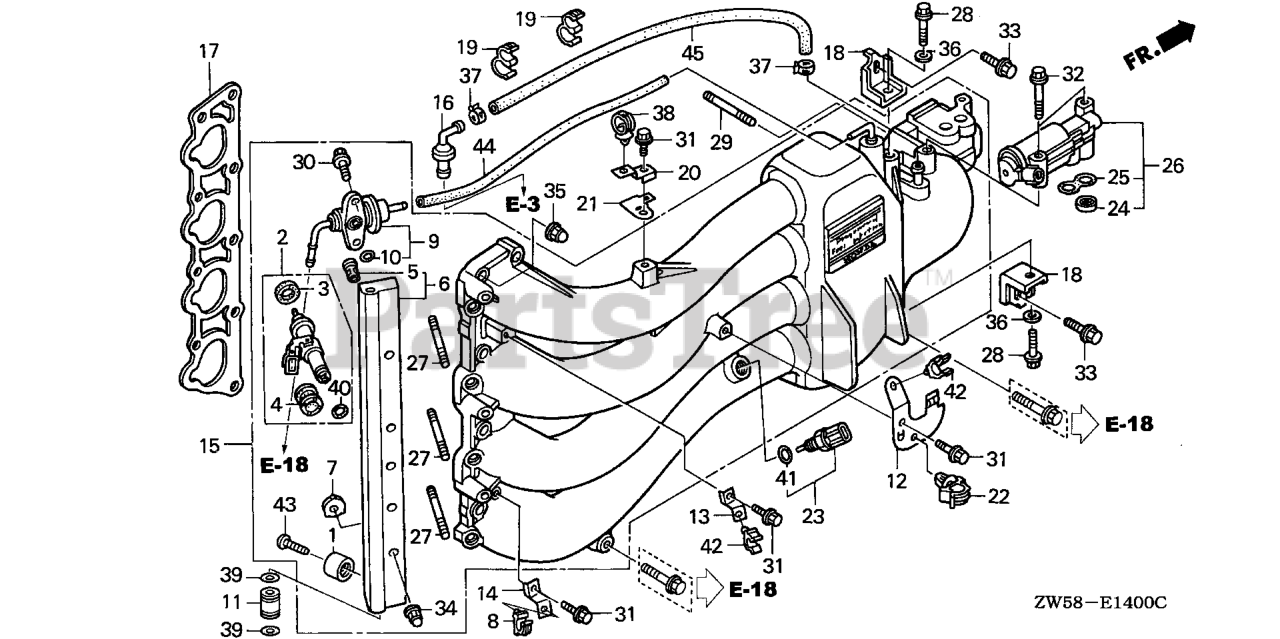

INTAKE MANIFOLD Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 16406-ZW5-000

INJECTOR SET

$164.99

$

Usually ships in 3-6 days

0

3

Honda 16472-PH7-003

SEE PART DETAILS - SUP; SEAL RING, INJECTOR (OTSUKA)
(Superseded to 16472-P0H-A01)

$28.99

$

Usually ships in 3-6 days

0

4

Honda 16473-PD6-000

SEE PART DETAILS - SUP; CUSHION RING, INJECTOR (OTSUKA)
(Superseded to 16473-P10-A01)

$10.99

$

Usually ships in 3-6 days

0

4

Honda 16473-P10-A01

SEE PART DETAILS - PRI; CUSHION RING, INJECTOR (NOK)

$10.99

$

Usually ships in 3-6 days

0

5

Honda 16614-P5G-003

MESH, FUEL FILTER

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16620-ZW5-020

SEE PART DETAILS - PRI; LINE, FUEL

$214.99

$

Usually ships in 3-6 days

0

7

Honda 16638-PH3-S00

INSULATOR, FUEL PIPE

$7.49

$

Usually ships in 3-6 days

0

8

Honda 16731-ZE2-003

CLIP, TUBE (Honda Code 2026094).

$2.99

$

In Stock, only 2 left!

0

9

Honda 16740-ZW5-003

REGULATOR ASSY., PRESSURE

$122.99

$

Usually ships in 3-6 days

0

10

Honda 16741-PG7-005

O-RING, PRESSURE REGULATOR

$5.49

$

Usually ships in 3-6 days

0

11

Honda 16752-ZY3-000

JOINT, FUEL PIPE

$9.99

$

Usually ships in 3-6 days

0

12

Honda 16816-ZW5-010

SEE PART DETAILS - PRI; BRACKET, HOSE CLAMP (A)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 16817-ZW5-010

SEE PART DETAILS - PRI; BRACKET, HOSE CLAMP (B)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 16818-ZW5-010

SEE PART DETAILS - PRI; BRACKET, TUBE CLAMP

$6.99

$

Usually ships in 3-6 days

0

15

Honda 17100-ZW5-030ZA

SEE PART DETAILS - PRI; MANIFOLD ASSY., IN. *NH8* (DARK GRAY)

$2111.99

$

Usually ships in 3-6 days

0

16

Honda 17130-PK1-003

VALVE ASSY., PCV

$62.99

$

Usually ships in 3-6 days

0

17

Honda 17151-ZW5-000

GASKET, IN. MANIFOLD

$17.99

$

Usually ships in 3-6 days

0

18

Honda 17161-ZW5-010

STAY, IN. MANIFOLD (A)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 17439-PY3-A01

CLAMP, TUBE (7.5-11.5) (BLACK)

$7.99

$

Usually ships in 3-6 days

0

20

Honda 32112-ZW5-010

BRACKET, CLIP A

$5.99

$

Usually ships in 3-6 days

0

21

Honda 32118-ZW5-010

BRACKET, CONNECTOR (D)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

23

Honda 35665-ZW5-003

SENSOR ASSY., AIR TEMPERATURE

$26.99

$

Usually ships in 3-6 days

0

24

Honda 36454-PS4-003

FILTER, ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)

$14.99

$

Usually ships in 3-6 days

0

25

Honda 36455-PV0-000

GASKET, ELECTRONIC AIR CONTROL VALVE (KEIHIN)

$7.49

$

Usually ships in 3-6 days

0

26

Honda 36550-ZW5-003

VALVE ASSY., ELECTRONIC AIR CONTROL

$328.99

$

Usually ships in 3-6 days

0

27

Honda 90003-ZW5-010

BOLT 2, STUD (6X35)

$5.49

$

Usually ships in 3-6 days

0

28

Honda 90004-ZW5-010

BOLT, SPECIAL (8X16)

$11.99

$

Usually ships in 3-6 days

0

29

Honda 90005-ZW5-010

BOLT, STUD (8X35)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90126-ZW4-000

BOLT, FLANGE (8X45)
(Superseded to 90026-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

33

Honda 90150-ZW4-000

BOLT, FLANGE (8X18)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90204-ZW5-000

SEE PART DETAILS - SUP; NUT, CAP (6MM)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 90201-HA0-000

NUT, CAP (10MM)

$8.99

$

Usually ships in 3-6 days

0

36

Honda 90403-ZW5-010

WASHER (14X23)

$9.49

$

Usually ships in 3-6 days

0

37

Honda 90602-ZW5-030

CLAMP, TUBE (D12)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$4.49

$

Usually ships in 3-6 days

0

39

Honda 91301-MJ0-003

O-RING (7.8X1.9) (ARAI)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 16074-ZY3-000

SEE PART DETAILS - SUP; O-RING
(Superseded to 91301-P2F-A01)

$4.99

$

Usually ships in 3-6 days

0

40

Honda 91301-P2F-A01

SEE PART DETAILS - PRI; O-RING (7.3X2.2) (NOK)

$4.99

$

Usually ships in 3-6 days

0

41

Honda 91303-P0A-A02

O-RING

$5.49

$

Usually ships in 3-6 days

0

42

Honda 91594-SR3-911

CLAMP, PURGE HOSE

$12.99

$

Usually ships in 3-6 days

0

43

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

44

Honda 95001-35003-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X120) (Honda Code 4260329).

$31.99

$

In Stock, only 1 left!

0

45

Honda 95005-75001-20M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (7.3X1000) (7.5X160)

$33.99

$

Usually ships in 3-6 days

0
