BF130 A3 XCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1400001 - BZBH-1499999) SHIFT SHAFT Parts Diagram

Marine Engine, Made in Japan

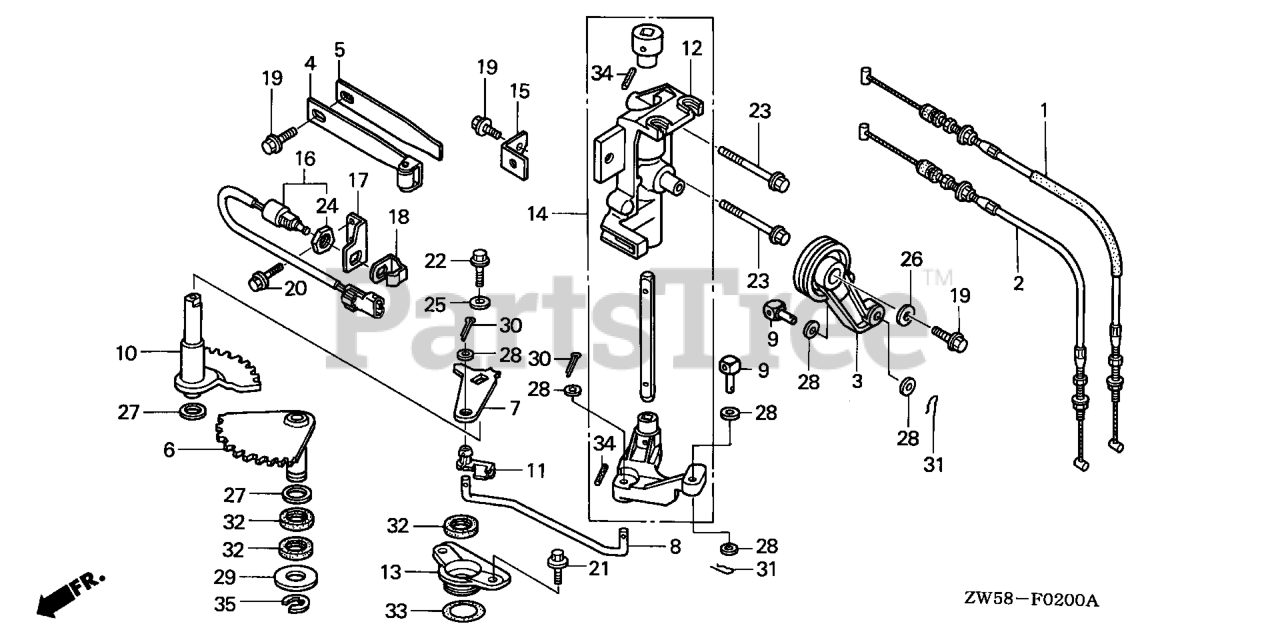

SHIFT SHAFT Parts Diagram

  • Title

1

Honda 17910-ZW5-003

CABLE A, THROTTLE

$29.99

$

Usually ships in 3-6 days

0

2

Honda 17920-ZW5-003

CABLE B, THROTTLE

$29.99

$

Usually ships in 3-6 days

0

3

Honda 17931-ZW5-000

ARM, THROTTLE

$31.99

$

Usually ships in 3-6 days

0

4

Honda 24210-ZW1-010

SEE PART DETAILS - PRI; SPRING, CLICK

$14.99

$

Usually ships in 3-6 days

0

5

Honda 24221-ZW1-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

$

$

Not available

6

Honda 24610-ZW5-010

SHAFT, SHIFT (A)

$133.99

$

Usually ships in 3-6 days

0

7

Honda 24612-ZW1-010

SEE PART DETAILS - PRI; ARM, SHIFT

$27.99

$

Usually ships in 3-6 days

0

8

Honda 24613-ZW5-000

ROD, LINK

$28.99

$

Usually ships in 3-6 days

0

9

Honda 24618-ZV5-000

PIVOT, SHIFT

$19.99

$

Usually ships in 3-6 days

0

10

Honda 24620-ZW5-000

SHAFT, SHIFT (B)

$128.99

$

Usually ships in 3-6 days

0

11

Honda 24621-ZW5-000

BUSH, SHAFT

$17.99

$

Usually ships in 3-6 days

0

12

Honda 24628-ZW5-000

BRACKET, SHIFT LINK

$81.99

$

Usually ships in 3-6 days

0

13

Honda 24629-ZW1-000

HOLDER, SEAL

$30.99

$

Usually ships in 3-6 days

0

14

Honda 24630-ZW5-000

SEE PART DETAILS - PRI; LINK, SHIFT

$

$

Not available

15

Honda 32115-ZW5-010

SEE PART DETAILS - PRI; BRACKET, CLIP (D)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 04302-ZW5-010

SEE PART DETAILS - PRI; SWITCH ASSY., NEUTRAL
(Superseded to 04302-ZW5-020)

$47.99

$

Usually ships in 3-6 days

0

17

Honda 35476-ZW1-010

BRACKET, NEUTRAL SWITCH

$15.99

$

Usually ships in 3-6 days

0

18

Honda 35618-ZV5-000

SEE PART DETAILS - SUP; PLATE, NEUTRAL SWITCH
(Superseded to 35618-ZW9-010)

$5.99

$

In Stock, only 1 left!

0

18

Honda 35618-ZW9-010

SEE PART DETAILS - PRI; PLATE, NEUTRAL SWITCH

$5.99

$

In Stock, only 1 left!

0

19

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

20

Honda 90022-ZW5-000

BOLT, FLANGE (6X14) (CT200)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90023-ZW5-000

BOLT, FLANGE (6X11)
(Superseded to 90101-ZZ0-M01)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90125-ZV1-010

BOLT, FLANGE (6X42)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90302-ZV5-003

NUT, HEX. (20MM) Use up to Frame SN 1300359.

$7.49

$

Usually ships in 3-6 days

0

25

Honda 90406-KV3-780

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90403-ZW1-000

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 90501-ZW5-000

WASHER, SHIFT SHAFT

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

$1.99

$

In Stock, only 1 left!

0

29

Honda 90508-ZV7-000

WASHER

$9.49

$

Usually ships in 3-6 days

0

30

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90765-ZW1-000

PIN, SPECIAL LOCK (6MM)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 91251-ZW5-003

OIL SEAL (14X26X6)

$5.49

$

Usually ships in 3-6 days

0

33

Honda 91302-PF0-003

O-RING (26.9X2.4) (NOK)

$4.49

$

Usually ships in 3-6 days

0

34

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 94540-12029

E-RING (12MM)

$11.99

$

Usually ships in 3-6 days

0
