BF130 A3 XCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1400001 - BZBH-1499999) PROPELLER SHAFT (COUNTER ROTATION) Parts Diagram

Marine Engine, Made in Japan

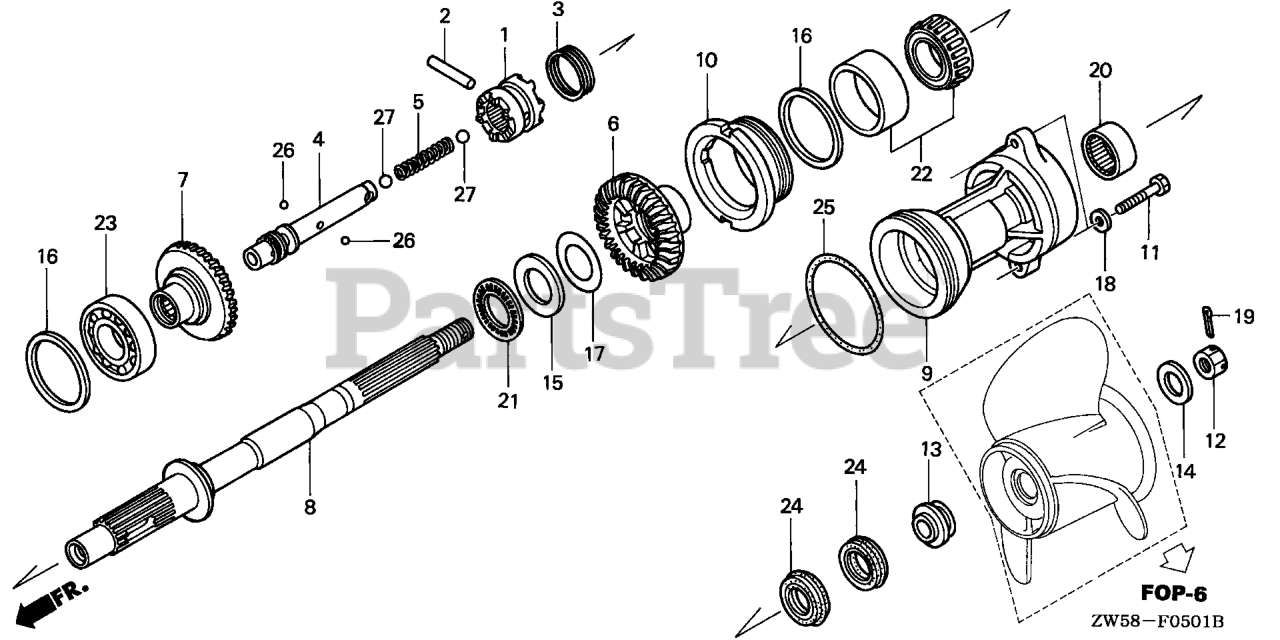

PROPELLER SHAFT (COUNTER ROTATION) Parts Diagram

  • Title

1

Honda 24101-ZW5-010

SEE PART DETAILS - PRI; SHIFTER, CLUTCH

$146.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24113-ZW5-000

SLIDER, SHIFT

$121.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZW1-B00

SPRING, SHIFT

$3.99

$

Usually ships in 3-6 days

0

6

Honda 41140-ZW5-710

GEAR, BEVEL (F)(COUNTER ROTATION)

$310.99

$

Usually ships in 3-6 days

0

7

Honda 41150-ZW5-711

SEE PART DETAILS - PRI; GEAR, BEVEL (R)(COUNTER ROTATION)

$260.99

$

Usually ships in 3-6 days

0

8

Honda 41161-ZW5-710

SHAFT, PROPELLER (COUNTER ROTATION)

$575.99

$

Usually ships in 3-6 days

0

9

Honda 41201-ZW5-710ZA

HOLDER, PROPELLER SHAFT *NH282MU* (COUNTER ROTATION) (OYSTER SILVER METALLIC-U)

$201.99

$

Usually ships in 3-6 days

0

10

Honda 41202-ZW5-710

HOLDER, BEARING

$156.99

$

Usually ships in 3-6 days

0

11

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZW1-B00

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ0-C00)

$68.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZZ0-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$68.99

$

Usually ships in 3-6 days

0

14

Honda 90508-ZW1-B00

WASHER, PLAIN (18.5MM)

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-710

SEE PART DETAILS - SUP; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

15

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90528-ZW1-B00

SHIM A, BEVEL (0.10) (FR.)

$19.99

$

Usually ships in 3-6 days

0

16

Honda 90529-ZW1-B00

SHIM B, BEVEL (0.15) (FR.)

$19.99

$

Usually ships in 3-6 days

0

16

Honda 90530-ZW1-B00

SHIM C, BEVEL (0.30) (FR.)

$21.99

$

Usually ships in 3-6 days

0

16

Honda 90531-ZW1-B00

SHIM D, BEVEL (0.50) (FR.)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 90548-ZW5-710

SHIM A, THRUST (0.10)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 90549-ZW5-710

SHIM B, THRUST (0.15)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 90550-ZW5-710

SHIM C, THRUST (0.30)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 90551-ZW5-710

SHIM D, THRUST (0.50)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$38.99

$

Usually ships in 3-6 days

0

21

Honda 91005-PT2-N01

BEARING, THRUST (F)

$21.99

$

Usually ships in 3-6 days

0

22

Honda 91051-ZW5-003

BEARING, TAPERED (50X82X21.5)

$96.99

$

Usually ships in 3-6 days

0

23

Honda 91055-ZW5-710

BEARING, RADIAL BALL (40X82X18)

$55.99

$

Usually ships in 3-6 days

0

24

Honda 91252-ZW1-B02

SEAL, WATER (30X45X7)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 91351-ZW1-B02

O-RING (94X4.1)

$8.99

$

Usually ships in 3-6 days

0

26

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

27

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.49

$

Usually ships in 3-6 days

0
