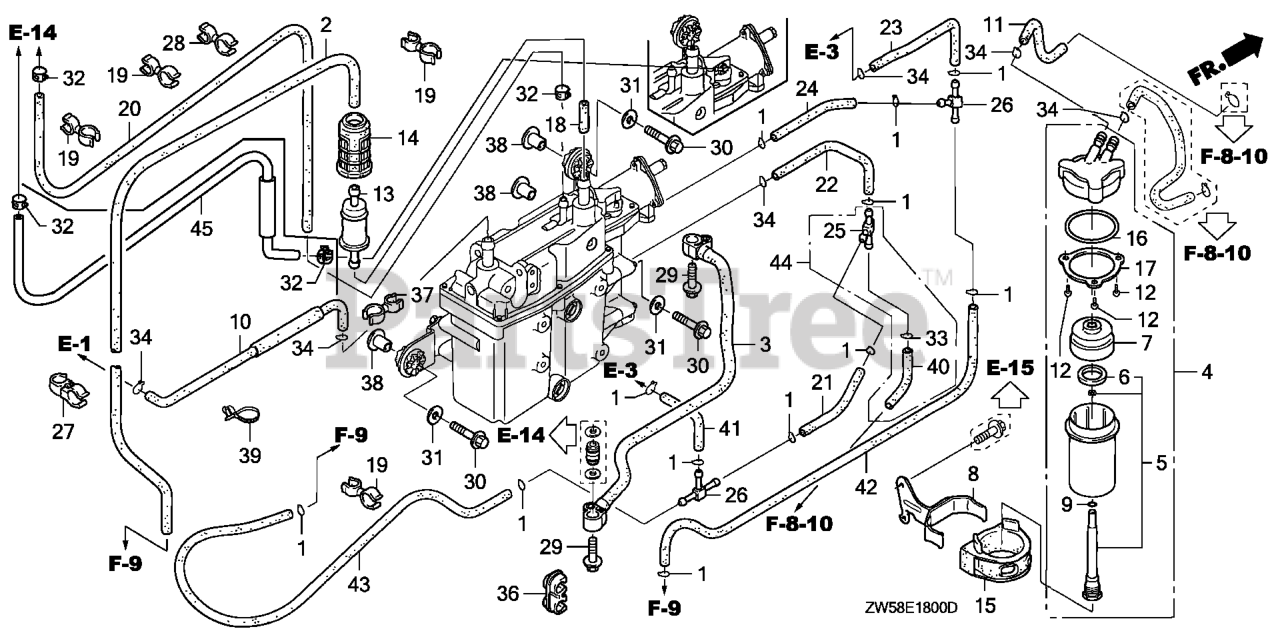

BF130 A3 XCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1400001 - BZBH-1499999) FUEL PIPE Parts Diagram

Marine Engine, Made in Japan

FUEL PIPE Parts Diagram

  • Title

1

Honda 16163-GHB-610

CLIP, TUBE (ENGINE NO.)

$2.49

$

Usually ships in 3-6 days

0

2

Honda 16198-ZW5-000

TUBE B, AIR VENT

$

$

Not available

3

Honda 16755-ZW5-013

HOSE, FUEL

$98.99

$

Usually ships in 3-6 days

0

4

Honda 16800-ZW5-003

SEPARATOR ASSY., WATER

$150.99

$

Usually ships in 3-6 days

0

5

Honda 16805-ZW5-003

CUP, WATER SEPARATOR

$47.99

$

Usually ships in 3-6 days

0

6

Honda 16806-ZW5-003

FLOAT

$6.99

$

Usually ships in 3-6 days

0

7

Honda 16807-ZY3-003

BUFFER, PLATE

$58.99

$

Usually ships in 3-6 days

0

8

Honda 16814-ZW5-000

SEE PART DETAILS - SUP; STAY, WATER SEPARATOR
(Superseded to 16814-ZW5-010)

$30.99

$

Usually ships in 3-6 days

0

8

Honda 16814-ZW5-010

SEE PART DETAILS - PRI; STAY, WATER SEPARATOR

$30.99

$

Usually ships in 3-6 days

0

9

Honda 16818-ZY3-003

O-RING

$3.49

$

Usually ships in 3-6 days

0

10

Honda 16880-ZW5-010

TUBE, FUEL (D)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 16891-ZW5-000

TUBE E, FUEL

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16904-ZY3-003

SCREW, PAN (5X12)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 16911-759-003

FILTER, FUEL PUMP

$42.99

$

Usually ships in 3-6 days

0

14

Honda 16915-ZW5-000

SUSPENSION, STRAINER

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16915-ZY3-000

SEE PART DETAILS - SUP; SUSPENSION, STRAINER
(Superseded to 16915-ZY3-010)

$16.99

$

Usually ships in 3-6 days

0

15

Honda 16915-ZY3-010

SEE PART DETAILS - PRI; SUSPENSION, STRAINER

$16.99

$

Usually ships in 3-6 days

0

16

Honda 16918-ZY3-003

O-RING

$8.99

$

Usually ships in 3-6 days

0

17

Honda 16919-ZY3-003

PLATE

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16952-MZ5-000

TUBE B, FUEL

$2.49

$

Usually ships in 3-6 days

0

19

Honda 16965-VM0-771

CLAMP, HOSE

$3.99

$

Usually ships in 3-6 days

0

20

Honda 17723-ZW5-000

HOSE, PRESSURE REGULATOR RETURN

$

$

Not available

21

Honda 19255-ZW5-000

TUBE A, WATER

$

$

Not available

22

Honda 19256-ZW5-010

TUBE B, WATER

$3.49

$

Usually ships in 3-6 days

0

23

Honda 19257-ZW5-010

TUBE C, WATER

$3.49

$

Usually ships in 3-6 days

0

24

Honda 19258-ZW5-010

TUBE D, WATER

$2.49

$

Usually ships in 3-6 days

0

26

Honda 19518-MN5-010

JOINT, THREE WAY

$11.99

$

In Stock, only 1 left!

0

27

Honda 53740-SE0-953

CLIP, SENSOR HOSE

$4.49

$

Usually ships in 3-6 days

0

28

Honda 54316-SD9-013

CLIP, SHIFT WIRE

$14.99

$

Usually ships in 3-6 days

0

29

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90054-ZY3-000

BOLT, FLANGE (8X35)
(Superseded to 90054-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90402-ZY3-000

WASHER, PLAIN (8MM)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90601-ZW5-030

CLAMP, TUBE (D10.7)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90651-MAH-000

CLAMP, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

37

Honda 90652-ZW5-003

CLAMP (6MM-12MM)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 91554-ZW1-000

SEE PART DETAILS - PRI; COLLAR (8.5X14.5)
(Superseded to 91504-ZY9-M03)

$7.99

$

Usually ships in 3-6 days

0

39

Honda 91558-SM4-003

CLIP, TUBE (135MM) (BLACK)

$8.99

$

Usually ships in 3-6 days

0

41

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0

42

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0

43

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0

44

Honda 04101-ZW5-000

JOINT SET, THREE WAY

$

$

Not available
