BF130 A3 XA (BZBE) - Honda Marine Engine, Made in Japan (SN: BZBE-1400001 - BZBE-1499999) PROPELLER SHAFT Parts Diagram

Marine Engine, Made in Japan

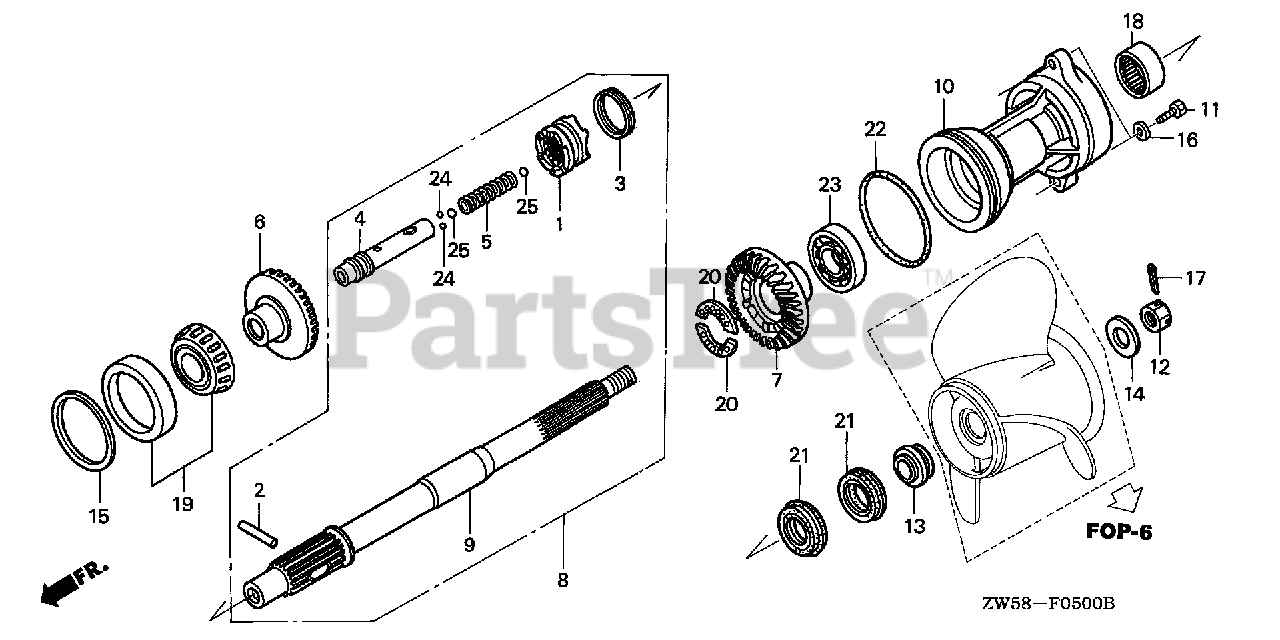

PROPELLER SHAFT Parts Diagram

  • Title

1

Honda 24101-ZW5-010

SEE PART DETAILS - PRI; SHIFTER, CLUTCH

$146.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZW1-B00

PIN, SHIFTER (8X47)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZW1-B00

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24113-ZW5-000

SLIDER, SHIFT

$121.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZW1-B00

SPRING, SHIFT

$3.99

$

Usually ships in 3-6 days

0

6

Honda 41140-ZW5-000

GEAR, BEVEL (F)

$267.99

$

Usually ships in 3-6 days

0

7

Honda 41151-ZW5-010

SEE PART DETAILS - PRI; GEAR, BEVEL (R)

$282.99

$

Usually ships in 3-6 days

0

8

Honda 41160-ZW5-020

SEE PART DETAILS - PRI; SHAFT ASSY., PROPELLER

$636.99

$

Usually ships in 3-6 days

0

9

Honda 41161-ZW5-010

SHAFT, PROPELLER

$507.99

$

Usually ships in 3-6 days

0

10

Honda 41201-ZW1-B02ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$198.99

$

Usually ships in 3-6 days

0

11

Honda 90123-ZV5-010

BOLT, HEX. (10X40)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZW1-B00

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ0-C00)

$68.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZZ0-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$68.99

$

Usually ships in 3-6 days

0

14

Honda 90508-ZW1-B00

WASHER, PLAIN (18.5MM)

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90528-ZW1-B00

SHIM A, BEVEL (0.10) (FR)

$19.99

$

Usually ships in 3-6 days

0

15

Honda 90529-ZW1-B00

SHIM B, BEVEL (0.15) (FR)

$19.99

$

Usually ships in 3-6 days

0

15

Honda 90530-ZW1-B00

SHIM C, BEVEL (0.30) (FR)

$21.99

$

Usually ships in 3-6 days

0

15

Honda 90531-ZW1-B00

SHIM D, BEVEL (0.50) (FR)

$22.99

$

Usually ships in 3-6 days

0

16

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 91005-MY5-601

BEARING, NEEDLE (30X37X26)

$38.99

$

Usually ships in 3-6 days

0

19

Honda 91051-ZW5-003

BEARING, TAPERED (50X82X21.5)

$96.99

$

Usually ships in 3-6 days

0

20

Honda 91054-ZW5-003

BEARING, BALL (28X38X3)

$33.99

$

Usually ships in 3-6 days

0

21

Honda 91252-ZW1-B02

SEAL, WATER (30X45X7)

$11.99

$

Usually ships in 3-6 days

0

22

Honda 91351-ZW1-B02

O-RING (94X4.1)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 96100-62080-00

BEARING, RADIAL BALL (6208)

$38.99

$

Usually ships in 3-6 days

0

24

Honda 96211-06000

BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

25

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.49

$

Usually ships in 3-6 days

0
