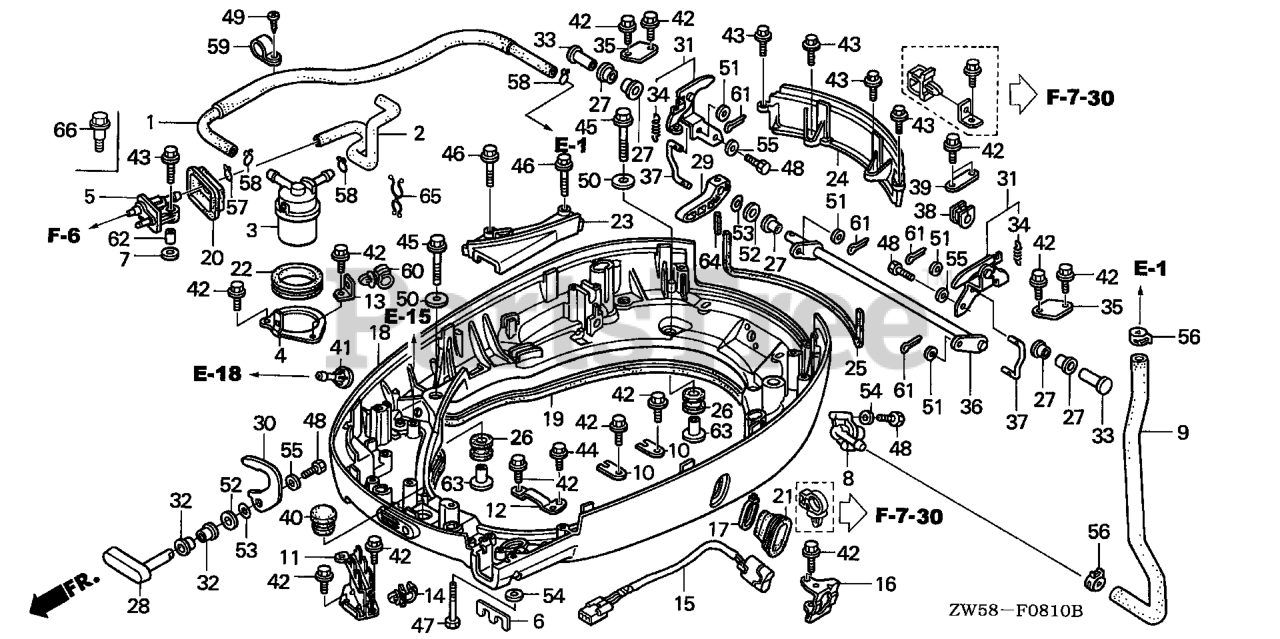

BF130 A3 LCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1400001 - BZBH-1499999) LOWER CASE Parts Diagram

Marine Engine, Made in Japan

LOWER CASE Parts Diagram

  • Title

1

Honda 16850-ZW5-000

TUBE, FUEL

$

$

Not available

2

Honda 16861-ZW5-010

TUBE B, FUEL

$

$

Not available

3

Honda 16900-SR3-004

STRAINER, FUEL

$28.99

$

Usually ships in 3-6 days

0

4

Honda 16914-ZW1-000

STAY, FUEL STRAINER

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17710-ZW9-033

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (B)

$60.99

$

Usually ships in 3-6 days

0

6

Honda 17877-ZW1-000

PLATE, REMOTE CONTROL CABLE

$12.99

$

Usually ships in 3-6 days

0

7

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

8

Honda 19266-ZW1-010

SEE PART DETAILS - PRI; JOINT, WATER INLET

$67.99

$

Usually ships in 3-6 days

0

9

Honda 19274-ZW5-000

HOSE, FLUSHING WATER

$22.99

$

Usually ships in 3-6 days

0

10

Honda 24626-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$2.99

$

Usually ships in 3-6 days

0

11

Honda 32109-ZW5-010

SEE PART DETAILS - PRI; BRACKET, CONNECTOR (B)

$29.99

$

Usually ships in 3-6 days

0

12

Honda 32112-ZV7-751

SEE PART DETAILS - PRI; BRACKET, CABLE CLIP (S)

$

$

Not available

13

Honda 32114-ZW5-010

BRACKET, CLIP (C)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

15

Honda 35640-ZW1-023

SEE PART DETAILS - PRI; SWITCH ASSY., POWER TRIM-TILT

$79.99

$

Usually ships in 3-6 days

0

16

Honda 35645-ZW1-000

STAY, POWER TILT SWITCH

$17.99

$

Usually ships in 3-6 days

0

17

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 40101-ZW5-405ZA

CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$2068.99

$

Usually ships in 3-6 days

0

19

Honda 40103-ZW5-000

SEAL, CASE (LOWER)

$38.99

$

Usually ships in 3-6 days

0

20

Honda 40106-ZV5-000

GROMMET, CASE (LOWER) (B)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 40114-ZV5-821

SEE PART DETAILS - PRI; GROMMET, CASE (LOWER)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 40146-ZV5-000

GROMMET, FUEL STRAINER

$10.99

$

Usually ships in 3-6 days

0

23

Honda 40151-ZW5-000ZA

CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$64.99

$

Usually ships in 3-6 days

0

24

Honda 40156-ZW5-000ZA

CASE, RR. SEPARATOR *NH282MU* (OYSTER SILVER METALLIC-U)

$141.99

$

Usually ships in 3-6 days

0

25

Honda 40159-ZW5-000

SEAL, SEPARATOR CASE

$8.99

$

Usually ships in 3-6 days

0

26

Honda 51640-121-730

RUBBER, FR. CARRIER CUSHION

$4.99

$

Usually ships in 3-6 days

0

27

Honda 57264-759-003

BUSH (14X10)

$7.49

$

Usually ships in 3-6 days

0

28

Honda 63201-ZW1-000ZA

LEVER, COVER LOCK *NH282MU* (OYSTER SILVER METALLIC-U)

$76.99

$

Usually ships in 3-6 days

0

29

Honda 63201-ZW5-000

SEE PART DETAILS - PRI; LEVER, COVER LOCK

$31.99

$

Usually ships in 3-6 days

0

30

Honda 63202-ZW1-000

HOOK, COVER LOCK

$15.99

$

Usually ships in 3-6 days

0

31

Honda 63202-ZW5-000

HOOK, COVER LOCK

$54.99

$

Usually ships in 3-6 days

0

32

Honda 63205-920-000

BUSH, COVER LOCK

$6.49

$

In Stock, only 1 left!

0

33

Honda 63208-ZW5-000

SHAFT, COVER B LOCK

$38.99

$

Usually ships in 3-6 days

0

34

Honda 63212-ZW5-000

SPRING, COVER LOCK HOOK

$16.99

$

Usually ships in 3-6 days

0

35

Honda 63213-ZW5-010

SEE PART DETAILS - PRI; PLATE, COVER LOCK SHAFT

$4.49

$

Usually ships in 3-6 days

0

36

Honda 63214-ZW5-000

SHAFT, COVER LOCK

$

$

Not available

37

Honda 63216-ZW5-000

ROD, COVER LOCK

$27.99

$

Usually ships in 3-6 days

0

38

Honda 63217-ZW5-000

BUSH, COVER LOCK SHAFT

$5.49

$

Usually ships in 3-6 days

0

39

Honda 63219-ZW5-010

SEE PART DETAILS - PRI; PLATE, COVER B LOCK SHAFT

$2.99

$

Usually ships in 3-6 days

0

40

Honda 63515-ZC0-700

CAP, L. SIDE COVER

$7.99

$

Usually ships in 3-6 days

0

41

Honda 82873-ZV5-000

GROMMET, WATER CHECK
(Superseded to 82873-ZV5-003)

$7.99

$

Usually ships in 3-6 days

0

42

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

43

Honda 90013-ZV4-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

44

Honda 90019-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (5X10)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 90054-ZY3-000

BOLT, FLANGE (8X35)
(Superseded to 90054-ZY9-M01)

$2.49

$

Usually ships in 3-6 days

0

46

Honda 90002-ZZ5-M00

BOLT, FLANGE (6X30)
(Superseded to 90002-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

46

Honda 90102-ZW5-000

BOLT, FLANGE (6X30)
(Superseded to 90002-ZZ5-M00)

$

$

Not available

47

Honda 90120-ZV4-010

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$3.49

$

Usually ships in 3-6 days

0

48

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

49

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

$2.99

$

Usually ships in 3-6 days

0

50

Honda 90402-ZY3-000

WASHER, PLAIN (8MM)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 90452-GK4-600

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 90505-ZV1-000

WASHER (14MM)

$3.49

$

Usually ships in 3-6 days

0

53

Honda 90506-ZV1-000

WASHER, WAVE (14MM)

$3.49

$

In Stock, only 2 left!

0

54

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.49

$

Usually ships in 3-6 days

0

55

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

56

Honda 90602-ZV3-030

SEE PART DETAILS - PRI; CLAMP, TUBE (D18.8)

$4.49

$

Usually ships in 3-6 days

0

57

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$1.99

$

Usually ships in 3-6 days

0

58

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

59

Honda 90628-750-000

CLIP (14MM)

$2.99

$

In Stock, Qty 5

0

60

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$4.49

$

Usually ships in 3-6 days

0

61

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

62

Honda 91551-ZV4-000

COLLAR, DISTANCE (6MM)

$4.49

$

Usually ships in 3-6 days

0

63

Honda 91554-ZW1-000

SEE PART DETAILS - PRI; COLLAR (8.5X14.5)
(Superseded to 91504-ZY9-M03)

$7.99

$

Usually ships in 3-6 days

0

64

Honda 90751-ZW5-000

PIN, SPRING (6X22)

$1.99

$

Usually ships in 3-6 days

0

65

Honda 90630-ZW1-003

CLIP, PURSE LOCK

$3.49

$

Usually ships in 3-6 days

0
