BF130 A2 XA (BZBE) - Honda Marine Engine, Made in Japan (SN: BZBE-1300001 - BZBE-1400000) OIL PUMP Parts Diagram

Marine Engine, Made in Japan

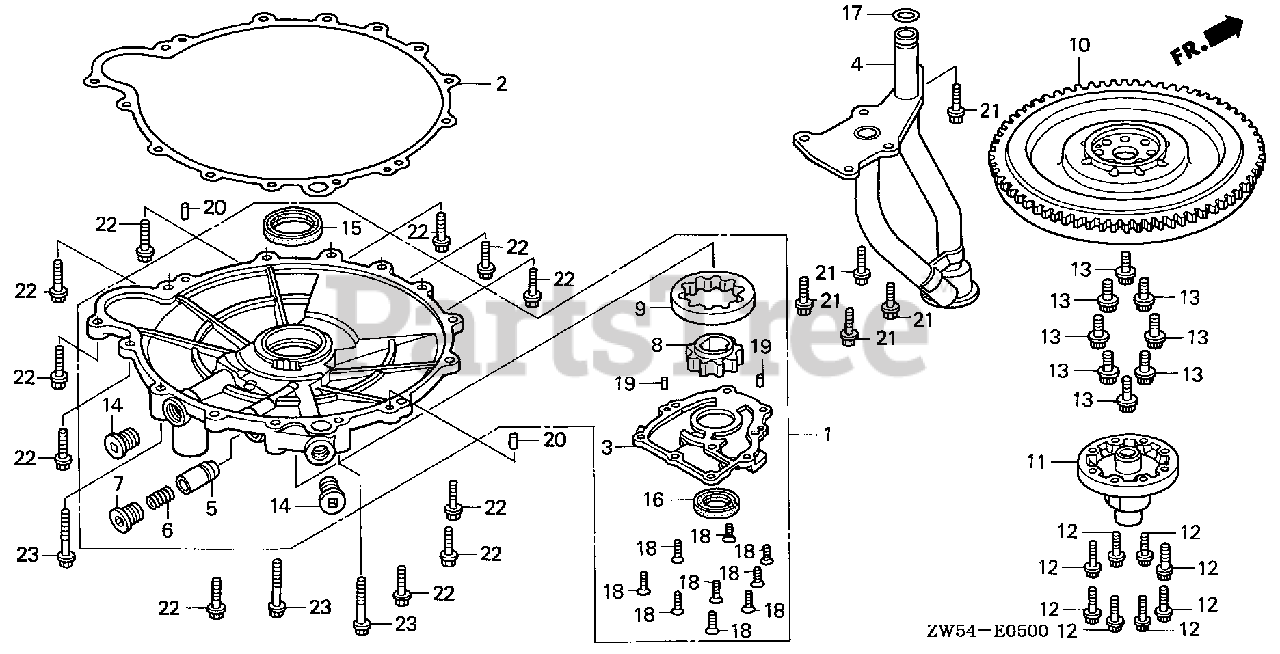

OIL PUMP Parts Diagram

  • Title
1

Honda 15100-ZW5-000

PUMP ASSY., OIL

$682.99

$

Usually ships in 3-6 days

0

2

Honda 15112-ZW5-003

GASKET, OIL PUMP BODY

$52.99

$

Usually ships in 3-6 days

0

3

Honda 15121-ZW5-000

COVER, OIL PUMP

$89.99

$

Usually ships in 3-6 days

0

4

Honda 15220-ZW5-000

STRAINER, OIL

$144.99

$

Usually ships in 3-6 days

0

5

Honda 15231-PE0-000

VALVE, RELIEF

$19.99

$

Usually ships in 3-6 days

0

6

Honda 15232-PG6-000

SPRING, RELIEF VALVE

$8.49

$

Usually ships in 3-6 days

0

7

Honda 15233-PC6-000

BOLT, SEALING (18MM)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 15331-ZW5-003

ROTOR, OIL PUMP (INNER)

$58.99

$

Usually ships in 3-6 days

0

9

Honda 15341-ZW5-003

ROTOR, OIL PUMP (OUTER)

$48.99

$

Usually ships in 3-6 days

0

10

Honda 31110-ZW5-000ZA

FLYWHEEL *TBLACK* (BLACK)

$705.99

$

Usually ships in 3-6 days

0

11

Honda 31116-ZW5-000

BOSS, FLYWHEEL

$257.99

$

Usually ships in 3-6 days

0

12

Honda 90002-ZW5-003

SEE PART DETAILS - SUP; BOLT, SPECIAL (8MM)
(Superseded to 90002-ZW5-013)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90002-ZW5-013

SEE PART DETAILS - PRI; BOLT, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90011-PM0-000

BOLT (12MM)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90081-ZV5-000

SEE PART DETAILS - SUP; BOLT, SEALING (22MM)

Note: Use up to Engine SN 1021620.

$

$

Currently unavailable

14

Honda 90081-ZV5-010

SEE PART DETAILS - PRI; BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 91201-ZW5-003

OIL SEAL (46X60X9)

$17.99

$

Usually ships in 3-6 days

0

16

Honda 91212-P01-003

OIL SEAL (31X46X7) (NOK)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 91324-PC6-000

O-RING (20.6X2.6)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 93600-06016-0A

SCREW, FLAT (6X16)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94303-05080

PIN, DOWEL (5X8)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 95701-08020-09

BOLT, FLANGE (8X20)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 95701-08030-09

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0
