BF130 A2 LA (BZBE) - Honda Marine Engine, Made in Japan (SN: BZBE-1300001 - BZBE-1400000) VAPOR SEPARATOR (1) Parts Diagram

Marine Engine, Made in Japan

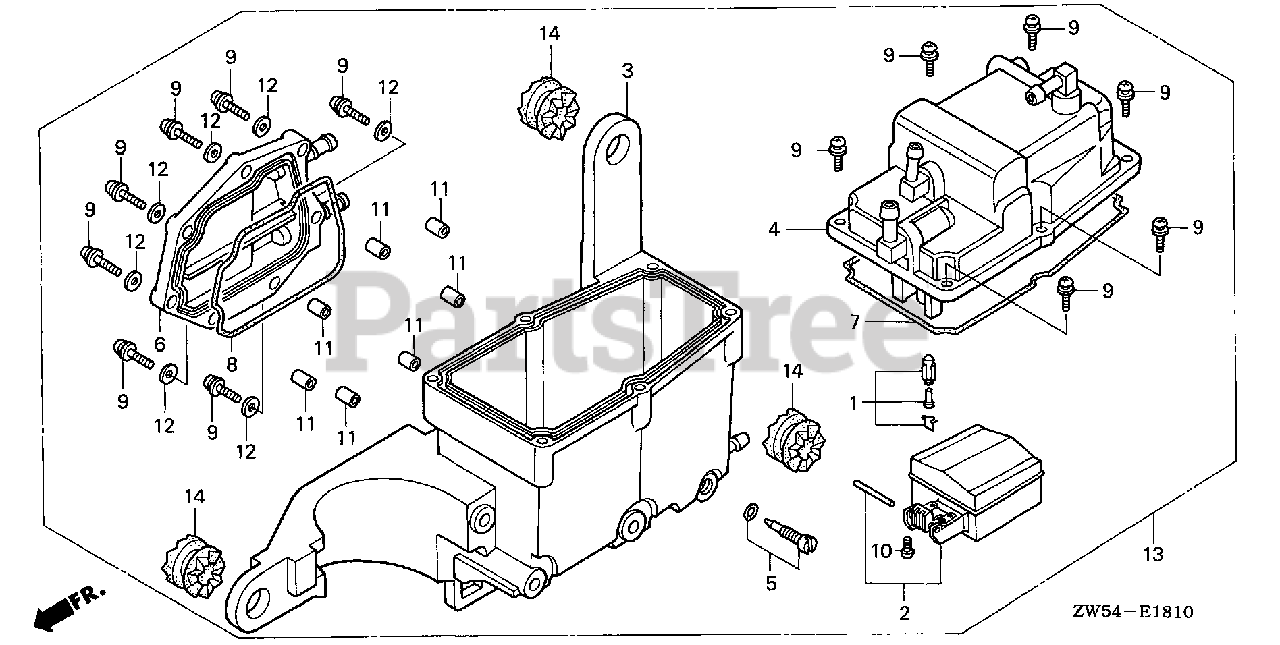

VAPOR SEPARATOR (1) Parts Diagram

  • Title

1

Honda 16011-ZY3-A01

SEE PART DETAILS - PRI; VALVE SET, FLOAT

Note: Use up to Engine SN 1019107.

$60.99

$

Usually ships in 3-6 days

0

2

Honda 16013-ZW5-000

FLOAT SET

Note: Use up to Engine SN 1019107.

$

$

Not available

3

Honda 16015-ZW5-000

BODY, CHAMBER

Note: Use up to Engine SN 1019107.

$

$

Not available

4

Honda 16020-ZW5-000

COVER

Note: Use up to Engine SN 1019107.

$

$

Not available

5

Honda 16024-ZY3-000

SEE PART DETAILS - PRI; SCREW SET, DRAIN

Note: Use up to Engine SN 1019107.

$17.99

$

Usually ships in 3-6 days

0

5

Honda 16024-881-A00

SEE PART DETAILS - SUP; SCREW SET, DRAIN
(Superseded to 16024-ZY3-000)

Note: Use up to Engine SN 1019107.

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16061-ZW5-000

COVER, WATER JACKET

Note: Use up to Engine SN 1019107.

$126.99

$

Usually ships in 3-6 days

0

7

Honda 16075-ZW5-000

O-RING

Note: Use up to Engine SN 1019107.

$

$

Not available

8

Honda 16076-ZW5-000

O-RING

Note: Use up to Engine SN 1019107.

$

$

Not available

9

Honda 16081-ZW5-000

SEE PART DETAILS - SUP; SCREW-WASHER
(Superseded to 16081-ZW5-010)

Note: Use up to Engine SN 1019107.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16081-ZW5-010

SEE PART DETAILS - PRI; SCREW-WASHER

Note: Use up to Engine SN 1019107.

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16082-ZW5-000

SCREW, PAN (4X8)

Note: Use up to Engine SN 1019107.

$

$

Not available

11

Honda 16086-ZW5-000

COLLAR

Note: Use up to Engine SN 1019107.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16087-ZW5-000

WASHER, PLAIN

Note: Use up to Engine SN 1019107.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 06167-ZW5-305

SEE PART DETAILS - PRI; SEPARATOR ASSY., VAPOR
(Superseded to 06167-ZW5-345)

Note: Use up to Engine SN 1019107.

$1413.99

$

Usually ships in 3-6 days

0

14

Honda 16733-ZW5-000

GROMMET, VAPOR SEPARATOR

Note: Use up to Engine SN 1019107.

$9.49

$

Usually ships in 3-6 days

0
