BF130 A1 LCA (BZBH) - Honda Marine Engine, Made in Japan (SN: BZBH-1200001 - BZBH-1299999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

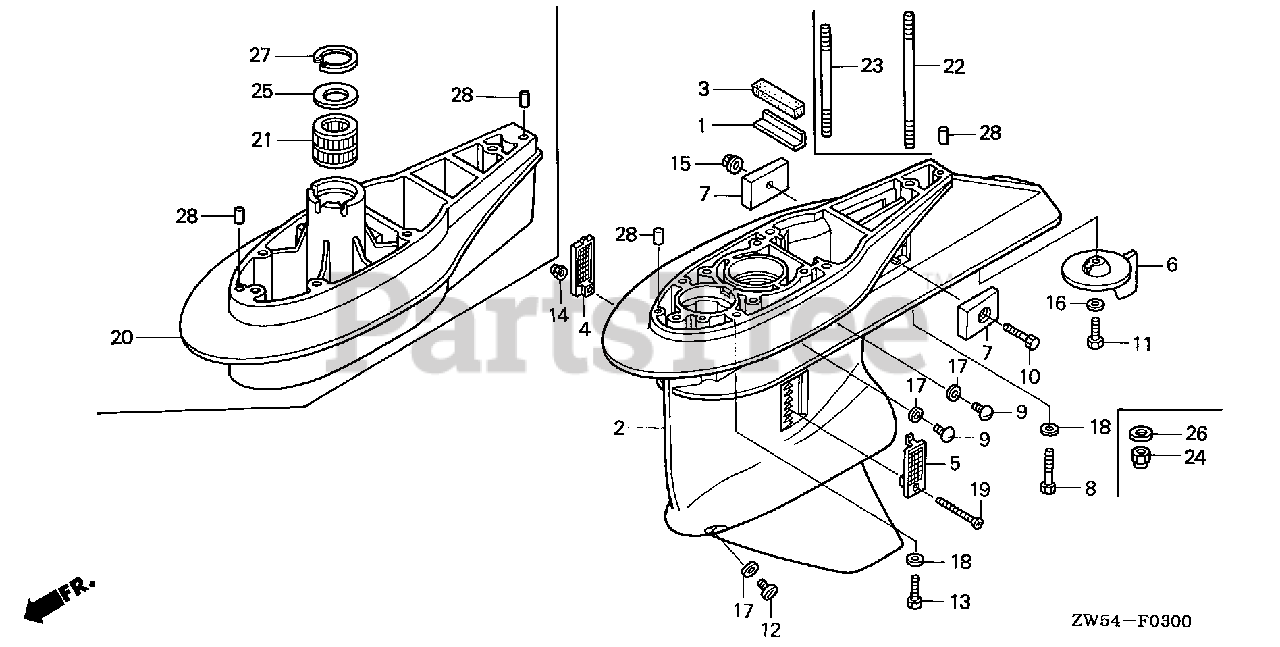

GEAR CASE Parts Diagram

  • Title

1

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$8.99

$

Usually ships in 3-6 days

0

2

Honda 41101-ZW1-B02ZA

SEE PART DETAILS - PRI; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$8.99

$

Usually ships in 3-6 days

0

4

Honda 41104-ZV5-000

SCREEN, R. WATER

$10.99

$

Usually ships in 3-6 days

0

5

Honda 41105-ZV5-000

SCREEN, L. WATER

$10.99

$

Usually ships in 3-6 days

0

6

Honda 41107-ZW1-B01ZA

SEE PART DETAILS - PRI; TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)

$60.99

$

Usually ships in 3-6 days

0

7

Honda 41109-ZW1-B00

METAL, ANODE

$25.99

$

Usually ships in 3-6 days

0

8

Honda 90104-ZW5-000

BOLT, HEX. (10X80)

$22.99

$

Usually ships in 3-6 days

0

9

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

10

Honda 90111-881-000

BOLT, HEX. (6X32)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90120-ZV5-003

BOLT, DRAIN PLUG (8MM)

$8.49

$

Usually ships in 3-6 days

0

13

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$9.49

$

Usually ships in 3-6 days

0

14

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90401-ZW1-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

18

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 93700-05045-4J

SCREW, OVAL (5X45)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0
