BF130 A1 LA (BZBE) - Honda Marine Engine, Made in Japan (SN: BZBE-1200001 - BZBE-1299999) SPEEDOMETER + TACHOMETER Parts Diagram

Marine Engine, Made in Japan

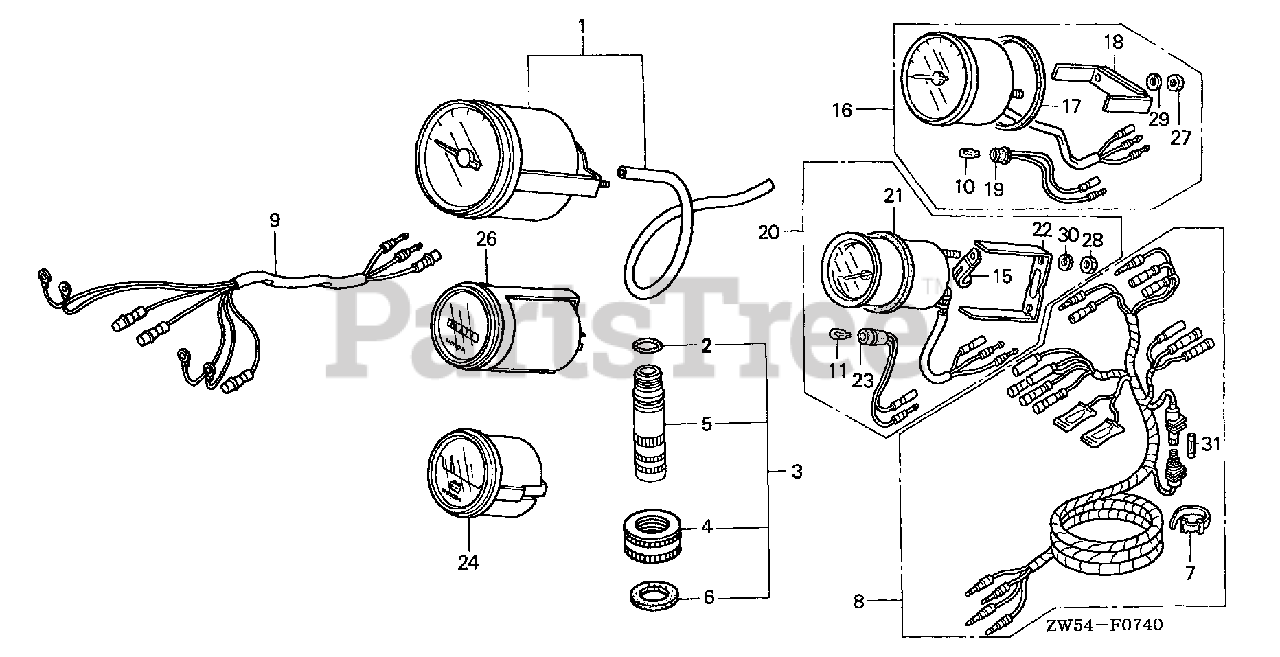

SPEEDOMETER + TACHOMETER Parts Diagram

  • Title

1

Honda 06372-ZV5-910

SEE PART DETAILS - SUP; SPEEDOMETER KIT
(Superseded to 37200-ZW5-000ZA)

$

$

Not available

1

Honda 37200-ZW5-000ZA

SEE PART DETAILS - PRI; SPEEDOMETER KIT

$

$

Not available

2

Honda 91302-ZE9-003

O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

3

Honda 19270-ZW1-740

JOINT ASSY., HOSE

$44.99

$

Usually ships in 3-6 days

0

4

Honda 19270-881-812

NUT, WATER MOUTH

$14.99

$

Usually ships in 3-6 days

0

5

Honda 19270-ZW1-740

JOINT ASSY., HOSE

$44.99

$

Usually ships in 3-6 days

0

6

Honda 19272-881-810

SEAT, WATER MOUTH

$3.49

$

Usually ships in 3-6 days

0

7

Honda 32161-404-000

BAND B1, WIRE

$3.49

$

In Stock, only 4 left!

0

8

Honda 32540-ZV5-910

HARNESS ASSY., METER (A)

$65.99

$

Usually ships in 3-6 days

0

8

Honda 32540-ZV5-911

HARNESS ASSY., METER (A)

$65.99

$

Usually ships in 3-6 days

0

9

Honda 32550-ZV5-910

HARNESS ASSY., METER (B)

$21.99

$

Usually ships in 3-6 days

0

10

Honda 34908-MB9-871

BULB, WEDGE BASE (T10)

$3.99

$

Usually ships in 3-6 days

0

11

Honda 34908-MG9-951

BULB, WEDGE BASE (12V 1.7W)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 37215-KM1-670

CLAMP

$2.99

$

Usually ships in 3-6 days

0

16

Honda 37250-ZV7-912

SEE PART DETAILS - SUP; TACHOMETER ASSY.

$

$

Currently unavailable

16

Honda 37250-ZV7-913

SEE PART DETAILS - PRI; TACHOMETER ASSY.

$351.99

$

Usually ships in 3-6 days

0

17

Honda 37253-ZV5-821

GASKET

$6.49

$

Usually ships in 3-6 days

0

18

Honda 37256-ZV5-821

BRACKET

$32.99

$

Usually ships in 3-6 days

0

19

Honda 37258-ZV5-821

SOCKET

$22.99

$

Usually ships in 3-6 days

0

20

Honda 37260-ZV5-821

SEE PART DETAILS - SUP; METER ASSY., TRIM

$330.99

$

Usually ships in 3-6 days

0

20

Honda 37260-ZV5-822

SEE PART DETAILS - PRI; METER ASSY., TRIM

$330.99

$

Usually ships in 3-6 days

0

21

Honda 37263-ZV5-821

GASKET

$4.99

$

Usually ships in 3-6 days

0

22

Honda 37266-ZV5-821

BRACKET

$22.99

$

Usually ships in 3-6 days

0

23

Honda 37268-ZV5-821

SOCKET

$24.99

$

Usually ships in 3-6 days

0

24

Honda 37450-ZV5-911

METER ASSY., VOLT

$

$

Not available

26

Honda 39700-ZV5-800AH

METER ASSY., HOUR L.C.D.

$56.99

$

Usually ships in 3-6 days

0

27

Honda 90309-ZV5-821

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90310-ZV5-821

NUT, HEX. (4MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 98200-11000

FUSE A (10A)

$2.49

$

In Stock, only 1 left!

0
