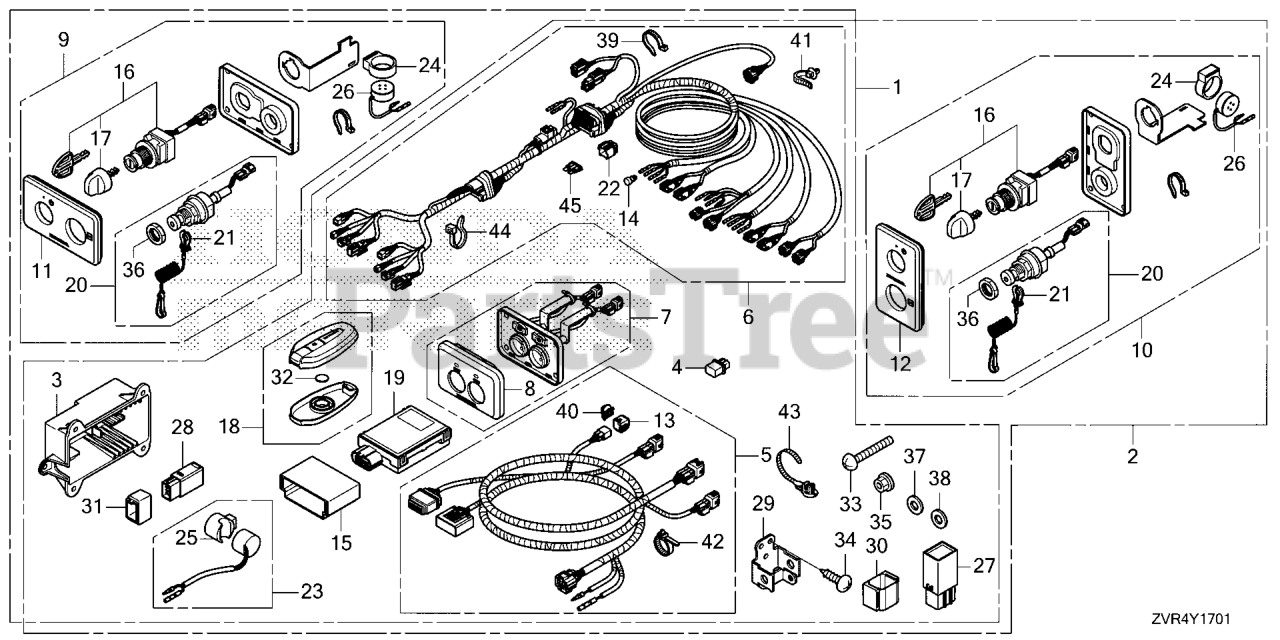

BF115 J XRA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) SMART UNIT (2) (TWIN) (MECH) Parts Diagram

Marine Engine, Made in Japan

SMART UNIT (2) (TWIN) (MECH) Parts Diagram

  • Title

1

Honda 06312-ZVT-000

UNIT KIT, SMART KEY

Note: (Optional)

$2137.99

$

Usually ships in 3-6 days

0

2

Honda 06312-ZVT-800

UNIT KIT, SMART KEY

Note: (Optional)

$2137.99

$

Usually ships in 3-6 days

0

3

Honda 30435-ZVL-000

CASE, CONTROL UNIT (SMART)

Note: (Optional)

$58.99

$

Usually ships in 3-6 days

0

4

Honda 32107-ZVL-003

TERMINATOR ASSY.

Note: (Optional)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 32145-ZVL-000

HARNESS ASSY., SMART KEY CONTROL

Note: (Optional)

$164.99

$

Usually ships in 3-6 days

0

6

Honda 32145-ZVT-910

HARNESS, SMART KEY

Note: (Optional)

$271.99

$

Usually ships in 3-6 days

0

7

Honda 32340-ZVL-701

PANEL ASSY., START STOP (TWIN)

Note: (Optional)

$209.99

$

Usually ships in 3-6 days

0

8

Honda 32344-ZVL-701

PANEL, START STOP (TWIN)

Note: (Optional)

$58.99

$

Usually ships in 3-6 days

0

9

Honda 32380-ZVL-601

PANEL ASSY., KEY SWITCH (SMART)

Note: (Optional)

$354.99

$

Usually ships in 3-6 days

0

10

Honda 32380-ZVL-611

PANEL ASSY., KEY SWITCH (SMART)

Note: (Optional)

$354.99

$

Usually ships in 3-6 days

0

11

Honda 32386-ZVL-601

PANEL, KEY SWITCH

Note: (Optional)

$38.99

$

Usually ships in 3-6 days

0

12

Honda 32386-ZVL-611

PANEL, KEY SWITCH

Note: (Optional)

$38.99

$

Usually ships in 3-6 days

0

13

Honda 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 34346-ZVL-000

SUSPENSION, CONTROL UNIT (SMART)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

16

Honda 35100-ZVL-601

SWITCH ASSY., COMBINATION (SMART)

Note: (Optional)

$133.99

$

Usually ships in 3-6 days

0

17

Honda 35110-ZVL-601

KNOB

Note: (Optional)

$18.99

$

Usually ships in 3-6 days

0

18

Honda 35111-ZVL-003

FOB ASSY. (315MHZ) (NOT AVAILABLE)

Note: (Optional)

$136.99

$

Usually ships in 3-6 days

0

19

Honda 35140-ZVL-003

CONTROL UNIT, SMART (315MHZ)

Note: (Optional)

$1103.99

$

Usually ships in 3-6 days

0

20

Honda 36180-ZVL-003

SWITCH ASSY., EMERGENCY STOP

Note: (Optional)

$69.99

$

Usually ships in 3-6 days

0

21

Honda 36182-ZY6-003

WIRE, EMERGENCY

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

22

Honda 38218-ZW5-004

COVER ASSY., FUSE (10A)

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 38400-ZY9-A00

BUZZER ASSY., WARNING

Note: (Optional)

$99.99

$

Usually ships in 3-6 days

0

24

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT (Honda Code 1704642).

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

25

Honda 38402-ZY9-A00

SUSPENSION, WARNING BUZZER

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

26

Honda 38410-ZY9-A01

BUZZER, WARNING

Note: (Optional)

$58.99

$

Usually ships in 3-6 days

0

27

Honda 38580-HP5-601

RELAY, WATERPROOF (15AX2)

Note: (Optional)

$61.99

$

Usually ships in 3-6 days

0

28

Honda 38580-ZZ5-003

RELAY ASSY., MAIN

Note: (Optional)

$55.99

$

Usually ships in 3-6 days

0

29

Honda 38582-ZVL-900

BRACKET, MAIN RELAY

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

30

Honda 38585-MKE-A11

CUSHION, RELAY

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

31

Honda 38586-ZZ5-003

SUSPENSION, RELAY

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

32

Honda 72148-S84-A10

BATTERY (CR2025) (MSDS)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

33

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90113-TA0-A00

SCREW, TAPPING (5X16) (PO)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

35

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 90302-ZY6-003

NUT

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

37

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 90502-ZZ5-M01

WASHER, SPG (5MM)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 91531-SR3-003

HOLDER, CONNECTOR (128.6MM) (NATURAL)

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

40

Honda 91535-TA0-003

CLIP, CONNECTOR (DARK BROWN)

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

41

Honda 91540-STK-003

CLIP, HARNESS BAND (155.3MM) (BLACK)

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

42

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

Note: (Optional)

$5.49

$

In Stock, only 1 left!

0

43

Honda 91549-TTA-003

CLIP, BAND HARNESS (152.4MM) (BLACK)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

44

Honda 32112-T2A-003

BAND, CABLE (NATURAL)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 91560-GJE-900

BAND, HARN

Note: (Optional)

$

$

Not available

45

Honda 98200-31000

FUSE, BLADE (10A)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
