BF115 J XDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) SWITCH PANEL KIT (FUNCTION) Parts Diagram

Marine Engine, Made in Japan

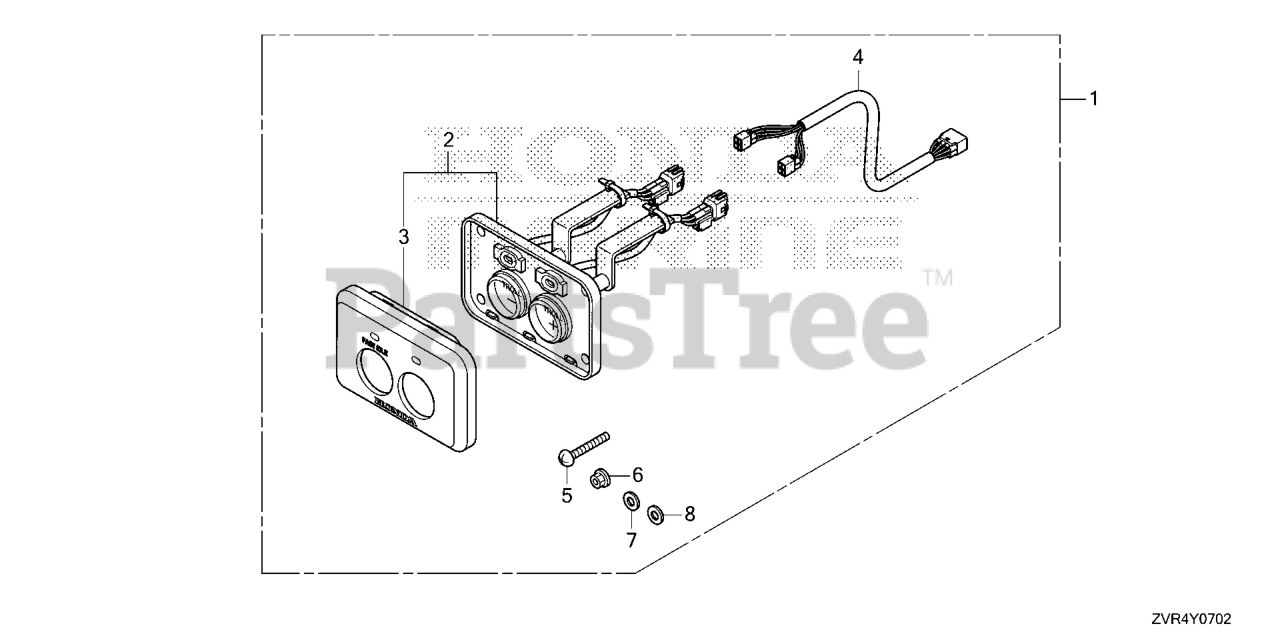

SWITCH PANEL KIT (FUNCTION) Parts Diagram

  • Title

1

Honda 06326-ZVL-010

PANEL KIT

Note: (Optional)

$306.99

$

Usually ships in 3-6 days

0

2

Honda 32351-ZVL-003

PANEL ASSY., FUNCTION SWITCH

Note: (Optional)

$289.99

$

Usually ships in 3-6 days

0

3

Honda 32354-ZVL-003

PANEL, FUNCTION SWITCH

Note: (Optional)

$66.99

$

Usually ships in 3-6 days

0

4

Honda 32357-ZVL-003

SUB-HARNESS ASSY., FUNCTION SWITCH

Note: (Optional)

$50.99

$

Usually ships in 3-6 days

0

5

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

6

Honda 90301-ZZ5-M01

NUT, FLANGE (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

7

Honda 90501-ZZ5-M01

WASHER, PLAIN (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

8

Honda 90502-ZZ5-M01

WASHER, SPG (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0
