BF115 J XDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) MAINTENANCE KIT (200) Parts Diagram

Marine Engine, Made in Japan

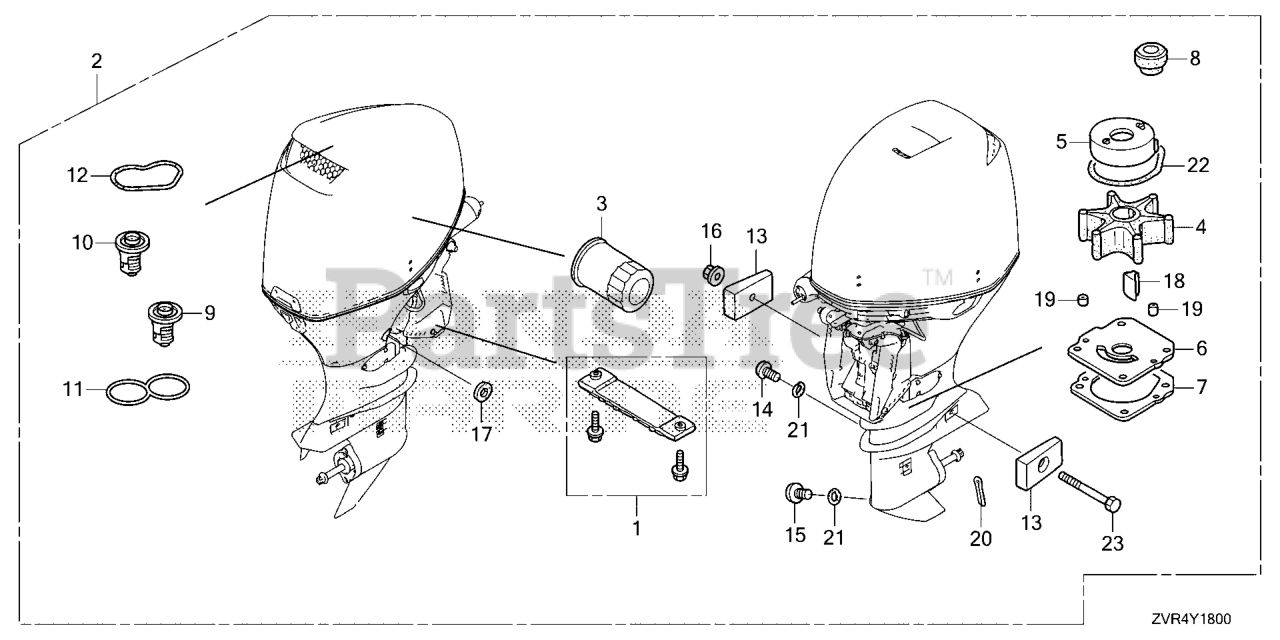

MAINTENANCE KIT (200) Parts Diagram

  • Title
1

Honda 06411-ZW1-020

SEE PART DETAILS - PRI; METAL KIT, ANODE Use from Frame SN 4800343.

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

2

Honda 06510-ZVT-000

KIT (200)
(Superseded to 06510-ZVT-010)

Note: (Optional)

$203.99

$

Usually ships in 3-6 days

0

3

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

4

Honda 19210-ZW1-B04

SEE PART DETAILS - PRI; IMPELLER, PUMP

Note: (Optional)

$55.99

$

Usually ships in 3-6 days

0

5

Honda 19223-ZW1-B00

LINER, PUMP

Note: (Optional)

$42.99

$

Usually ships in 3-6 days

0

6

Honda 19231-ZY6-000

COVER, IMPELLER

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 19234-ZY6-000

GASKET B, IMPELLER

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 19253-ZW1-B01

SEE PART DETAILS - PRI; RING, WATER TUBE SEAL

Note: (Optional)

$8.49

$

In Stock, only 1 left!

0

9

Honda 19300-ZY3-023

THERMOSTAT ASSY.

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

10

Honda 19300-ZY6-003

THERMOSTAT ASSY.

Note: (Optional)

$53.99

$

Usually ships in 3-6 days

0

11

Honda 19318-ZY6-003

GASKET, THERMOSTAT COVER

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 19319-ZY6-010

GASKET, THERMOSTAT SPACER

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 41109-ZW1-B00

METAL, ANODE

Note: (Optional)

$25.99

$

Usually ships in 3-6 days

0

14

Honda 90101-ZW9-003

BOLT, OIL CHECK

Note: (Optional)

$3.99

$

In Stock, only 2 left!

0

15

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90752-ZW1-B02

KEY, WOODRUFF

Note: (Optional)

$18.99

$

Usually ships in 3-6 days

0

19

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

Note: (Optional)

$2.99

$

In Stock, only 3 left!

0

21

Honda 91301-ZW4-003

O-RING (6.9X1.45)

Note: (Optional)

$1.49

$

In Stock, Qty 6

0

22

Honda 91356-ZW1-B00

O-RING, WATER PUMP

Note: (Optional)

$11.99

$

In Stock, only 1 left!

0

23

Honda 92101-06050-4J

BOLT, HEX. (6X50)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
