BF115 J XDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

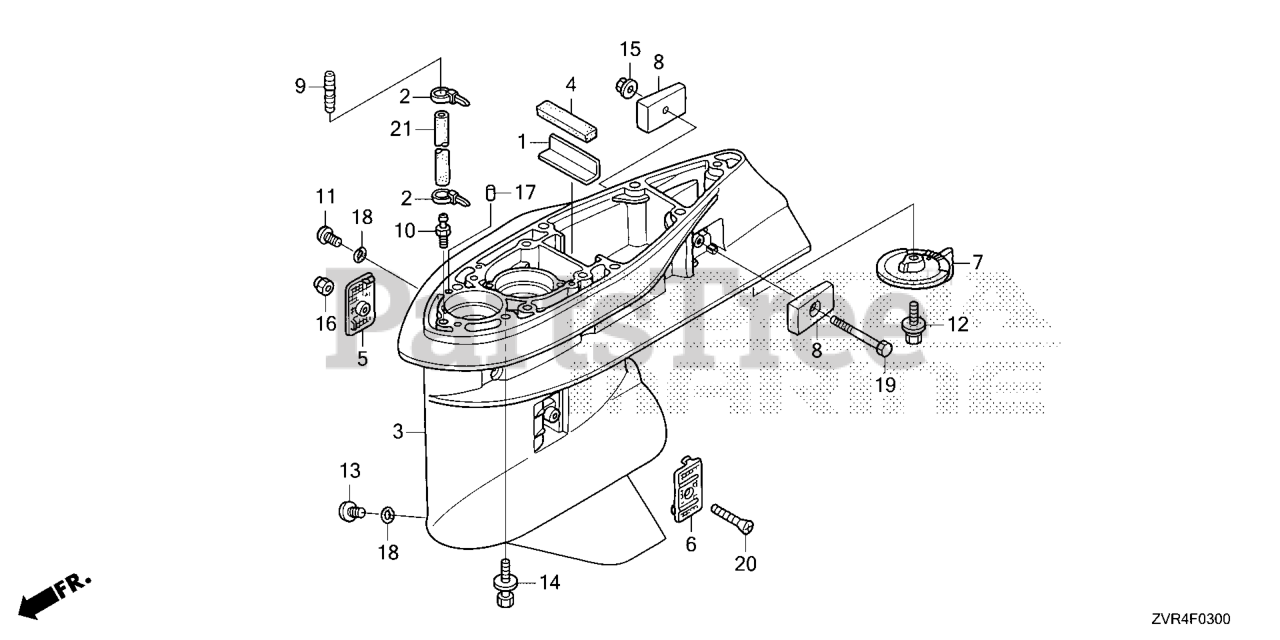

GEAR CASE Parts Diagram

  • Title
1

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$8.99

$

Usually ships in 3-6 days

0

2

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 41101-ZY6-020ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$1457.99

$

Usually ships in 3-6 days

0

3

Honda 41101-ZY6-020ZD

CASE,GEAR*NH565*

$1184.99

$

Usually ships in 3-6 days

0

4

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$8.99

$

Usually ships in 3-6 days

0

5

Honda 41104-ZY6-010

SCREEN, R. WATER

$14.99

$

Usually ships in 3-6 days

0

6

Honda 41105-ZY6-010

SCREEN, L. WATER

$14.99

$

Usually ships in 3-6 days

0

7

Honda 41107-ZX2-C00ZA

TAB, TRIM *NHB14M* (AQUA MARINE SILVER METALLIC)

$65.99

$

Usually ships in 3-6 days

0

7

Honda 41107-ZX2-C00ZD

TAB, TRIM *NH565* (GRAND PRIX WHITE)

$98.99

$

Usually ships in 3-6 days

0

8

Honda 41109-ZW1-B00

METAL, ANODE

$25.99

$

Usually ships in 3-6 days

0

9

Honda 41171-ZV5-000

END, NIPPLE

$8.99

$

Usually ships in 3-6 days

0

10

Honda 41172-ZV5-000

NIPPLE, SENSOR

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

In Stock, only 2 left!

0

12

Honda 90103-ZY6-000

BOLT-WASHER (10X32)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$20.99

$

Usually ships in 3-6 days

0

14

Honda 90123-ZY6-000

BOLT-WASHER (10X40)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, Qty 6

0

19

Honda 92101-06050-4J

BOLT, HEX. (6X50)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 93700-05050-4J

SCREW, OVAL (5X50)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X250)

$31.99

$

Usually ships in 3-6 days

0
