BF115 J XDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

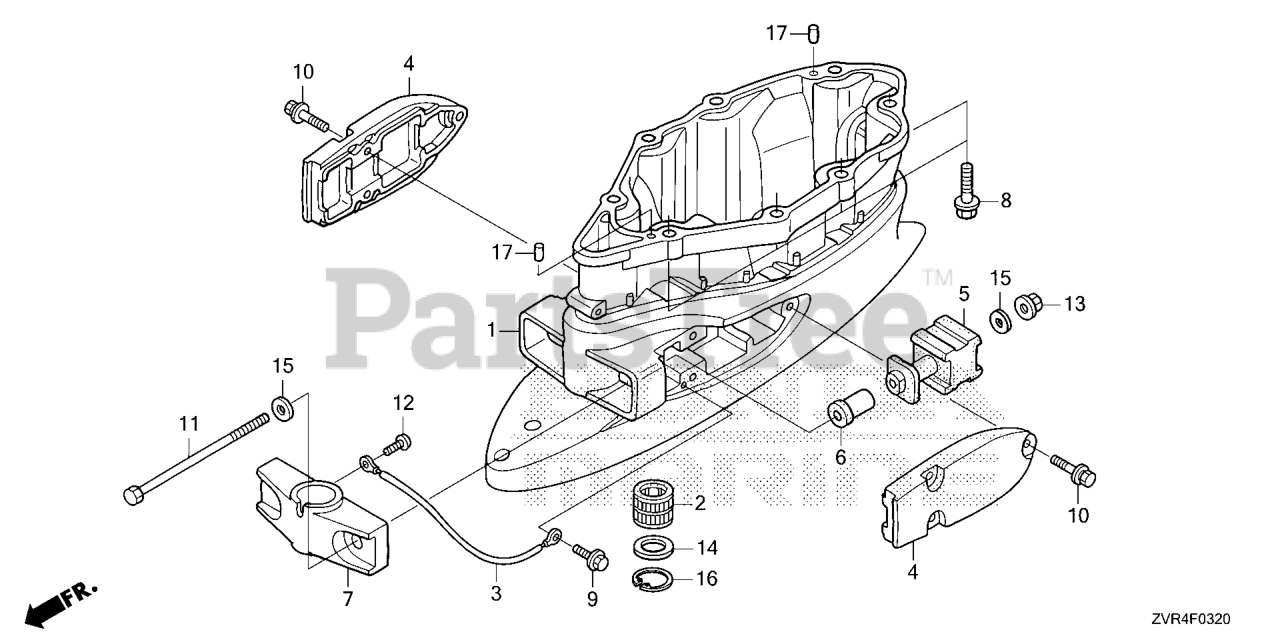

EXTENSION CASE Parts Diagram

  • Title

1

Honda 40201-ZY6-611ZB

CASE, EXTENSION *NHB14M* (AQUA MARINE SILVER METALLIC)

$1673.99

$

Usually ships in 3-6 days

0

1

Honda 40201-ZY6-611ZD

CASE,EXTENS*NH565*

$1443.99

$

Usually ships in 3-6 days

0

2

Honda 40210-ZW1-710

BUSH, VERTICAL SHAFT

$39.99

$

Usually ships in 3-6 days

0

3

Honda 40219-ZY6-033

WIRE, LEAD (1.5X137MM)

$11.99

$

In Stock, only 1 left!

0

4

Honda 50111-ZW1-010ZB

HOUSING, MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$116.99

$

Usually ships in 3-6 days

0

4

Honda 50111-ZW1-010ZD

HSG,LWR MT*NH565*

$94.99

$

Usually ships in 3-6 days

0

5

Honda 50155-ZW5-000

RUBBER, MOUNT (LOWER)

$122.99

$

Usually ships in 3-6 days

0

6

Honda 50156-ZW1-010

SEE PART DETAILS - PRI; COLLAR, MOUNTING (LOWER)

$24.99

$

Usually ships in 3-6 days

0

7

Honda 50161-ZW1-020ZB

HOUSING, CENTER MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$222.99

$

Usually ships in 3-6 days

0

7

Honda 50161-ZW1-020ZD

HSG,LWR MT*NH565*

$135.99

$

Usually ships in 3-6 days

0

8

Honda 90002-ZY6-000

BOLT, FLANGE (10X40)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 90103-ZW9-010

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90105-ZY6-000

BOLT-WASHER (8X30)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 90118-ZY6-000

BOLT, HEX. (12X225)

$54.99

$

Usually ships in 3-6 days

0

12

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90302-ZW5-003

NUT, FLANGE (12MM)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90501-ZW1-710

WASHER (26MM)

$26.99

$

Usually ships in 3-6 days

0

15

Honda 90559-ZW1-000

WASHER, PLAIN (12MM)

$7.99

$

Usually ships in 3-6 days

0

16

Honda 90651-ZW1-710

CIRCLIP (INNER) (40MM)

$16.99

$

Usually ships in 3-6 days

0

17

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0
