BF115 J XDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) ACTUATOR Parts Diagram

Marine Engine, Made in Japan

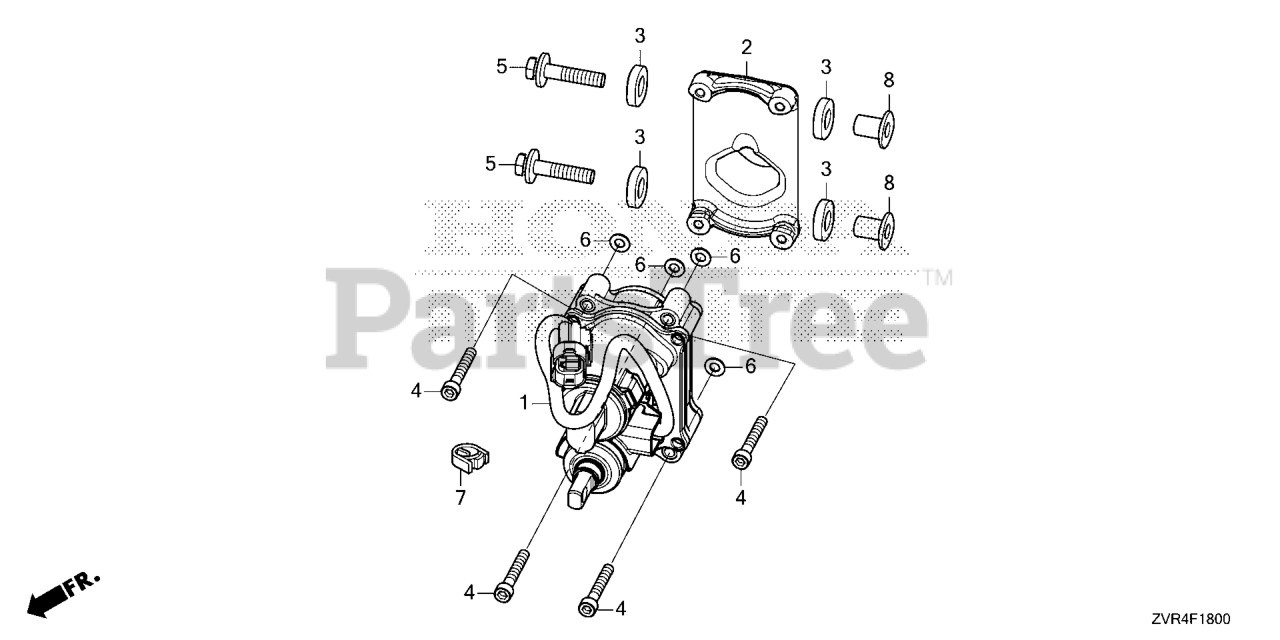

ACTUATOR Parts Diagram

  • Title
1

Honda 36520-ZVT-003

ACTUATOR, SHIFT

$707.99

$

Usually ships in 3-6 days

0

2

Honda 36521-ZVT-000

BRKT, SHIFT ACTUATOR

$93.99

$

Usually ships in 3-6 days

0

3

Honda 36522-ZVL-000

RUBBER, CUSHION

$5.49

$

Usually ships in 3-6 days

0

4

Honda 90103-ZVT-000

BOLT, SOCKET (6X38)

$5.99

$

Usually ships in 3-6 days

0

5

Honda 90116-ZY6-000

BOLT-WASHER (8X40)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90502-ZVT-000

WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90683-ZX2-003

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

8

Honda 91551-ZVT-000

COLLAR (8X17)

$7.99

$

Usually ships in 3-6 days

0
