BF115 J LRA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) TILT LIMIT KIT Parts Diagram

Marine Engine, Made in Japan

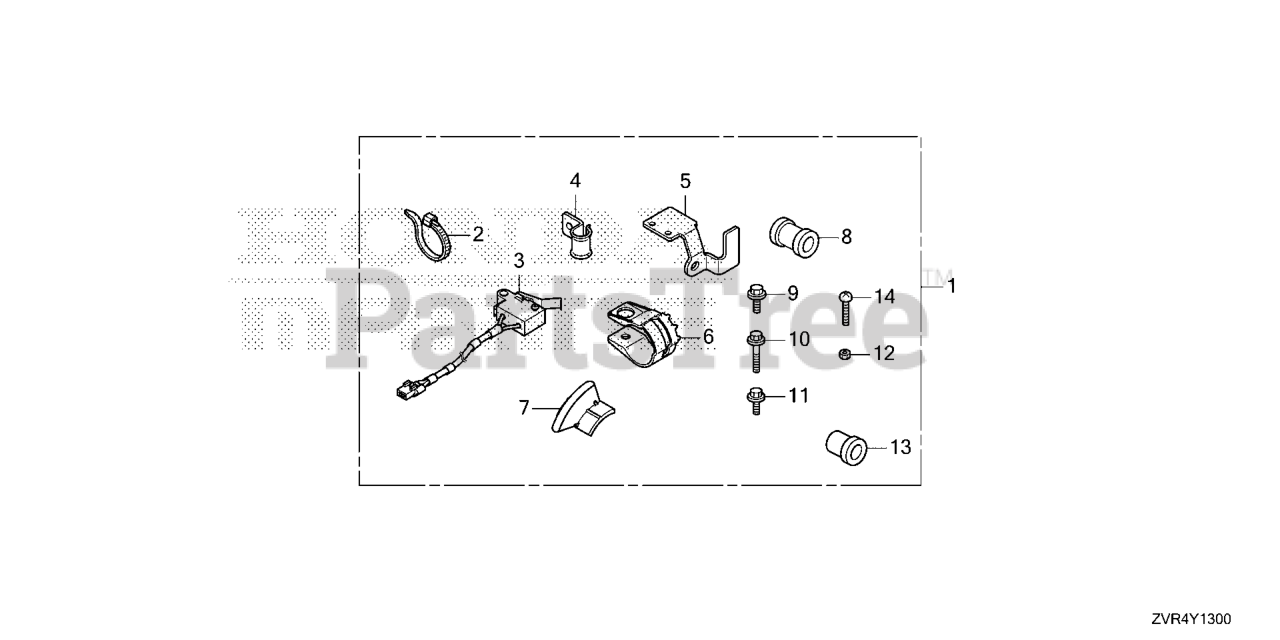

TILT LIMIT KIT Parts Diagram

  • Title

1

Honda 06357-ZVT-000

TILT LIMIT KIT

Note: (Optional)

$68.99

$

Usually ships in 3-6 days

0

2

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

3

Honda 35745-ZVT-003

SW ASSY., TILT LIMIT

Note: (Optional)

$83.99

$

Usually ships in 3-6 days

0

4

Honda 50209-ZVT-000

CLAMP, TUBE A

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 50222-ZVT-000

BRACKET

Note: (Optional)

$16.99

$

Usually ships in 3-6 days

0

6

Honda 50223-ZVT-000

CAM A

Note: (Optional)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 50224-ZVT-000

CAM B

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 56118-ZVT-000

GROMMET, CODE

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90107-ZVT-000

BOLT, FLANGE (5X25)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90108-ZVT-000

BOLT, FLANGE (5X12)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90325-MJT-E01

NUT, U (3MM)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91561-ZVT-000

COLLAR

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 93500-03014-4J

SCREW, PAN (3X14)

Note: (Optional)

$0.99

$

Usually ships in 3-6 days

0
