BF115 J LDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) FUEL PUMP@FUEL HOSE Parts Diagram

Marine Engine, Made in Japan

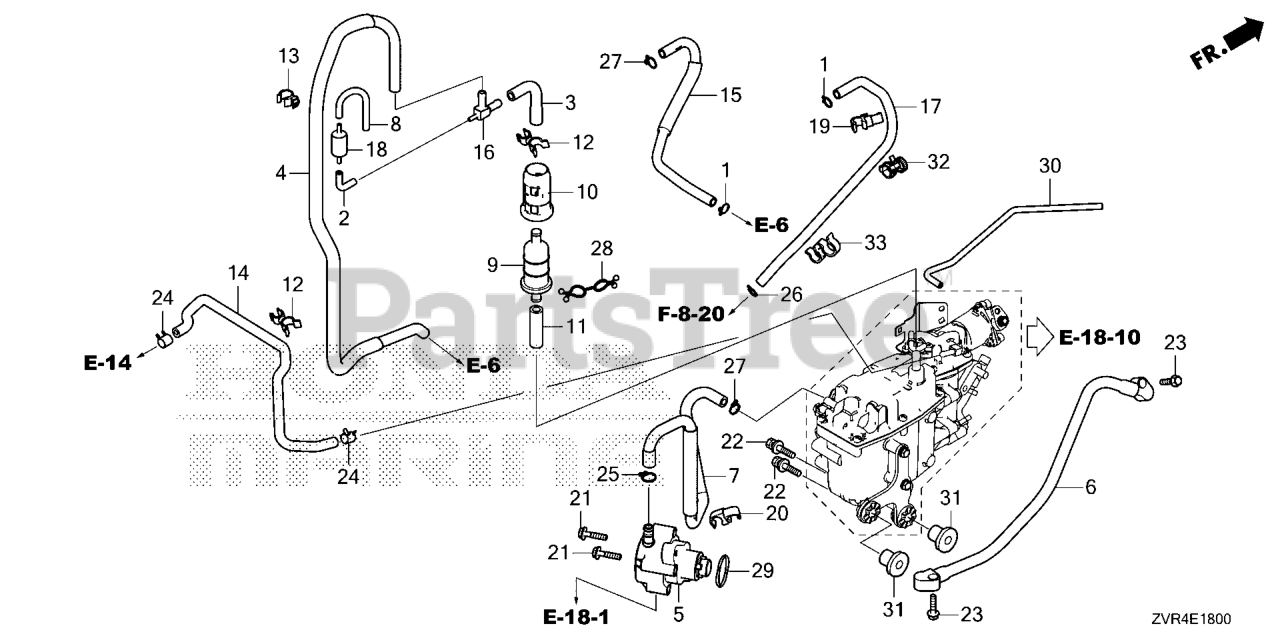

FUEL PUMP@FUEL HOSE Parts Diagram

  • Title
1

Honda 16163-GHB-610

CLIP, TUBE (ENGINE NO.)

$2.49

$

Usually ships in 3-6 days

0

2

Honda 16196-ZY6-000

TUBE C, AIR VENT

$8.99

$

Usually ships in 3-6 days

0

3

Honda 16198-ZY6-000

TUBE B, AIR VENT

$11.99

$

Usually ships in 3-6 days

0

4

Honda 16199-ZY6-000

TUBE, AIR VENT

$17.99

$

Usually ships in 3-6 days

0

5

Honda 16700-ZY6-013

PUMP ASSY., FUEL (MSDS)

$

$

Not available

6

Honda 16755-ZY6-003

HOSE, FUEL

$128.99

$

Usually ships in 3-6 days

0

7

Honda 16860-ZY6-A00

TUBE B, FUEL

$41.99

$

Usually ships in 3-6 days

0

8

Honda 16881-ZV5-000

TUBE D, FUEL

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16911-759-003

FILTER, FUEL PUMP

$44.99

$

In Stock, only 1 left!

0

10

Honda 16915-ZW5-000

SUSPENSION, STRAINER

$16.99

$

Usually ships in 3-6 days

0

11

Honda 16952-MZ5-000

TUBE B, FUEL

$2.49

$

Usually ships in 3-6 days

0

12

Honda 16965-VM0-771

CLAMP, HOSE

$3.99

$

Usually ships in 3-6 days

0

13

Honda 17368-KV7-671

CLAMP, PIPE

$3.49

$

Usually ships in 3-6 days

0

14

Honda 17723-ZY6-020

HOSE, PRESSURE REGULATOR RETURN

$33.99

$

Usually ships in 3-6 days

0

15

Honda 19267-ZVT-000

TUBE COMP F, WATER

$4.49

$

Usually ships in 3-6 days

0

16

$14.99

$

Usually ships in 3-6 days

0

17

Honda 19273-ZVT-000

TUBE COMP G, WATER

$6.99

$

Usually ships in 3-6 days

0

18

Honda 36135-ZY6-003

VALVE, CHECK

$37.99

$

Usually ships in 3-6 days

0

19

Honda 47585-SJ6-003

CLIP, R. BRAKE WIRE

$9.49

$

Usually ships in 3-6 days

0

20

Honda 53740-SE0-953

CLIP, SENSOR HOSE

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90010-ZY6-030

BOLT, FLANGE (6X27)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90014-ZY9-M01

BOLT-WASHER (8X35)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90014-ZZ5-M01

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90601-ZW5-030

CLAMP, TUBE (D10.7)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90601-ZY6-000

CLIP, TUBE (B1 14.5)

$2.99

$

In Stock, only 1 left!

0

26

Honda 90602-ZVD-000

CLIP, TUBE (B1 11)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90605-ZY6-003

CLIP, FUEL HOSE

$7.49

$

Usually ships in 3-6 days

0

29

Honda 91317-PA9-003

O-RING (33.2X2.4) (NOK)

$6.49

$

Usually ships in 3-6 days

0

30

Honda 91406-ZVT-000

TUBE, DRAIN

$5.99

$

Usually ships in 3-6 days

0

31

Honda 91504-ZY9-M03

COLLAR (8.5X14.5)

$7.99

$

Usually ships in 3-6 days

0

32

Honda 91558-SM4-003

CLIP, TUBE (135MM) (BLACK)

$8.99

$

Usually ships in 3-6 days

0

33

Honda 91599-SH3-A32

CLAMP, PURGE HOSE (NOT AVAILABLE)

$7.99

$

Usually ships in 3-6 days

0
