BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) WATER PUMP@VERTICAL SHAFT Parts Diagram

Marine Engine, Made in Japan

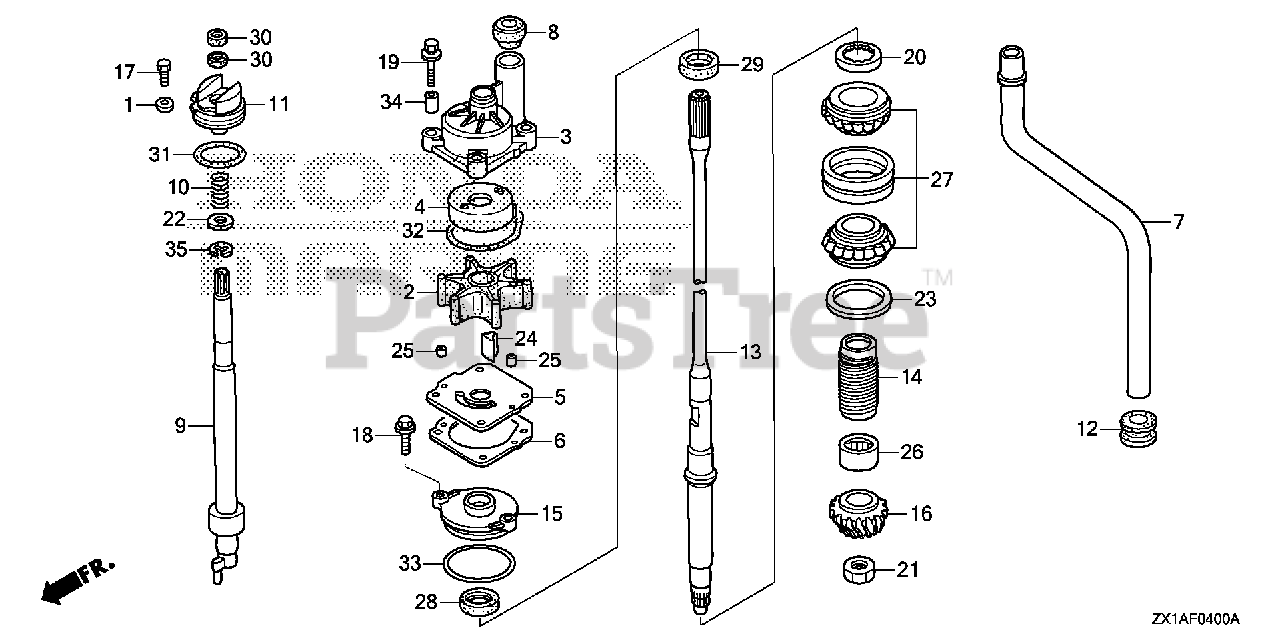

WATER PUMP@VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

2

Honda 19210-ZW1-B04

SEE PART DETAILS - PRI; IMPELLER, PUMP

$55.99

$

Usually ships in 3-6 days

0

3

Honda 19221-ZY6-A00

HOUSING, IMPELLER

$64.99

$

Usually ships in 3-6 days

0

4

Honda 19223-ZW1-B00

LINER, PUMP

$42.99

$

Usually ships in 3-6 days

0

5

Honda 19231-ZY6-000

COVER, IMPELLER

$20.99

$

Usually ships in 3-6 days

0

6

Honda 19234-ZY6-000

GASKET B, IMPELLER

$11.99

$

Usually ships in 3-6 days

0

7

Honda 19251-ZY6-611

TUBE, WATER (XL)

$52.99

$

Usually ships in 3-6 days

0

8

Honda 19253-ZW1-B01

SEE PART DETAILS - PRI; RING, WATER TUBE SEAL

$8.49

$

In Stock, only 1 left!

0

9

Honda 24310-ZY6-710

ROD, SHIFT (COUNTER ROTATION)

$234.99

$

Usually ships in 3-6 days

0

10

Honda 24318-ZY3-000

SPRING, SHIFT ROD

$3.99

$

Usually ships in 3-6 days

0

11

Honda 24343-ZY6-010

SEE PART DETAILS - PRI; HOLDER, SHIFT ROD

$82.99

$

Usually ships in 3-6 days

0

12

Honda 40204-ZW1-000

GROMMET, EXTENSION CASE

$10.99

$

Usually ships in 3-6 days

0

13

Honda 41112-ZY6-611

SHAFT, VERTICAL (XL)

$1056.99

$

Usually ships in 3-6 days

0

14

Honda 41116-ZW1-B00

SLINGER, OIL

$19.99

$

Usually ships in 3-6 days

0

15

Honda 41117-ZZ3-000

HOUSING, WATER SEAL

$47.99

$

Usually ships in 3-6 days

0

16

Honda 41131-ZY6-000

GEAR, PINION

$220.99

$

Usually ships in 3-6 days

0

17

Honda 90105-881-000

BOLT, HEX. (6X12) Use up to Frame SN 1005248.

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90116-ZY6-000

BOLT-WASHER (8X40)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 90242-ZW1-000

NUT, LOCK (64MM)

$36.99

$

Usually ships in 3-6 days

0

21

Honda 90303-ZW5-000

NUT, HEX. (18MM)

$25.99

$

Usually ships in 3-6 days

0

22

Honda 90472-723-000

WASHER, PLAIN (12MM)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90518-ZW1-B00

SHIM A, GEAR (0.10)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 90519-ZW1-B00

SHIM B, GEAR (0.15)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 90520-ZW1-B00

SHIM C, GEAR (0.30)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 90521-ZW1-B00

SHIM D, GEAR (0.50)

$10.99

$

Usually ships in 3-6 days

0

24

Honda 90752-ZW1-B02

KEY, WOODRUFF

$18.99

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91052-ZY6-003

BEARING, NEEDLE (28.575X44.45X31.75)

$68.99

$

Usually ships in 3-6 days

0

27

Honda 91054-ZW1-B31

BEARING, TAPER ROLLER (30X62X40)

$106.99

$

Usually ships in 3-6 days

0

28

Honda 91251-ZY6-003

SEAL, WATER (23X36X8)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 91253-ZZ3-003

SEAL, WATER (23X36X6)

$7.99

$

Usually ships in 3-6 days

0

30

Honda 91254-ZY3-003

SEAL, WATER (12X21X6)

$6.49

$

Usually ships in 3-6 days

0

31

Honda 91351-ZY6-003

O-RING (55.6X3.5)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 91356-ZW1-B00

O-RING, WATER PUMP

$11.99

$

In Stock, only 1 left!

0

33

Honda 91359-MB0-000

O-RING (58.5X3.5)

$7.49

$

In Stock, only 1 left!

0

34

Honda 91552-ZY6-000

COLLAR, DISTANCE

$6.49

$

Usually ships in 3-6 days

0

35

Honda 94540-10019

E-RING (10MM)

$3.99

$

Usually ships in 3-6 days

0
