BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) STARTER MOTOR Parts Diagram

Marine Engine, Made in Japan

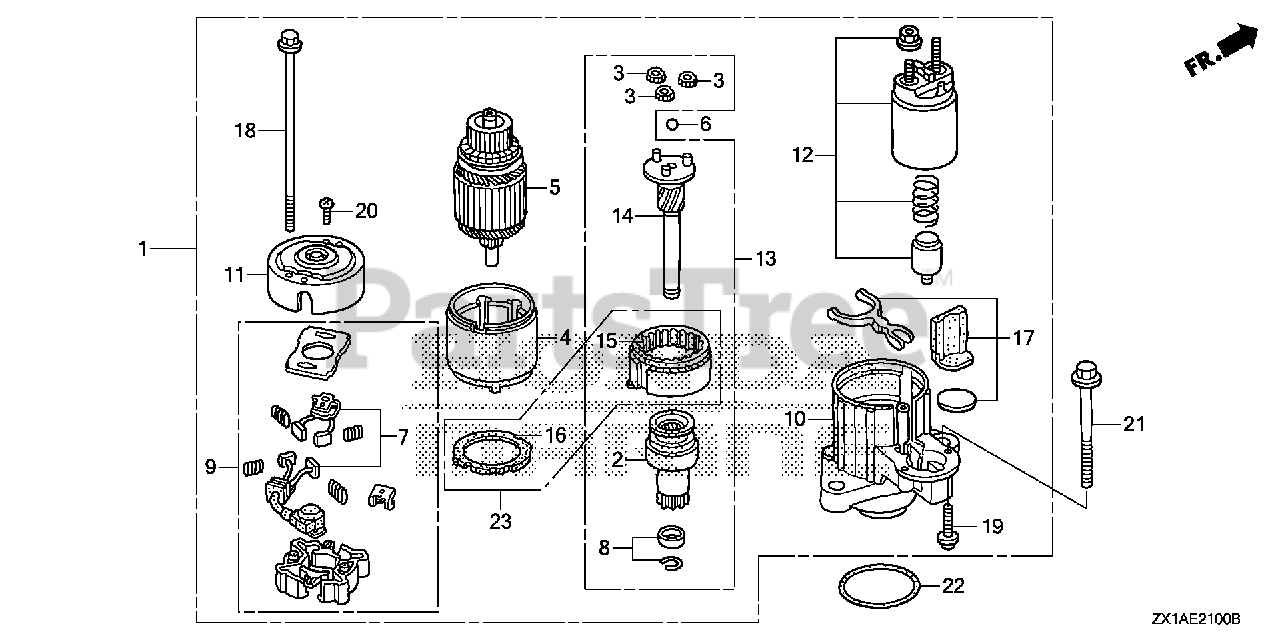

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZY6-003

STARTER MOTOR ASSY.

$1043.99

$

Usually ships in 3-6 days

0

2

Honda 31207-ZY3-003

CLUTCH, OVERRUNNING

Note: Use up to Engine SN 1004968.

$339.99

$

Usually ships in 3-6 days

0

2

Honda 31207-ZY9-H01

CLUTCH, OVERRUNNING

Note: Use from Engine SN 1004969.

$299.99

$

Usually ships in 3-6 days

0

3

Honda 31215-PY3-004

GEAR ASSY., PLANETARY

$68.99

$

Usually ships in 3-6 days

0

4

Honda 31216-ZY6-003

YOKE

$399.99

$

Usually ships in 3-6 days

0

5

Honda 31217-ZW5-003

ROTOR

$492.99

$

Usually ships in 3-6 days

0

6

Honda 31218-PY3-004

BALL, STEEL

$4.99

$

Usually ships in 3-6 days

0

7

Honda 31226-ZY6-003

BRUSH SET

Note: Use up to Engine SN 1004968.

$54.99

$

Usually ships in 3-6 days

0

7

Honda 31227-ZY6-003

BRUSH SET

Note: Use from Engine SN 1004969.

$45.99

$

Usually ships in 3-6 days

0

8

Honda 31229-ZY9-H01

STOPPER SET, SLEEVE

Note: Use from Engine SN 1004969.

$22.99

$

Usually ships in 3-6 days

0

9

Honda 31231-ZY6-003

HOLDER, BRUSH

Note: Use up to Engine SN 1004968.

$110.99

$

Usually ships in 3-6 days

0

9

Honda 31232-ZY6-003

HOLDER, BRUSH

Note: Use from Engine SN 1004969.

$100.99

$

Usually ships in 3-6 days

0

10

Honda 31235-ZY6-003

BRACKET, FR.

$207.99

$

Usually ships in 3-6 days

0

11

Honda 31236-ZY6-003

BRACKET, RR.

$49.99

$

Usually ships in 3-6 days

0

12

Honda 31240-ZY6-003

SWITCH ASSY., MAGNET

Note: Use up to Engine SN 1004968.

$378.99

$

Usually ships in 3-6 days

0

12

Honda 31240-ZY9-003

SWITCH ASSY., MAGNET

Note: Use from Engine SN 1004969.

$378.99

$

Usually ships in 3-6 days

0

13

Honda 31242-ZY6-003

SHAFT ASSY., CLUTCH

Note: Use up to Engine SN 1004968.

$750.99

$

Usually ships in 3-6 days

0

13

Honda 31242-ZY9-H01

SHAFT ASSY., CLUTCH

Note: Use from Engine SN 1004969.

$623.99

$

Usually ships in 3-6 days

0

14

Honda 31246-ZY3-003

SHAFT ASSY., GEAR

Note: Use up to Engine SN 1004968.

$251.99

$

Usually ships in 3-6 days

0

14

Honda 31246-ZY9-H01

SHAFT ASSY., GEAR

Note: Use from Engine SN 1004969.

$207.99

$

Usually ships in 3-6 days

0

15

Honda 31247-ZW1-004

GEAR ASSY. (INNER)

Note: Use up to Engine SN 1004968.

$102.99

$

Usually ships in 3-6 days

0

16

Honda 31249-ZW1-004

GASKET

Note: Use up to Engine SN 1004968.

$15.99

$

Usually ships in 3-6 days

0

17

Honda 31250-ZW1-004

LEVER SET

$19.99

$

Usually ships in 3-6 days

0

18

Honda 31261-ZW1-004

BOLT A, THROUGH

$5.99

$

Usually ships in 3-6 days

0

19

Honda 31226-ZY9-H01

SCREW, PAN (6X22)

Note: Use from Engine SN 1004969.

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90106-ZW1-004

SCREW, PAN (6X22) (SPECIAL)

Note: Use up to Engine SN 1004968.

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90107-ZW1-004

SCREW, PAN (5X8)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90164-ZW4-000

BOLT, FLANGE (10X90)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 91303-ZY3-000

O-RING (59.4X3.1)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 31251-ZY9-H01

GEAR ASSY. (INNER)

Note: Use from Engine SN 1004969.

$71.99

$

Usually ships in 3-6 days

0
