BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (NHK MEC) Parts Diagram

Marine Engine, Made in Japan

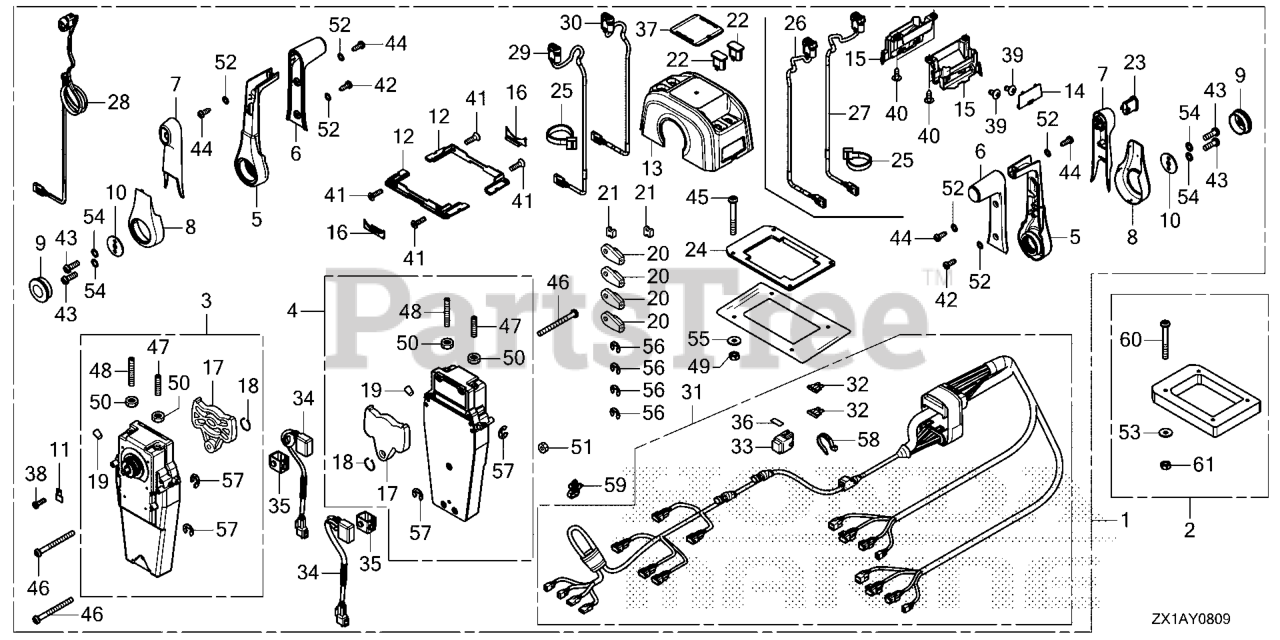

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (NHK MEC) Parts Diagram

  • Title

1

Honda 06240-ZY6-V10

BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL) (TROLLING CONTROL)

Note: (Optional)

$731.99

$

Usually ships in 3-6 days

0

1

Honda 06240-ZY6-V90

BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)

Note: (Optional)

$

$

Not available

1

Honda 06240-ZY6-V91

BOX KIT, R/C

Note: (Optional)

$

$

Not available

2

Honda 06241-ZY6-V10

SPACER KIT, REMOTE CONTROL BOX (TOP MOUNT DUAL)

Note: (Optional)

$54.99

$

Usually ships in 3-6 days

0

3

Honda 24810-ZY6-U11

HOUSING ASSY., L. (INNER) (TOP MOUNT) (NOT AVAILABLE)

Note: (Optional)

$434.99

$

Usually ships in 3-6 days

0

4

Honda 24810-ZY6-V11

HOUSING ASSY., R. (INNER) (TOP MOUNT) (NOT AVAILABLE)

Note: (Optional)

$434.99

$

Usually ships in 3-6 days

0

5

Honda 24811-ZY6-U11

HANDLE, REMOTE CONTROL (NOT AVAILABLE)

Note: (Optional)

$137.99

$

Usually ships in 3-6 days

0

6

Honda 04601-ZY6-U10

COVER, GRIP

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0

7

Honda 24813-ZY6-U11

GRIP, REMOTE CONTROL HANDLE (NOT AVAILABLE)
(Superseded to 04601-ZY6-U10)

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0

8

Honda 24814-ZY6-U11

COVER, LEVER (NOT AVAILABLE)

Note: (Optional)

$66.99

$

Usually ships in 3-6 days

0

9

Honda 24816-ZY6-U11

BUTTON, THROTTLE (NOT AVAILABLE)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

10

Honda 24817-ZW5-U01

PLATE, HANDLE

Note: (Optional)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 24818-ZW5-U01

PLATE, CABLE CLAMP

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 24819-ZY6-V11

BRACKET, REMOTE CONTROL HOUSING (NOT AVAILABLE)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 24820-ZY6-V11

HOUSING, DUAL REMOTE CONTROL BOX (NOT AVAILABLE)

Note: (Optional)

$55.99

$

Usually ships in 3-6 days

0

14

Honda 24821-ZY6-V11

PLUG, DUAL HOUSING (NOT AVAILABLE)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 24824-ZY6-V11

GUIDE, DUAL WATER (NOT AVAILABLE)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 24825-ZY6-U11

HOUSING, LEAD (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 24826-ZW5-U01

SEE PART DETAILS - PRI; PLATE, DWELL

Note: (Optional)

$19.99

$

Usually ships in 3-6 days

0

18

Honda 24827-ZY6-U11

RING, SNAP (NOT AVAILABLE)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 24828-ZY6-U11

GROMMET (NOT AVAILABLE)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 24831-ZW5-U01

TERMINAL, CABLE

Note: (Optional)

$11.99

$

In Stock, only 2 left!

0

21

Honda 24832-ZW5-U01

SPACER, CABLE CLAMP

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 24832-ZY6-U91

CAP, BLANK (NOT AVAILABLE)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 24832-ZY6-V11

CAP, POWER TRIM-TILT BLANK (NOT AVAILABLE)

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 24834-ZY6-V11

GASKET, DUAL (LOOSE PARTS) (NOT AVAILABLE)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

25

Honda 24835-ZY6-U11

BAND, TY-RAP (POWER TRIM-TILT) (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 35340-ZY6-V11

SWITCH ASSY., TROLLING CONTROL (PORT) (NOT AVAILABLE)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

27

Honda 35340-ZY6-V21

SWITCH ASSY., TROLLING CONTROL (STAR) (NOT AVAILABLE)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

28

Honda 35370-ZY6-U11

SWITCH ASSY., POWER TRIM-TILT (NOT AVAILABLE)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

29

Honda 35370-ZY6-V11

SWITCH ASSY., POWER TRIM-TILT (PORT) (NOT AVAILABLE)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

30

Honda 35370-ZY6-V21

SWITCH ASSY., POWER TRIM-TILT (STAR) (NOT AVAILABLE)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

31

Honda 35375-ZY6-V10

CABLE ASSY., POWER TRIM-TILT (TROLLING CONTROL) (NOT AVAILABLE)

Note: (Optional)

$461.99

$

Usually ships in 3-6 days

0

31

Honda 35375-ZY6-V90

CABLE ASSY., POWER TRIM-TILT (NOT AVAILABLE)

Note: (Optional)

$390.99

$

Usually ships in 3-6 days

0

32

Honda 38206-797-A01

FUSE, BLADE (3A)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

33

Honda 38216-ZVL-901

COVER ASSY., FUSE (3A)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

34

Honda 38580-ZY6-V11

RELAY ASSY., CONTROL (NOT AVAILABLE)

Note: (Optional)

$72.99

$

Usually ships in 3-6 days

0

35

Honda 38581-ZY6-V11

HOLDER, RELAY (NOT AVAILABLE)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

36

Honda 87117-Z2E-000

LABEL, FUSE (3A)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 87703-ZY6-V11

MARK, REMOTE CONTROL (DUAL) (NOT AVAILABLE)

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

38

Honda 90101-ZW5-U00

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

39

Honda 90102-ZY6-U11

SCREW, TRUSS (5X10) (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 90103-ZY6-U11

SCREW, TRUSS (5X16) (TAPPING) (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

41

Honda 90104-ZW5-U00

SCREW, PAN (5X18)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 90104-ZY6-U11

SCREW, PAN (5X14) (TAPPING) (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

43

Honda 90106-ZW5-U00

SCREW, PAN (6X18)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 90106-ZY6-U11

SCREW, PAN (5X14) (TAPPING)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 90107-ZW5-U00

SCREW, PAN (5X40)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 90108-ZW5-U00

SCREW, PAN (5X55)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 90111-ZY6-U11

BOLT, STOPPER (F) (NOT AVAILABLE)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

48

Honda 90112-ZY6-U11

BOLT, STOPPER (R) (NOT AVAILABLE)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

49

Honda 90301-ZW5-U00

NUT, HEX. (5MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

50

Honda 90301-ZZ5-D01

NUT (6MM) (LOOSE PARTS)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 90302-ZW5-U21

NUT, HEX. (5MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 90501-ZW5-U00

SEE PART DETAILS - PRI; WASHER, LOCK (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

53

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

Note: (Optional)

$3.99

$

In Stock, only 2 left!

0

54

Honda 90502-ZW5-U00

WASHER, LOCK (6MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

55

Honda 90503-ZW5-U00

WASHER, PLAIN (5MM)

Note: (Optional)

$0.99

$

Usually ships in 3-6 days

0

56

Honda 90651-ZZ5-D01

E-RING (6MM) (LOOSE PARTS)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

57

Honda 90651-ZZ5-D01

E-RING (6MM) (LOOSE PARTS)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

58

Honda 91531-SR3-003

HOLDER, CONNECTOR (128.6MM) (NATURAL)

Note: (Optional)

$7.99

$

Usually ships in 3-6 days

0

59

Honda 91541-ZY6-V11

CLIP, HARNESS BAND (NOT AVAILABLE)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

60

Honda 93500-05065-4J

SCREW, PAN (5X65)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

61

Honda 94001-05490-0S

NUT, HEX. (5MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0
