BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) MOUNT CASE Parts Diagram

Marine Engine, Made in Japan

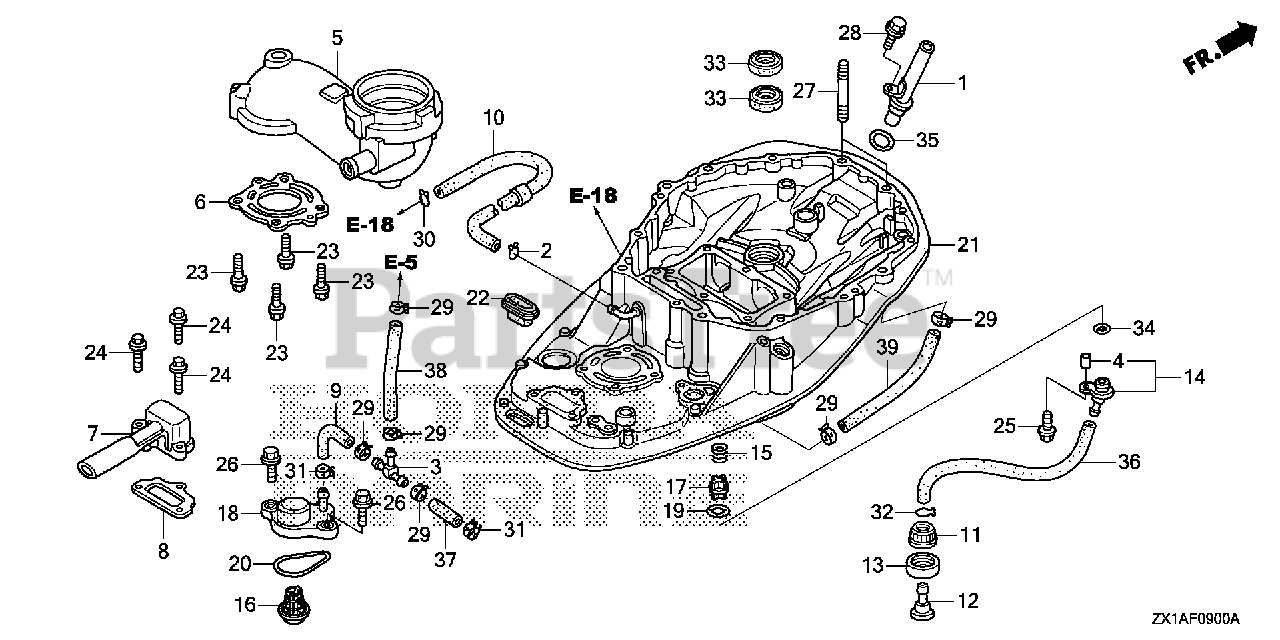

MOUNT CASE Parts Diagram

  • Title

1

Honda 15665-ZW1-020

SEE PART DETAILS - PRI; PIPE, OIL LEVEL

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16163-GHB-610

CLIP, TUBE (ENGINE NO.)

$2.49

$

Usually ships in 3-6 days

0

3

Honda 17195-MN5-000

T-JOINT

$12.99

$

Usually ships in 3-6 days

0

4

Honda 17202-ZV5-310

SEE PART DETAILS - PRI; COLLAR, DISTANCE (6.5X11X7.5)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 18130-ZY6-000ZA

GUIDE, EX. *NH8* (DARK GRAY)

$260.99

$

Usually ships in 3-6 days

0

6

Honda 18135-ZY6-003

GASKET, EX. GUIDE

$36.99

$

Usually ships in 3-6 days

0

7

Honda 18211-ZY6-000

PORT, IDLE EX.

$43.99

$

Usually ships in 3-6 days

0

8

Honda 18212-ZY6-000

GASKET, IDLE EX. PORT

$3.99

$

Usually ships in 3-6 days

0

9

Honda 19256-ZY6-000

TUBE, WATER RELIEF

$4.99

$

Usually ships in 3-6 days

0

10

Honda 19267-ZY6-010

TUBE F, WATER

$4.99

$

Usually ships in 3-6 days

0

11

Honda 19270-ZY3-000

NUT, WATER MOUTH

$17.99

$

Usually ships in 3-6 days

0

12

Honda 19271-ZY3-000

JOINT, WATER HOSE

$11.99

$

Usually ships in 3-6 days

0

13

Honda 19272-ZY3-000

SEAT, WATER MOUTH

$5.49

$

Usually ships in 3-6 days

0

14

Honda 19277-ZZ3-000

COVER, FLUSH VALVE
(Superseded to 19277-ZZ3-030)

$14.99

$

Usually ships in 3-6 days

0

14

Honda 19277-ZZ3-020

COVER, FLUSH VLV
(Superseded to 19277-ZZ3-030)

$14.99

$

Usually ships in 3-6 days

0

14

Honda 19277-ZZ3-030

COVER, FLUSH VALVE

$14.99

$

Usually ships in 3-6 days

0

15

Honda 19279-ZW9-010

SEE PART DETAILS - PRI; SPRING, FLUSH VALVE

$2.49

$

In Stock, only 3 left!

0

16

Honda 19290-ZY6-003

VALVE ASSY., RELIEF

$60.99

$

Usually ships in 3-6 days

0

17

Honda 19291-ZW9-000

VALVE, FLUSH

$7.99

$

Usually ships in 3-6 days

0

18

Honda 19295-ZY6-000

COVER, RELIEF VALVE

$25.99

$

Usually ships in 3-6 days

0

19

Honda 19297-ZW9-000

GASKET, FLUSH VALVE

$2.49

$

In Stock, only 3 left!

0

20

Honda 19317-ZW9-000

O-RING, THERMOSTAT COVER

$6.99

$

In Stock, only 1 left!

0

21

Honda 23170-ZY6-000ZA

CASE, MOUNT *NH8* (DARK GRAY)

$1051.99

$

Usually ships in 3-6 days

0

22

Honda 23173-ZY3-010

SEE PART DETAILS - PRI; RUBBER, MOUNT CASE SEAL

$11.99

$

Usually ships in 3-6 days

0

23

Honda 90014-ZY6-000

BOLT, FLANGE (8X30)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

Note: Use up to Frame SN 1002713.

$1.99

$

In Stock, Qty 5

0

25

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

Note: Use from Frame SN 1002714.

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90045-ZY6-000

BOLT, STUD (10X55)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 90601-ZY3-030

CLAMP, TUBE (D10.5) (ENGINE NO.)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90606-ZY6-003

CLAMP, TUBE (D10.5) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 90651-ZY6-000

CLIP B1, TUBE

$4.99

$

Usually ships in 3-6 days

0

33

Honda 91202-ZW5-003

SEAL, WATER (22X35X7)

$16.99

$

Usually ships in 3-6 days

0

34

Honda 91303-800-000

O-RING (16MM) (Honda Code 0065094).

$2.99

$

In Stock, only 1 left!

0

35

Honda 91309-PJ7-010

O-RING (11.5X3.5)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (95001-80001-(95001-80001-60M)

$35.99

$

Usually ships in 3-6 days

0

37

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0

38

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0

39

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X550)

$35.99

$

Usually ships in 3-6 days

0
