BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) METER KIT (DIGITAL) Parts Diagram

Marine Engine, Made in Japan

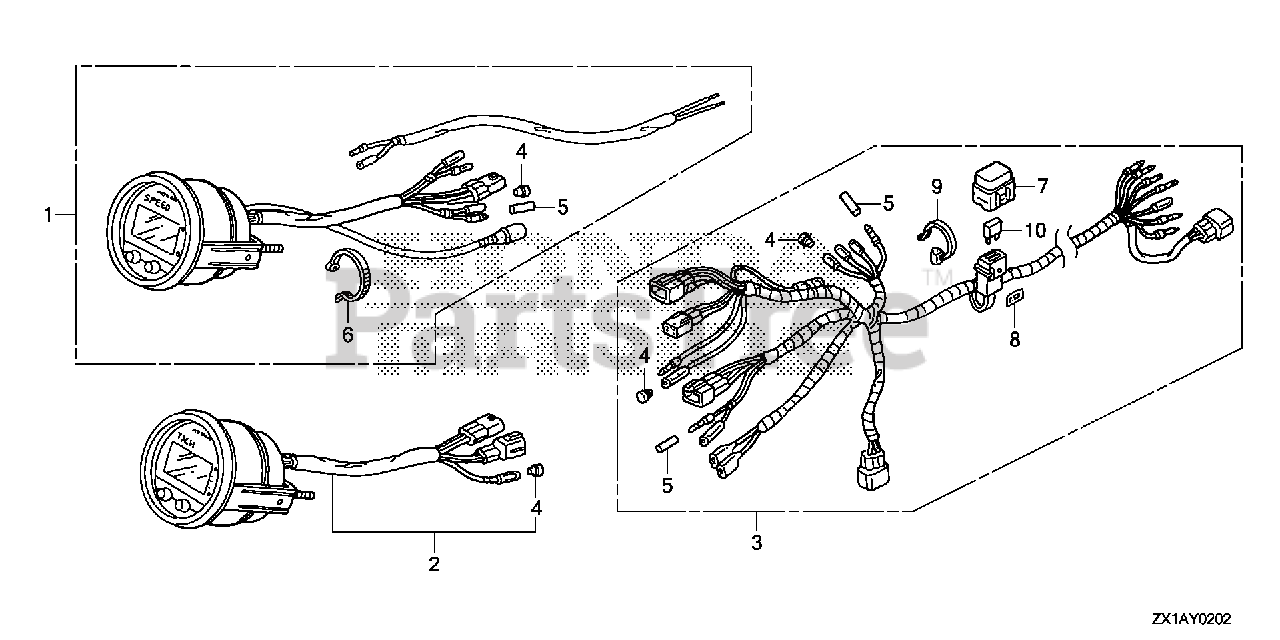

METER KIT (DIGITAL) Parts Diagram

  • Title

1

Honda 06373-ZY3-801

SEE PART DETAILS - PRI; SPEEDOMETER KIT (DIGITAL)(USA) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

1

Honda 06373-ZY3-811

SPEEDOMETER KIT (DIGITAL) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

2

Honda 06375-ZY3-802

METER KIT, TACHO (DIGITAL)(USA) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

2

Honda 06375-ZY3-812

METER KIT, TACHO (DIGITAL) (USE FOR 32540-ZY3-800/801)

Note: (Optional)

$

$

Currently unavailable

3

Honda 32540-ZZ3-740

HARNESS ASSY., METER (A)(DIGITAL)

Note: (Optional)

$377.99

$

Usually ships in 3-6 days

0

4

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

5

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 38216-ZY3-801

COVER ASSY., FUSE (7.5A)

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

8

Honda 87117-ZY3-800

MARK, FUSE (7.5A)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90650-ZY1-003

TIE, CABLE

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 98200-30750

FUSE, BLADE (7.5A)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
