BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) FUEL TUBE Parts Diagram

Marine Engine, Made in Japan

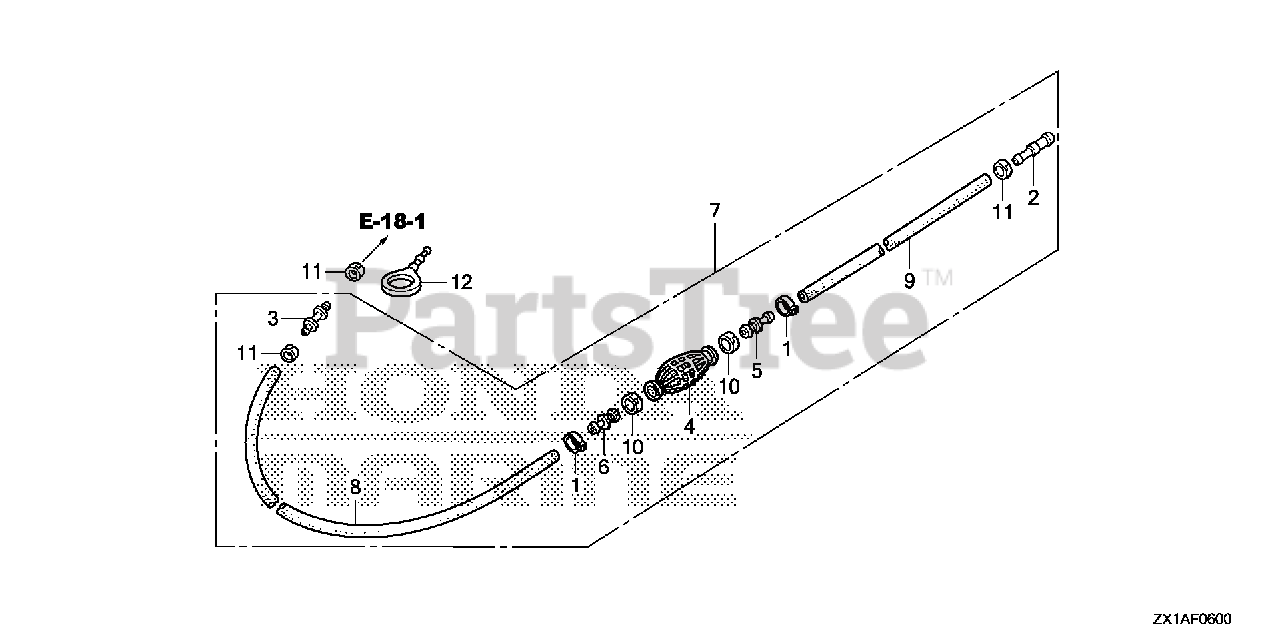

FUEL TUBE Parts Diagram

  • Title

1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16966-MR1-000

JOINT, FUEL TUBE (JOINT TYPE)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR5-000

JOINT, FUEL TUBE

$11.99

$

Usually ships in 3-6 days

0

4

Honda 17661-ZW9-900

BULB, PRIMER

$68.99

$

Usually ships in 3-6 days

0

5

Honda 17665-ZV5-000

VALVE, IN.

Note: Use up to Frame SN 8100019.

$17.99

$

Usually ships in 3-6 days

0

5

Honda 17665-ZX2-003

VALVE, IN.

Note: Use from Frame SN 8100020.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 17680-ZV4-000

VALVE, OUTLET

Note: Use up to Frame SN 8100019.

$17.99

$

Usually ships in 3-6 days

0

6

Honda 17680-ZX2-003

VALVE, OUTLET

Note: Use from Frame SN 8100020.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZX2-C02

TUBE, FUEL TANK

Note: Use from Frame SN 8100020.

$277.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

Note: Use up to Frame SN 8100019.

$232.99

$

Usually ships in 3-6 days

0

8

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 8100020.

$138.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: Use up to Frame SN 8100019.

$33.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

$33.99

$

Usually ships in 3-6 days

0

10

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 17738-ZY3-000

PLUG, FUEL TUBE

$14.99

$

Usually ships in 3-6 days

0
