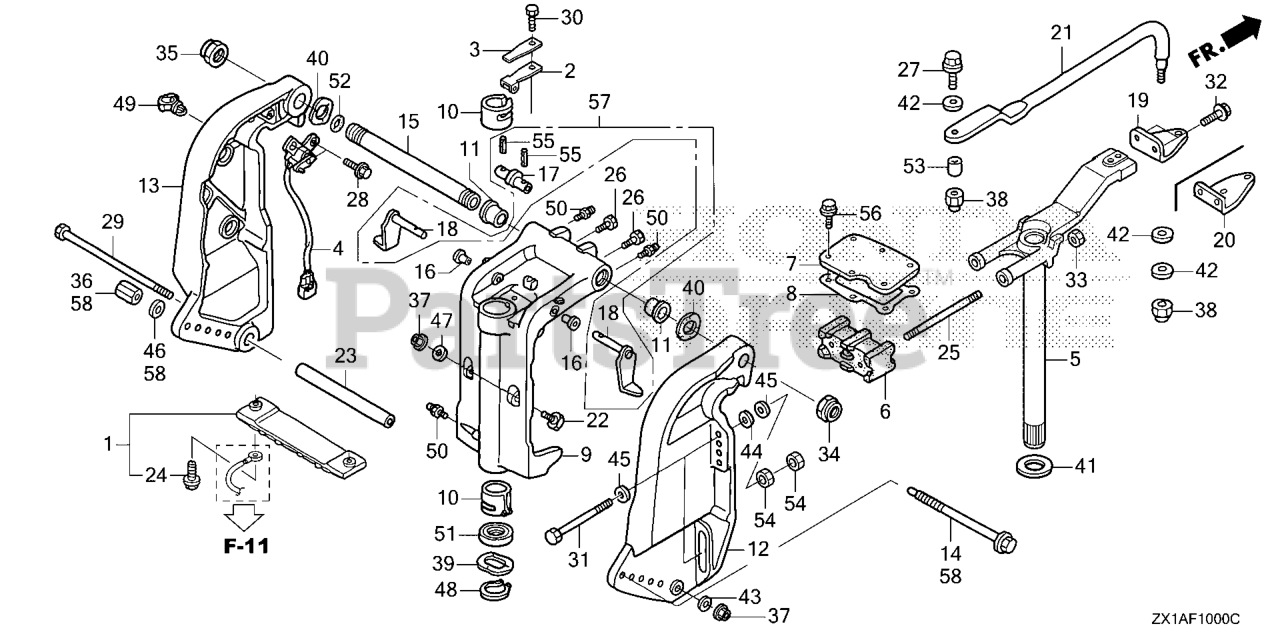

BF115 DK1 XA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) STERN BRACKET@SWIVEL CASE Parts Diagram

Marine Engine, Made in Japan

STERN BRACKET@SWIVEL CASE Parts Diagram

  • Title

1

Honda 06411-ZW1-020

SEE PART DETAILS - PRI; METAL KIT, ANODE Use from Frame SN 4800343.

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

2

Honda 24210-ZV1-010

SEE PART DETAILS - PRI; SPRING, CLICK

$14.99

$

Usually ships in 3-6 days

0

3

Honda 24221-ZV4-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

$10.99

$

Usually ships in 3-6 days

0

4

Honda 35660-ZY6-013

SEE PART DETAILS - PRI; SENSOR ASSY., TRIM ANGLE

$209.99

$

Usually ships in 3-6 days

0

5

Honda 50100-ZX1-000

FRAME, MOUNTING

$647.99

$

Usually ships in 3-6 days

0

6

Honda 50151-ZW5-000

MOUNT, RUBBER (UPPER)

$145.99

$

Usually ships in 3-6 days

0

7

Honda 50167-ZY6-000

HOLDER, MOUNTING (UPPER)

$114.99

$

Usually ships in 3-6 days

0

8

Honda 50168-ZY6-003

SEE PART DETAILS - PRI; GASKET, MOUNTING HOLDER (UPPER)

$17.99

$

Usually ships in 3-6 days

0

9

Honda 50201-ZW1-040ZB

CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC)

$908.99

$

Usually ships in 3-6 days

0

9

Honda 50201-ZW1-040ZD

CASE,SWIVEL*NH565*

Note: Use from Frame SN 1100561.

$783.99

$

Usually ships in 3-6 days

0

10

Honda 50211-ZV5-003

LINER, SWIVEL CASE

Note: Use up to Frame SN 1100560.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 50211-ZZ5-000

LINER, SWIVEL CASE

Note: Use from Frame SN 1100561.

$8.99

$

Usually ships in 3-6 days

0

11

Honda 50214-ZW1-000

BUSH, SWIVEL CASE

$14.99

$

Usually ships in 3-6 days

0

12

Honda 50301-ZW1-060ZB

BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 50301-ZW1-070ZB)

Note: Use up to Frame SN 1101969.

$552.99

$

Usually ships in 3-6 days

0

12

Honda 50301-ZW1-070ZB

BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

$552.99

$

Usually ships in 3-6 days

0

12

Honda 50301-ZW1-070ZD

BRACKET,STE*NH565*

Note: Use from Frame SN 1101970.

$476.99

$

Usually ships in 3-6 days

0

13

Honda 50311-ZW1-060ZB

BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 50311-ZW1-070ZB)

Note: Use up to Frame SN 1101969.

$552.99

$

Usually ships in 3-6 days

0

13

Honda 50311-ZW1-070ZB

BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC)

$552.99

$

Usually ships in 3-6 days

0

13

Honda 50311-ZW1-070ZD

BRACKET,STE*NH565*

Note: Use from Frame SN 1101970.

$476.99

$

Usually ships in 3-6 days

0

14

Honda 50341-ZW5-010

SEE PART DETAILS - PRI; ROD, ADJUSTING

Note: (Optional)

$72.99

$

Usually ships in 3-6 days

0

15

Honda 50381-ZY9-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$243.99

$

Usually ships in 3-6 days

0

16

Honda 50522-ZV5-000

BUSH, TILT ARM

$8.49

$

In Stock, only 2 left!

0

17

Honda 50527-ZW1-010

BRACKET, TILTING

Note: Use from Frame SN 1110052.

$19.99

$

Usually ships in 3-6 days

0

18

Honda 50529-ZW1-010

STOPPER, TILT

Note: Use from Frame SN 1110052.

$103.99

$

Usually ships in 3-6 days

0

19

Honda 53234-ZW1-010

SEE PART DETAILS - PRI; PLATE, STEERING

Note: (Optional)

$21.99

$

Usually ships in 3-6 days

0

20

Honda 53234-ZW5-010

PLATE, STEERING

Note: (Optional)

$46.99

$

Usually ships in 3-6 days

0

21

Honda 53238-ZW1-010

SEE PART DETAILS - PRI; ROD, STEERING

$89.99

$

Usually ships in 3-6 days

0

22

Honda 56516-ZW1-000

RECEIVER, THRUST

$26.99

$

Usually ships in 3-6 days

0

23

Honda 56539-ZZ0-C00

SEE PART DETAILS - PRI; COLLAR, CYLINDER (LOWER)

$90.99

$

Usually ships in 3-6 days

0

24

Honda 90009-ZW9-000

BOLT, FLANGE (6X23) Use from Frame SN 4800343.

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90101-ZW5-000

SEE PART DETAILS - PRI; BOLT, STUD (12X150)

$50.99

$

Usually ships in 3-6 days

0

26

Honda 90102-ZW1-000

BOLT (1/4-28UNF)

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

27

Honda 90105-ZW1-000

BOLT (3/8-24UNF)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90108-ZW1-000

BOLT, HEX. (10X235)

$50.99

$

Usually ships in 3-6 days

0

30

Honda 90110-881-000

BOLT, HEX. (6X14)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90129-ZZ3-000

BOLT, HEX. (12X119)

Note: Use up to Frame SN 1101343.

$18.99

$

Usually ships in 3-6 days

0

32

Honda 90154-ZW9-000

BOLT, FLANGE (10X25)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

33

Honda 90302-ZW5-003

NUT, FLANGE (12MM)

$8.99

$

Usually ships in 3-6 days

0

34

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$24.99

$

Usually ships in 3-6 days

0

35

Honda 90304-ZW1-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (M25X2.0)

$27.99

$

Usually ships in 3-6 days

0

36

Honda 90304-ZW5-000

NUT, ADJUSTER ROD

Note: (Optional)

$28.99

$

Usually ships in 3-6 days

0

37

Honda 90306-ZW4-003

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$6.49

$

Usually ships in 3-6 days

0

38

Honda 90307-ZV5-003

NUT, SELF-LOCK (3/8-24UNF)

$9.49

$

Usually ships in 3-6 days

0

39

Honda 90501-ZV5-000

WASHER, WAVE (40MM)

$10.99

$

Usually ships in 3-6 days

0

40

Honda 90502-ZV5-000

WASHER, WAVE (26MM)

$12.99

$

Usually ships in 3-6 days

0

41

Honda 90504-ZV5-000

WASHER, THRUST (34MM)

$10.99

$

Usually ships in 3-6 days

0

42

Honda 90514-ZV4-000

WASHER (10MM)

$2.49

$

In Stock, only 2 left!

0

43

Honda 90511-921-000

WASHER, PLAIN (10MM)

Note: Use from Frame SN 1100438.

$1.49

$

Usually ships in 3-6 days

0

43

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

Note: Use up to Frame SN 1100437.

$3.99

$

Usually ships in 3-6 days

0

44

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

Note: Use from Frame SN 1101357. Use up to Frame SN 1101343.

$6.99

$

Usually ships in 3-6 days

0

45

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

Note: Use from Frame SN 1101357. Use up to Frame SN 1101343.

$4.49

$

Usually ships in 3-6 days

0

46

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

47

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

48

Honda 90651-ZV5-000

CIRCLIP (OUTER) (39MM)

$11.99

$

Usually ships in 3-6 days

0

49

Honda 90681-763-A01

CLIP, WIRE HARNESS

$11.99

$

In Stock, only 1 left!

0

50

Honda 90951-ZV7-010

SEE PART DETAILS - PRI; NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

51

Honda 91256-ZV5-003

SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI)

$10.99

$

Usually ships in 3-6 days

0

52

Honda 91352-ZV5-000

O-RING (15.54X2.26)

$2.49

$

Usually ships in 3-6 days

0

53

Honda 91560-ZV5-000

COLLAR, STEERING ROD

$4.49

$

Usually ships in 3-6 days

0

54

Honda 94001-12490-0S

NUT, HEX. (12MM)

Note: Use from Frame SN 1101357. Use up to Frame SN 1101343.

$2.99

$

Usually ships in 3-6 days

0

55

Honda 94305-25203

PIN, SPRING (2.5X20)

$1.99

$

Usually ships in 3-6 days

0

56

Honda 95801-08035-09

BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0

57

Honda 04606-ZW1-000

STOPPER KIT, TILT

Note: Use up to Frame SN 1110051.

$188.99

$

Usually ships in 3-6 days

0

58

Honda 06503-ZW5-000

SEE PART DETAILS - PRI; ROD, ADJUSTING

Note: (Optional)

$43.99

$

Usually ships in 3-6 days

0
