BF115 DK1 LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

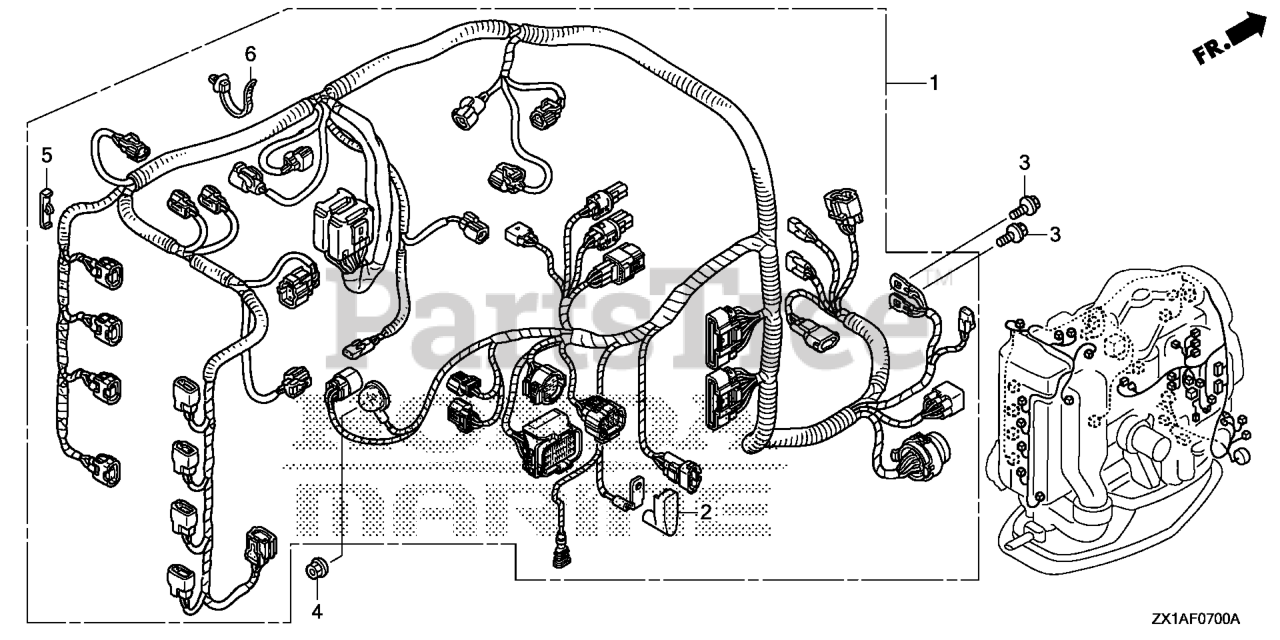

WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZX1-000

WIRE HARNESS ASSY., MAIN

Note: Use up to Frame SN 1101343.

$1135.99

$

Usually ships in 3-6 days

0

1

Honda 32100-ZX1-020

WIRE HARNESS, MAIN

Note: Use from Frame SN 1102042.

$1112.99

$

Usually ships in 3-6 days

0

2

Honda 32414-ZY6-300

COVER B, TERMINAL (L)

$6.49

$

Usually ships in 3-6 days

0

3

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

4

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

5

Honda 90653-ZY3-003

CLIP, WIRE HARNESS

$3.49

$

Usually ships in 3-6 days

0

6

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0
